Part Number: #47438
Sloan Model Number: EFX-250-BAT-ISM-SF-0.5GPM-MLM-FCT
Sloan Code Number: 3324468
Manufacturer: Sloan

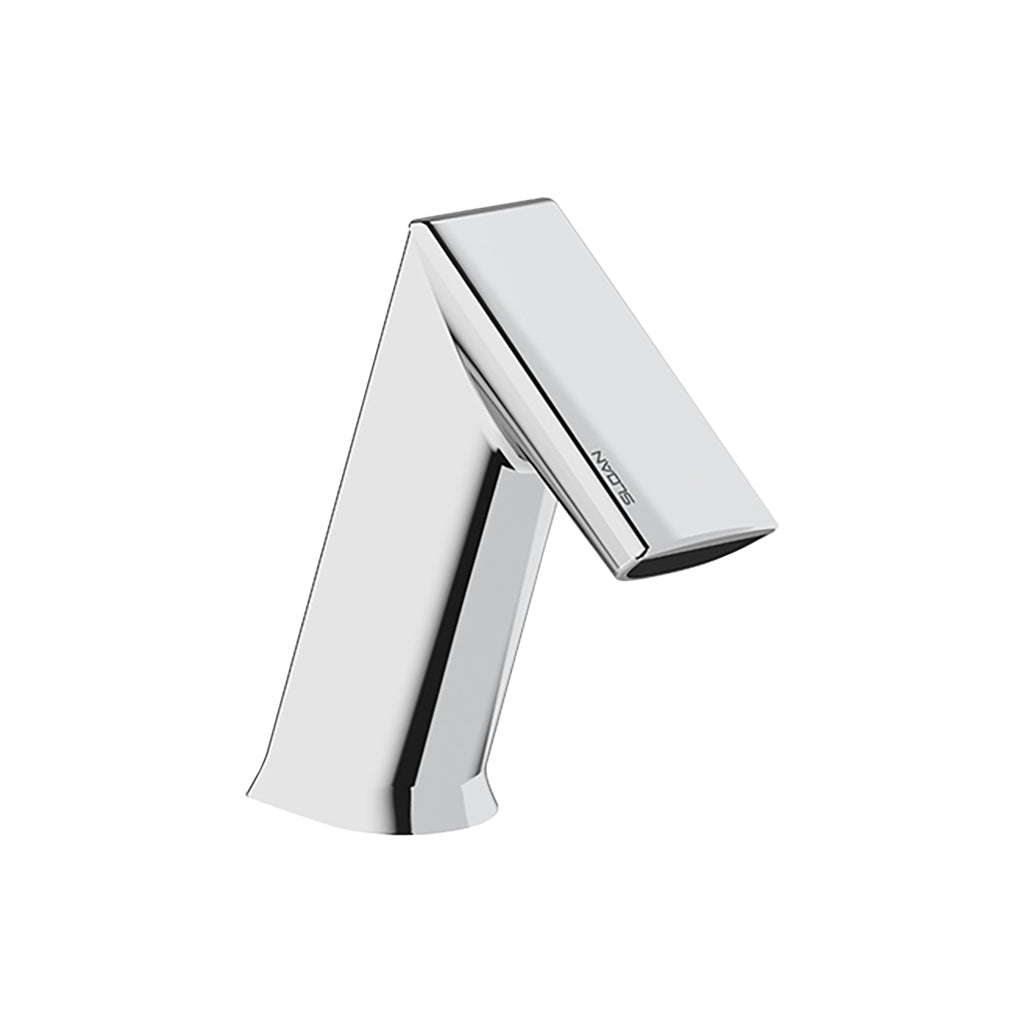

This 0.5 GPM mid profile deck mounted BASYS faucet is from Sloan. The faucet is battery powered. It has a multi-laminar spray type. Activated via the infrared sensor in the unit. Faucet has a brushed stainless steel finish. Does not have a trim plate. Sloan model number EFX-250-BAT-ISM-SF-0.5GPM-MLM-FCT, code number 3324468.
Specifications:
• Flow Rate: 0.5 GPM
• Spray Type: Multi-Laminar
• Sensor Type: Infrared
• Mounting Type: Single Hole
• Trim Plate: None
• Power Supply: Battery
• Temperature Mixer: Integrated Side Mixer
• Finish: Brushed Stainless Steel
• Factory Default Timeout: 10 seconds
• Factory Default Gallons per Cycle: 0.083
Features:
• ADA Compliant
• One tool service
• All wetted components to be stainless steel, engineered thermoplastic, EPDM, and copper or copper alloy
• Solenoid housed in removable carrier that includes supply strainer
• Integral water supply shut off
• Supply strainer serviceable from above deck
• Vandal resistant spray insert, key housed inside faucet body
• All electronics sealed to IP-67
• Gold plated electrical contacts
• Above deck individual diagnostic indicators for battery life, solenoid condition, and power-up mode
• Flexible, high pressure supply hose, 3/8” compression connections
• Bi-stable magnetic solenoid
• Four (4) "AA" alkaline batteries
• Double infrared sensors with automatic setting feature
• Line purge mode, eliminates stagnant water
• Adjustable time-outs
• Includes all mounting hardware
Compliances & Certifications:
ADA Compliant, ASME A112.18.1 Compliant, BREEAM Materials Credit, BREEAM Water Credit, CalGreen Compliant, CEC Compliant, EPD, Green Globes Credit, Green Globes Water, HPD, IAPMO, LEED Credit, LEED HPD, NYC604.4, Proposition 65, Satisfies LEED Credits, TAS, UPC Low Lead Certified, WELL Building Standard
Resources:
• Sloan 3324468 Spec Sheet
