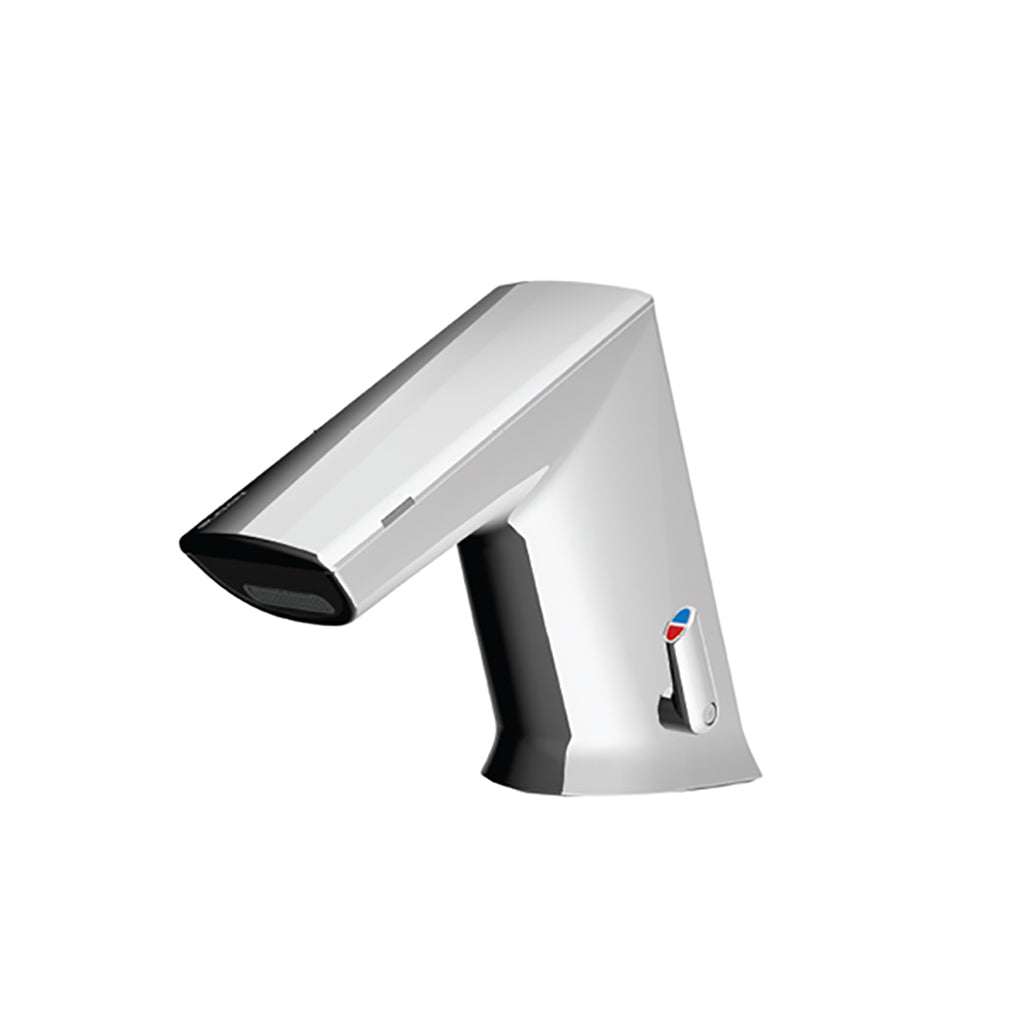

Low Profile BASYS Faucet 0.5 GPM with Mixer (Box Transformer)

Part Number: #21685
Sloan Model Number: EFX-300-BOX-ISM-CP-0.5GPM-MLM-FCT
Sloan Code Number: 3324452
Manufacturer: Sloan

This low profile BASYS sensor faucet with side mixer is from Sloan. It has a flow rate of 0.5 GPM and a multi-laminar spray. This faucet has single hole mounting and is deck-mounted. It utilizes an infrared sensor to activate. The unit has a polished chrome finish on the cast brass body. Faucet is hardwired with a box transformer below deck. Sloan model number EFX-300-BOX-ISM-CP-0.5GPM-MLM-FCT, code number 3324452.

Specifications:
• Flow Rate: 0.5 GPM
• Spray Type: Multi-Laminar
• Sensor Type: Infrared
• Mounting Type: Single Hole
• Trim Plate: None
• Power Supply: Box Transformer
• Temperature Mixer: Integrated Side Mixer
• Finish: Polished Chrome
• Factory Default Timeout: 10 seconds
• Factory Default Gallons per Cycle: 0.083

Features:
• One tool service
• Solenoid housed in removable carrier that includes supply strainer
• Integral water supply shut off
• Vandal resistant spray insert, key housed inside faucet body
• All electronics sealed to IP-67
• Gold plated electrical contacts
• Above deck individual diagnostic indicators for battery life, solenoid condition, and power-up mode
• Flexible, high pressure supply hose, 3/8” compression connections
• Bi-stable magnetic solenoid
• Four (4) "AA" alkaline batteries
• Double infrared sensors with automatic setting feature
• Includes all mounting hardware
• Standard Bowed Crown

Compliancies & Certifications:
ADA Compliant, ASME A112.18.1 Compliant, CalGreen Compliant, CEC Compliant, cUPC Certified, cUPC Low Lead Compliant, EPD, HPD, IAPMO, NYC604.4, Proposition 65, Satisfies LEED Credits, TAS, UPC Certified, UPC Low Lead Compliant, WaterSense Listed, WELL Building Standard

Resources:
• Sloan 3324452 BASYS Faucet Spec Sheet
