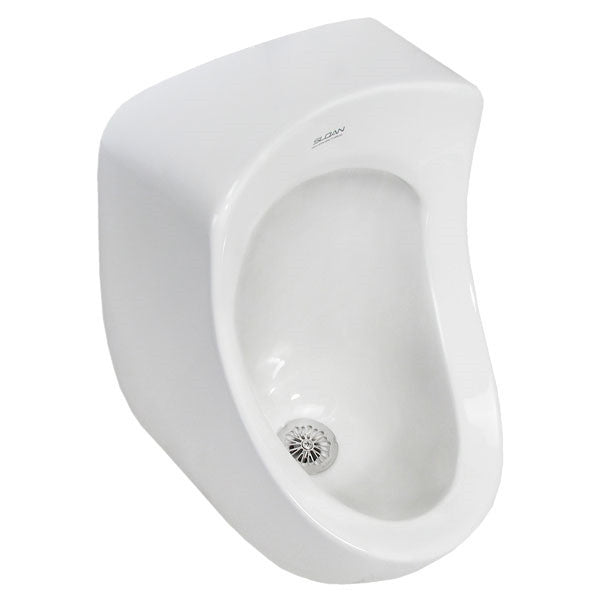

Rear Spud HEU Urinal - 0.125-1.0 GPF



Part Number: #86382
Mfg No.: SU7019A
Mfg: Sloan Valve Co


3/4" Rear Spud High Efficiency Urinal - 0.125-1.0 GPF

• Maximizes and complements Sloan flushometers
• The small size and clean lines allow it to fit a large variety of applications and restrooms
• Thorough washdown flushing action
• Vandal resistant stainless steel strainer included
• IAPMO certified to meet or exceed ASME A112.19.2 standards
• Meets ADA guidelines and ANSI A117.1 requirements when installed accordingly

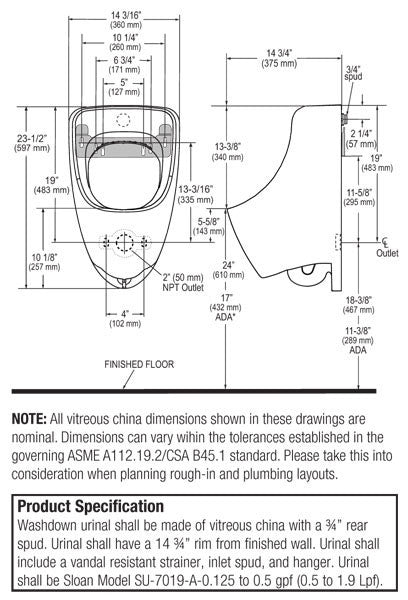

Click Here to view SU-7019-A Spec Sheet
