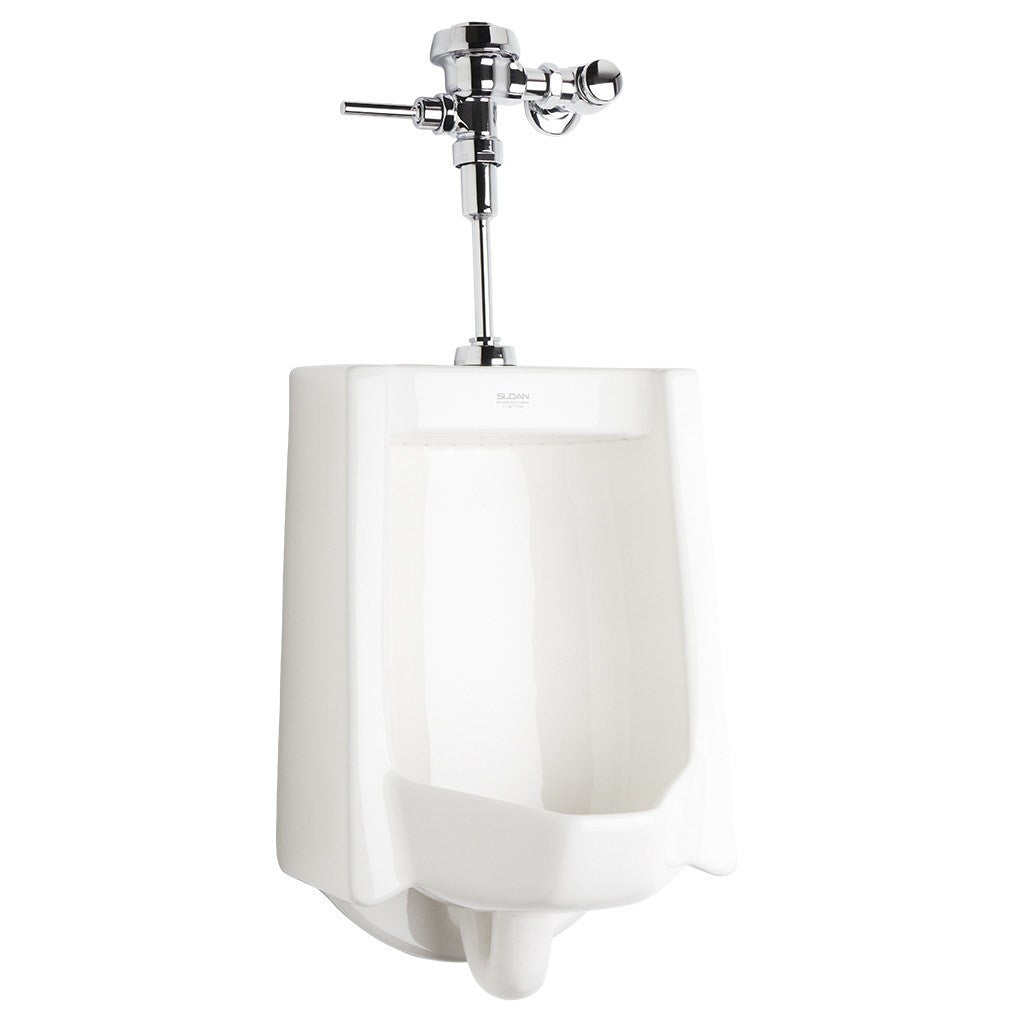

Urinal w/ Royal Flushometer - .125 GPF
Part Number: #08938
Sloan Model Number: WEUS-1000.1001
Sloan Code Number: 10001001
Manufacturer: Sloan
Sloan introduces the next generation of water-efficient products designed for reducing water usage even further. Sloan HEU Systems combine the performance of both fixture and flush valve to ensure a true water-efficient system.
Specifications
Quiet, Exposed, Diaphragm Type, Chrome Plated Urinal flushometer and Vitreous China Urinal with the following features:
Flushometer:
• PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
• ADA compliant metal oscillating Non-Hold-Open Handle with Triple Seal Handle Packing
• 3/4” I.P.S. Screwdriver Bak-chek® Angle Stop
• Free spinning Vandal Resistant Stop cap
• Adjustable Tailpiece
• High Back Pressure Vacuum Breaker Flush connection with One-piece Bottom Hex coupling Nut
• Spud Coupling and Flange for 3/4” Top Spud
• Sweat Solder Adapter w/cover Tube and cast Wall Flange with Set Screw
• High copper, low zinc brass castings for dezincification resistance
• Non-Hold-Open Handle, Fixed Metering Bypass and no external volume adjustment to ensure water conservation
• Flush accuracy controlled by CID® technology
• Diaphragm, Handle Packing, Stop Seat and Vacuum Breaker molded from PERMEX® rubber compound for chloramine resistance
• Valve Body, Cover, Tailpiece and Control Stop shall be in conformance with ASTM Alloy classification for Semi-Red Brass. Valve shall be in compliance to the applicable sections of ASSE 1037/ ASME A112.19.2/cSA B45.1
Urinal:
• Wall Hung Vitreous China
• Washdown flushing action
• 3/4” I.P.S. Top Spud inlet
• 2” NPT outlet flange
• All mounting hardware included
• Integral flushing rim
• 100% factory flush tested
• Compliant to the applicable sections of ASME A112.19.2/cSA B45.1
• Compatible with Jay R. Smith carrier 0636 or 0637
• Compliant with Buy American Act when purchased as a combination
View more Sloan Urinal options on our Urinals page and remember, if you don’t see the exact model you want or need online, you can always call to order.
