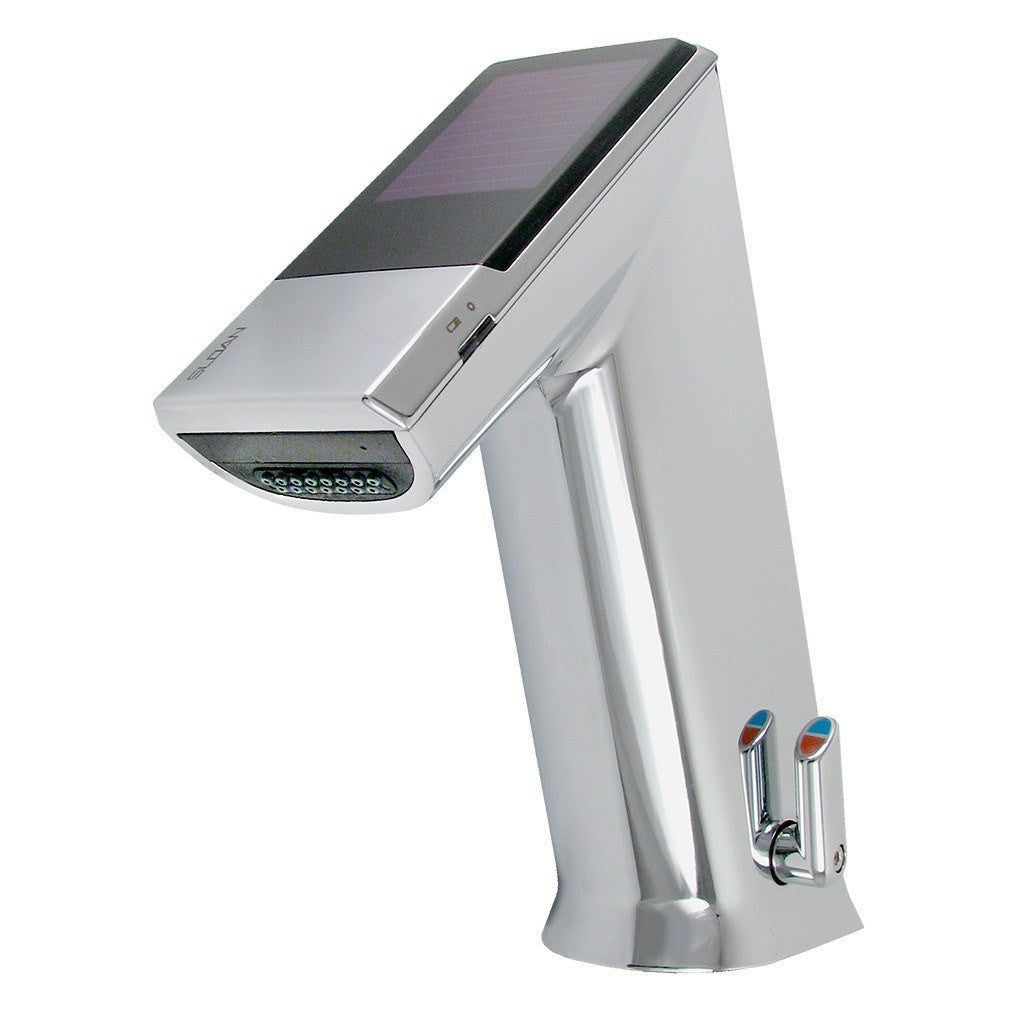

Mid Profile Solar BASYS Faucet w/ Mixer - 1.5 GPM



Part Number: #83845
Mfg No.: EFX275.502.0000
Mfg: Sloan Valve Co


*All Components Serviceable Above Deck* *AB 1953 Compliance (Lead Free)*

Solar Powered, Sensor Activated, Electronic, Chrome Plated Die Cast Body, Hand Washing Faucet with the following features:
• All serviceable components above deck
• Solar power harvesting options that enables the unit to be powered by harvesting energy from both the sun and artificial light sources.
• One tool service
• All wetted components to be stainless steel, engineered thermo plastic, EPDM, and copper or copper alloy
• Solenoid housed in removable carrier that includes supply strainer
• Integral water supply shut off
• Supply strainer serviceable from above deck
• Vandal resistant spray insert, key housed inside faucet body
• All electronics sealed to IP-67
• Gold plated electrical contacts
• Above deck individual diagnostic indicators for battery life, solenoid condition, and power up mode

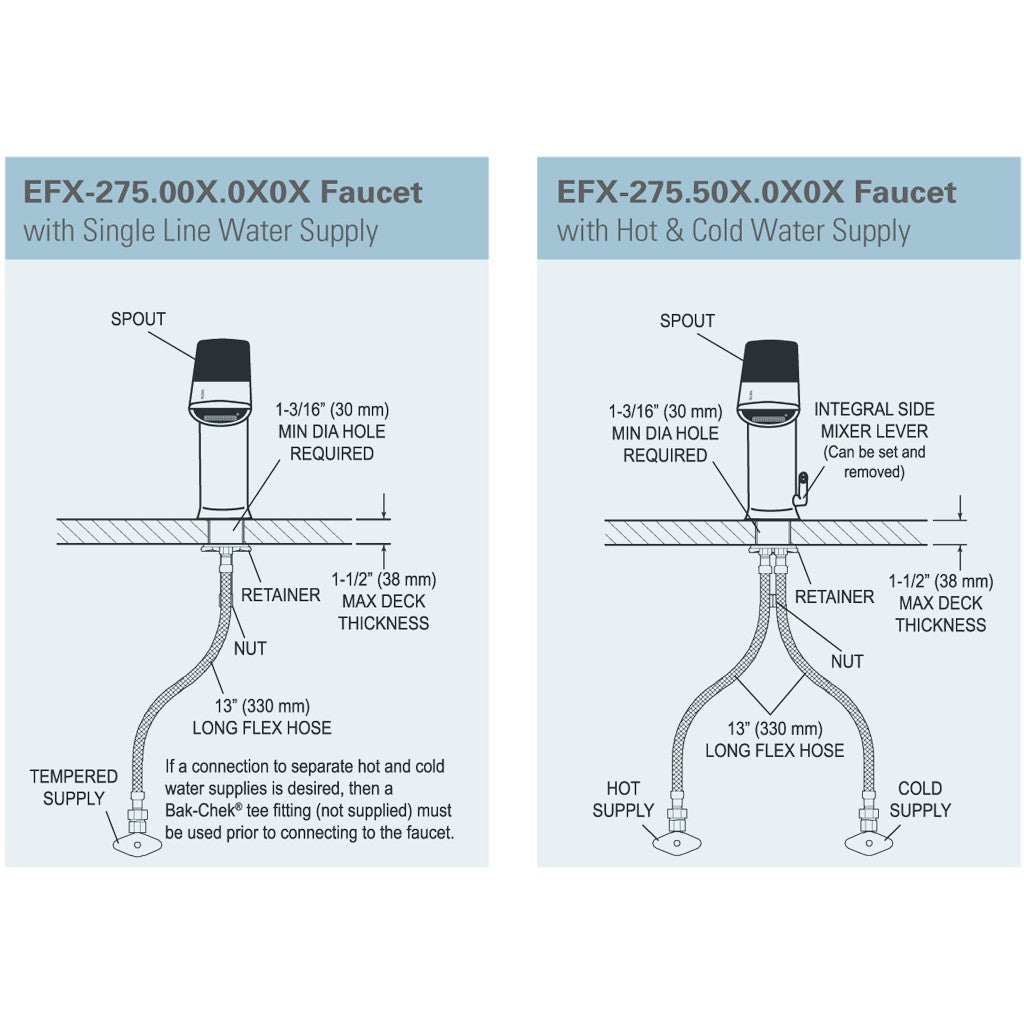

• Flexible, high pressure supply hoses, 3/8” compression connections
• Bi-stable magnetic solenoid
• Four (4) “AA” alkaline batteries
• Double infrared sensors with automatic setting feature
• Single hole installation
• Includes all mounting hardware
• Line purge mode, eliminates stagnant water
• Adjustable time-outs
• High temperature auto shut-off (LCD models)
• Faucet can be configured to add LCD display
• LCD display of water temperature and scrub time
• Mechanical mixing, integral to spout, optional

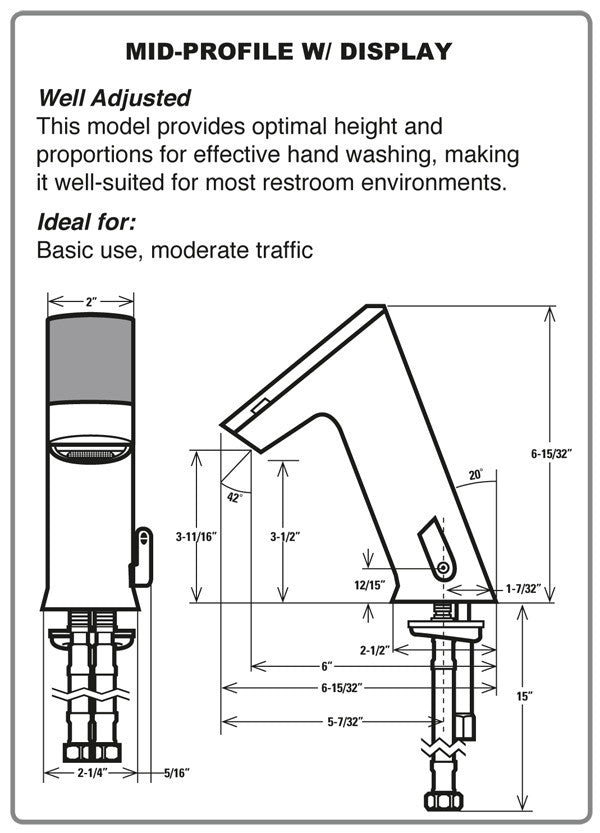

• Body Type: Mid Profile
• Sensing: Active Infrared (AIR)
• Solar Crown
• 1.5 GPM Laminar Stream
