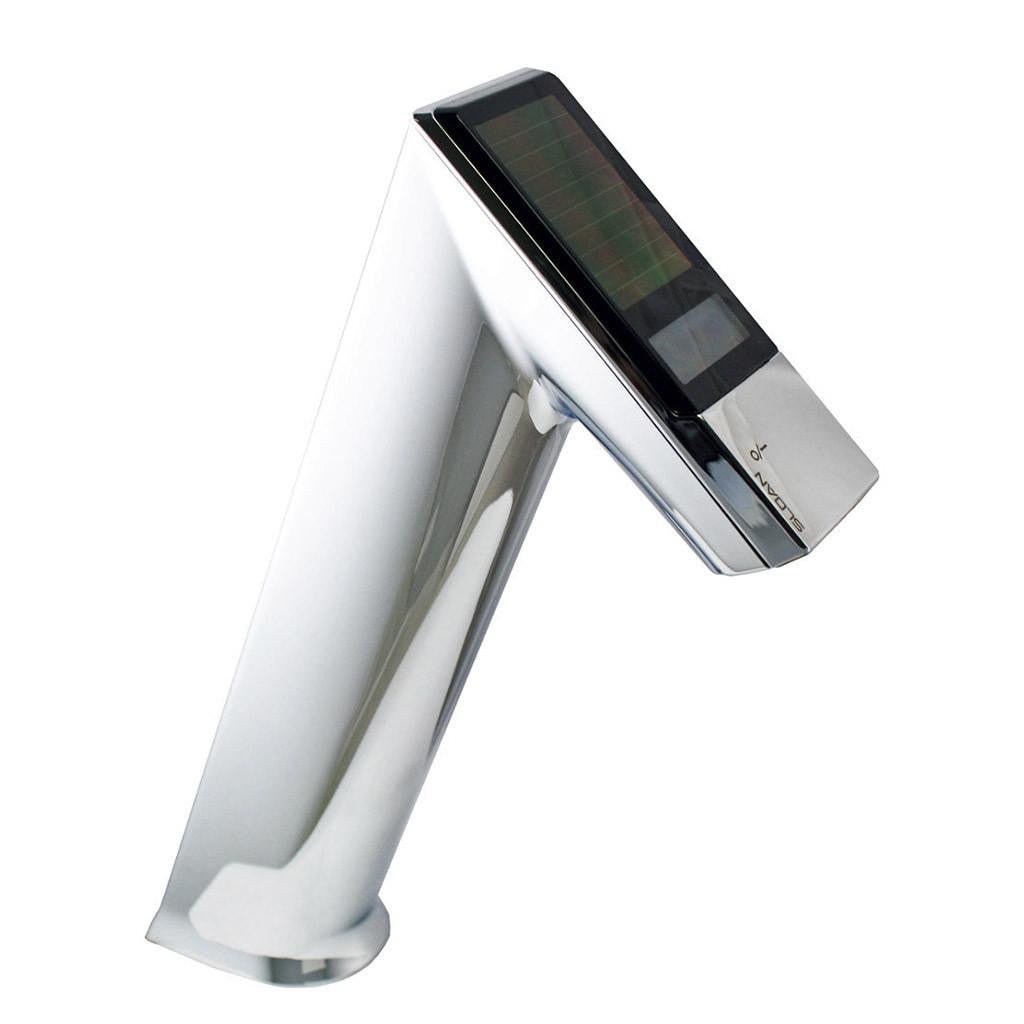

High Profile BASYS Faucet 1.5 GPM with Mixer and Display (Solar)

Part Number: #85531
Manufacturer Number: EFX-177-8-SOL-ISM-CP-1.5GPM-IR-
Manufacturer Code Number: 3324242
Manufacturer: Sloan

8" Trim Plate, Solar Power Supply, Integrated Side Mixer, Polished Chrome Finish, 1.5 gpm, Aerated (installed) or Laminar (in box) Spray, Infrared Sensor, BASYS® Solar-Powered Deck-Mounted High Body Guided Handwashing Display Faucet.

Specifications:
• Flow Rate: 1.5 gpm (6 Lpm) (1.5GPM)
• Spray Type: Aerated (installed) or Laminar (in box) () Sensor Type: Infrared (IR)
• Mounting Type: Single Hole ()
• Trim Plate: 8" (203mm) (8)
• Power Supply: Solar (SOL)
• Temperature Mixer: Integrated Side Mixer (ISM) Finish: Polished Chrome (CP)
• Factory Default Timeout: 60s
• Factory Default GPC: 0.75
• Battery Life: 3 years 8,000 cycles/month
• Optional power harvesting significantly extends service life
• Self-Adjustment Range: 0" (0mm) Sensor Range: 0" (0mm)
• Timeout Adjustment Settings: 60s

Features:
Commercial Grade, ADA Compliant, Electronic, Sensor-Activated, Die- CastMetal Hand Washing Faucet with the following features:
• One tool service
• All wetted components to be stainless steel, engineered thermoplastic, EPDM, and copper or copper alloy
• Solenoid housed in removable carrier that includes supply strainer Integral water supply shut off
• Supply strainer serviceable from above deck
• Vandal resistant spray insert, key housed inside faucet body
• All electronics sealed to IP-67
• Gold plated electrical contacts
• Above deck individual diagnostic indicators for battery life, solenoid condition, and power up mode

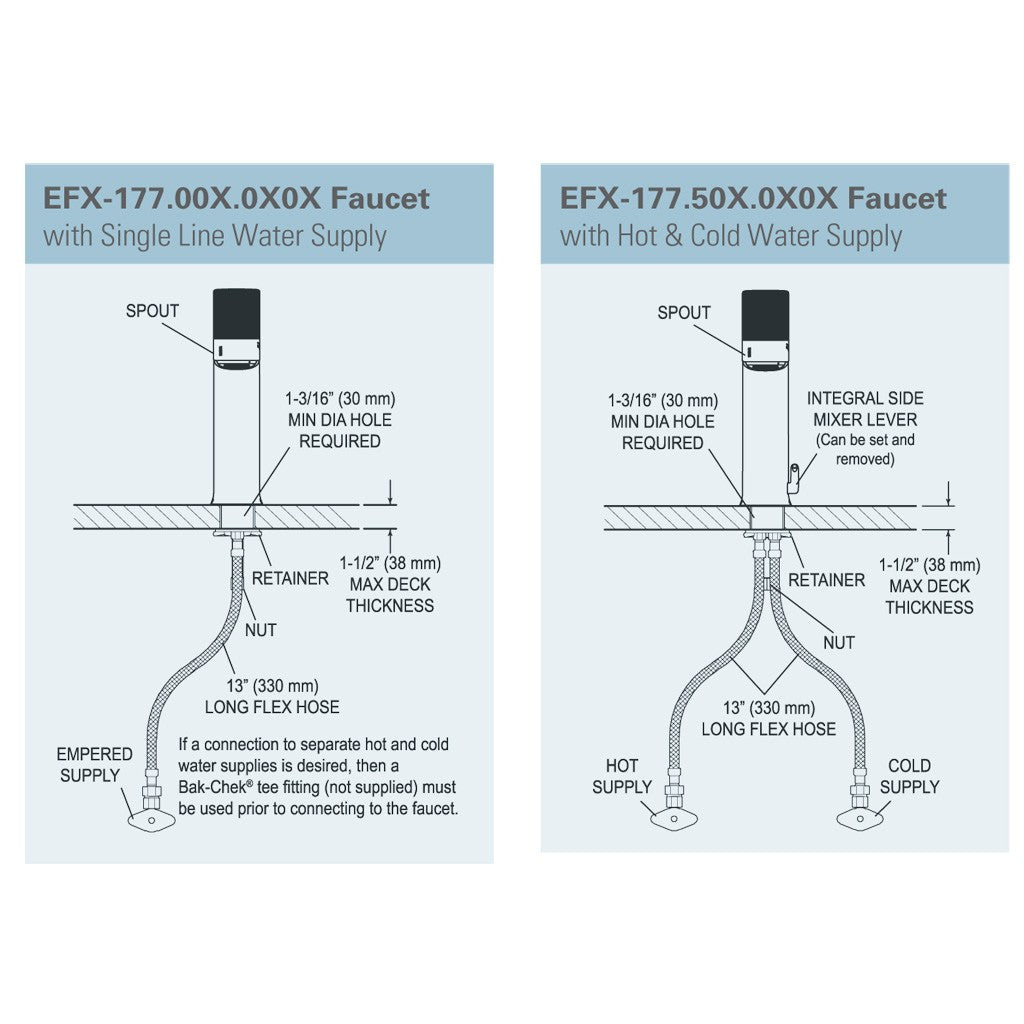

• Flexible, high pressure supply hoses, 3/8” compression connections Bi-stable magnetic solenoid
• Four (4) “AA” alkaline batteries
• Double infrared sensors with automatic setting feature Includes all mounting hardware
• Line purge mode, eliminates stagnant water
• Adjustable time-outs

Compliance’s & Certifications:
ADA Compliant, ASME A112.18.1 Compliant, CEC Compliant, cUPC Certified, cUPC Low Lead Compliant, Proposition 65, TAS, UPC Certified, UPC Low Lead Compliant

Resources:
• View Sloan 3324242 Spec Sheet
