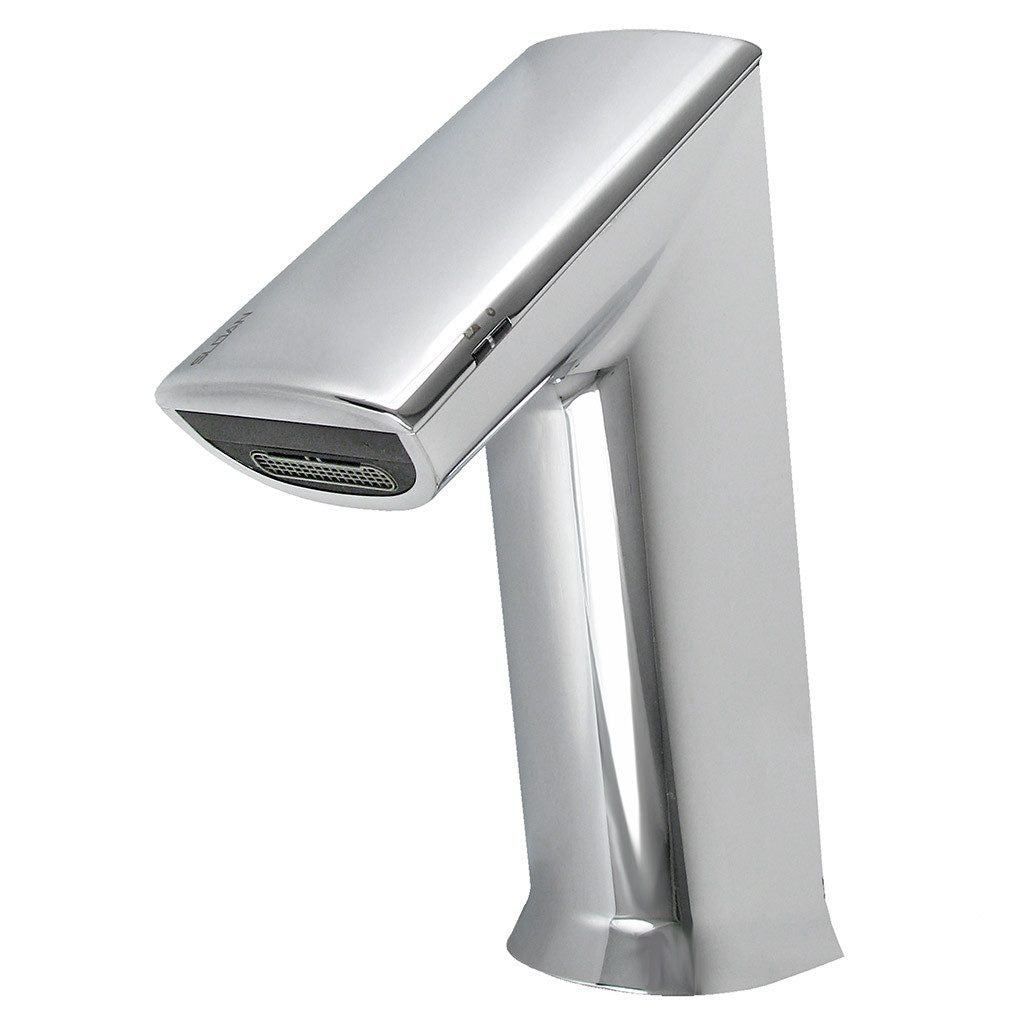

Mid Profile BASYS Faucet 0.5 GPM Single Supply (Battery Powered)

$582.40

84867

Part Number: #84867
Manufacturer Number: EFX 177-502-0200 CP
Manufacturer Code Number: 3324005
Manufacturer: Sloan


8" Trim Plate, Solar Power Supply, Integrated Side Mixer, Polished Chrome Finish, 1.5 gpm, Aerated (installed) or Laminar (in box) Spray, Infrared Sensor, BASYS® Solar-Powered Deck-Mounted High Body Guided Handwashing Display Faucet.*All Components Serviceable Above Deck* *AB 1953 Compliance (Lead Free)*



Specifications:
• Flow Rate: 0.5 gpm (2 Lpm) (0.5GPM)
• Spray Type: Multi-Laminar (MLM)
• Sensor Type: Infrared (IR)
• Mounting Type: Single Hole ()
• Power Supply: Battery (BAT)
• Temperature Mixer: Mixer Not Included ()
• Finish: Polished Chrome (CP)
• Factory Default Timeout: 10s
• Factory Default GPC: 0.083
• Battery Life: 3 years 8,000 cycles/month
• Optional power harvesting significantly extends service life
• Self-Adjustment Range: 0" (0mm) Sensor Range: 0" (0mm)
• Timeout Adjustment Settings: 10s



Features:
Commercial Grade, ADA Compliant, Electronic, Sensor-Activated, Die- CastMetal Hand Washing Faucet with the following features:
• One tool service
• All wetted components to be stainless steel, engineered thermoplastic, EPDM, and copper or copper alloy
• Solenoid housed in removable carrier that includes supply strainer Integral water supply shut off
• Supply strainer serviceable from above deck
• Vandal resistant spray insert, key housed inside faucet body
• All electronics sealed to IP-67
• Gold plated electrical contacts
• Above deck individual diagnostic indicators for battery life, solenoid condition, and power up mode
• Flexible, high pressure supply hoses, 3/8” compression connections Bi-stable magnetic solenoid
• Four (4) “AA” alkaline batteries
• Double infrared sensors with automatic setting feature
• Includes all mounting hardware
• Line purge mode, eliminates stagnant water
• Adjustable time-outs
• Standard Bowed Crown


Compliances & Certifications:
ADA Compliant, ASME A112.18.1 Compliant, BREEAM Materials Credit, BREEAM Water Credit, CalGreen Compliant, CEC Compliant, cUPC Certified, cUPC Low Lead Compliant, EPD, Green Globes Materials & Resources Credit, Green Globes Water Credit, HPD, LEED Materials & Resources EPD Credit, LEED Materials & Resources HPD Credit, NYC604.4, Proposition 65, Satisfies LEED Credits, TAS, UPC Certified, UPC Low Lead Compliant



Resources:
View Sloan 3324005 Spec Sheet
