Part Number: #47332
Sloan Model Number: EAF-100-PLG-ISM-CP-0.35GPM-MLM-IQ-FCT
Sloan Code Number: 3335157
Manufacturer: Sloan

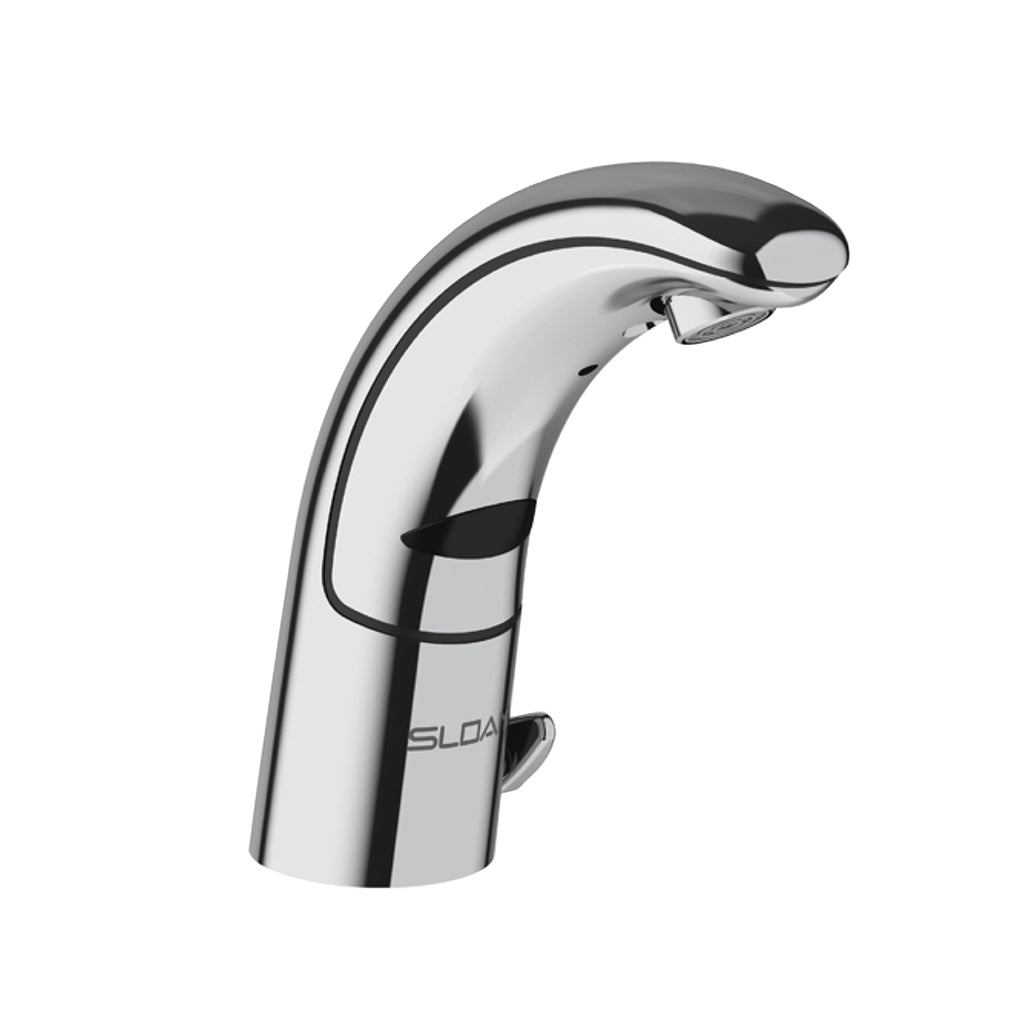

This plug-in power adapter faucet is from Sloan. It has a multi-laminar spray type with a 0.35 GPM flow rate. Faucet has a single hole mounting type and is deck mounted. It utilizes an infrared sensor to activate. The unit has a polished chrome finish on the cast brass body. Faucet has an integral spout, and an integrated side temperature mixer. Sloan model number EAF-100-PLG-ISM-CP-0.35GPM-MLM-IQ-FCT, code number 3335157.
Specifications:
• Flow Rate: 0.35 GPM
• Spray Type: Multi-Laminar
• Sensor Type: Infrared
• Mounting Type: Single Hole
• Power Supply: Plug Adapter
• Temperature Mixer: Integrated Side Mixer
• Finish: Polished Chrome
• Factory Default Timeout: 30 seconds
• Factory Default Gallons per Cycle: 0.175
Features:
• Double Infrared Sensors with Automatic Setup and Indicator Light
• Automatic Self-adapting Sensor Technology
• Magnetic Solenoid Valve
• Water Supply Connection with Flexible High-pressure Hose and Strainer
• Appropriate Mounting Hardware included
• Optional 24 Hour Sentinel Activation
• Includes EAF44 Power Splitter
• Includes 120V plug-in transformer
• Integrated Side Mixer included in spout for temperature setting and adjustment. Also includes cap to cover handle if removed.
Compliances & Certifications:
ADA Compliant, ASME A112.18.1 Compliant, BREEAM Water Credit, CalGreen Compliant, CEC Compliant, EPD, Green Globes Water, HPD, LEED Water, NYC604.4, Proposition 65, Satisfies LEED Credits, TAS, WELL Building Standard
Resources:
• Sloan 3335157 Spec Sheet
