Part Number: #48469
Sloan Model Number: EAF-275-SOL-ISM-CP-0.5GPM-AER-IQ-EXT-FCT
Sloan Code Number: 3335047
Manufacturer: Sloan

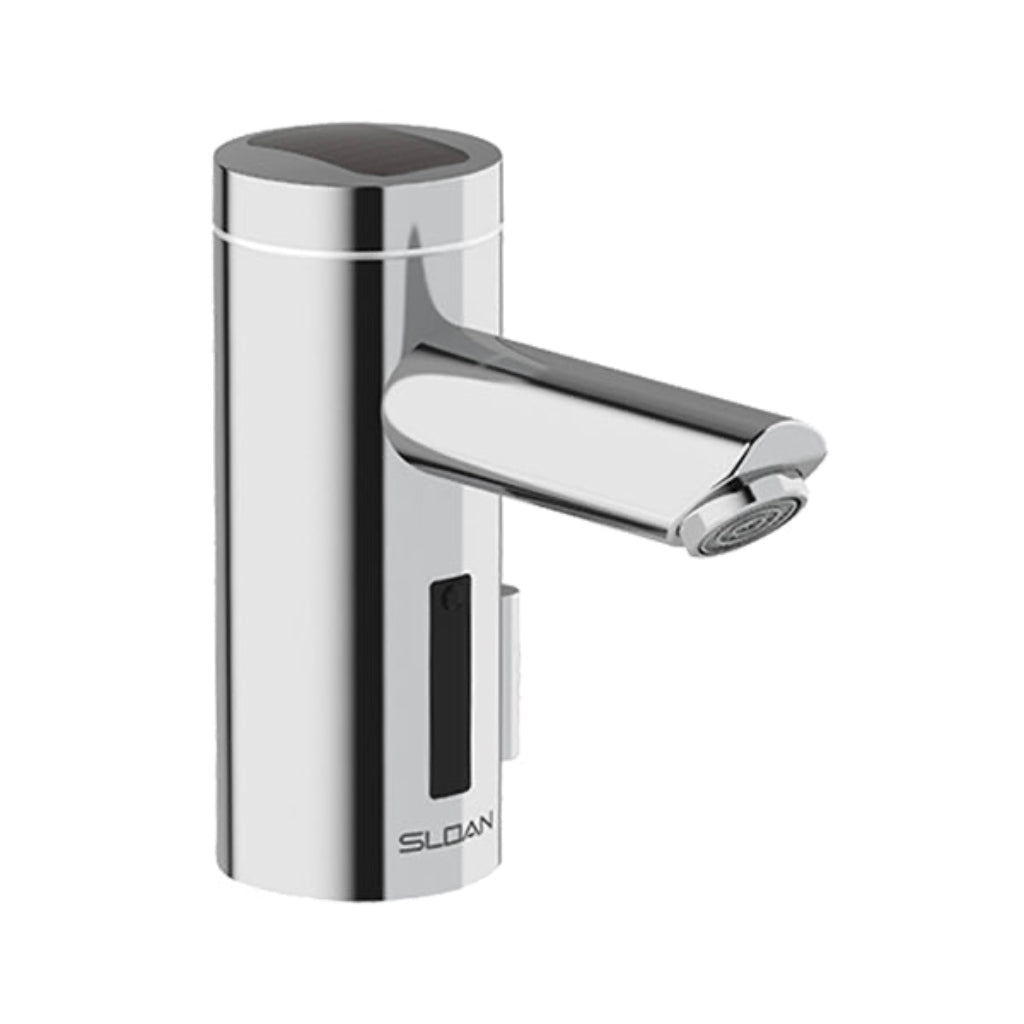

This solar powered Optima mid-body faucet is from Sloan. It has an aerated spray type with a 0.5 GPM flow rate. Faucet has a single hole mounting type and is deck mounted. It utilizes an infrared sensor to activate. The unit has a polished chrome finish on the cast brass body. Faucet features an integrated side temperature mixer. Includes 2 CRP-2 Lithium batteries. Sloan model number EAF-275-SOL-ISM-CP-0.5GPM-AER-IQ-EXT-FCT, code number 3335047.
Specifications:
• Flow Rate: 0.5 GPM
• Spray Type: Aerated
• Sensor Type: Infrared
• Mounting Type: Single Hole
• Power Supply: Solar
• Temperature Mixer: Integrated Side Mixer
• Finish: Polished Chrome
• Factory Default Timeout: 30 seconds
• Factory Default Gallons per Cycle: 0.25
Features:
• Double Infrared Sensors with Automatic Setting Feature
• Automatic Self-adapting Sensor Technology
• Magnetic Solenoid Valve
• Water Supply Connection with Flexible High-pressure Hose and Strainer
• Appropriate Mounting Hardware included
• Includes 6 VDC Lithium Battery Back-up Power Source
• Integrated Side Mixer included in spout for temperature setting and adjustment. Also includes cap to cover handle if removed.
Compliances & Certifications:
ASME A112.18.1 Compliant, BREEAM Materials Credit, BREEAM Water Credit, CEC Compliant, EPD, Green Globes Credit, Green Globes Water, HPD, IAPMO, LEED Credit, LEED HPD, NSF-61/CAN-61, NYC604.4, Proposition 65, Satisfies LEED Credits, TAS, UPC Low Lead Certified, WELL Building Standard
Resources:
• Sloan 3335047 Spec Sheet
