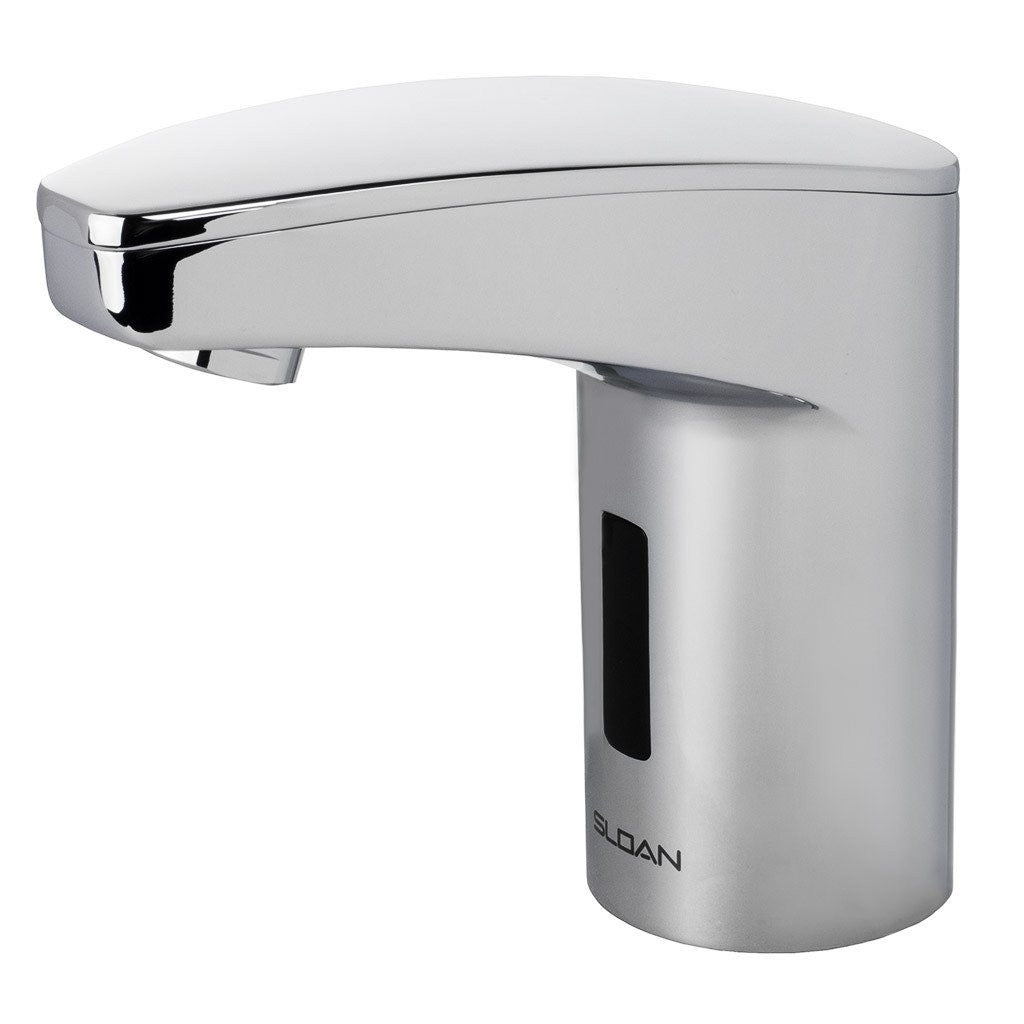

Optima Faucet 0.5 GPM Single Supply (Battery Powered)

Part Number: #86896
Manufacturer Number: EAF-350-BAT-CP-0.5GPM-AER-IR-IQ-FCT
Manufacturer Code Number: 3335110
Manufacturer: Sloan

Battery Power Supply, Mixer Not Included, Polished Chrome Finish, 0.5 gpm, Aerated Spray, Infrared Sensor, Optima® Battery-Powered Deck-Mounted Mid Body Faucet.

Specifications:
• Flow Rate: 0.5 gpm (2 Lpm) (0.5GPM)
• Spray Type: Aerated (AER)
• Sensor Type: Infrared (IR)
• Mounting Type: Single Hole ()
• Power Supply: Battery (BAT)
• Temperature Mixer: Mixer Not Included ()
• Finish: Polished Chrome (CP)
• Factory Default Timeout: 10s
• Factory Default GPC: 0.083
• Battery Life: 3 years 8,000 cycles/month
• Optional power harvesting significantly extends service life
• Self-Adjustment Range: 2 1⁄2" – 7 1⁄2" – 0" (64 – 191 – 0mm)
• Sensor Range: 0" (0mm)
• Timeout Adjustment Settings: 10s

Features:
Commercial Grade, ADA Compliant, Electronic, Sensor-Activated, Cast Brass Hand Washing Faucet with the following features:

• Double Infrared Sensor with Automatic Setting Feature and Microprocessor
• Bi-Stable Magnetic Solenoid Valve (for increased energy savings)
• Adjustable Hot Water Limit Set (with ISM Mixer)
• Water Supply Connection with Flexible High-Pressure Hose and Strainer
• 6V Lithium CR-P2 Commercial Battery included
• IR-Click feature permits activation of continuous run and temporary off modes
• Appropriate Mounting Hardware included
• IQ-Click feature permits activation of continuous run and temporary off modes

Compliances & Certifications:
ADA Compliant, ASME A112.18.1 Compliant, BREEAM Materials Credit, BREEAM Water Credit, CalGreen Compliant, CEC Compliant, cUPC Certified, cUPC Low Lead Compliant, EPD, Green Globes Materials & Resources Credit, Green Globes Water Credit, HPD, LEED Materials & Resources EPD Credit, LEED Materials & Resources HPD Credit, NYC604.4, Proposition 65, Satisfies LEED Credits, TAS, UPC Certified, UPC Low Lead Compliant

Resources
• Sloan Optima 3335110 Faucet Spec Sheet
