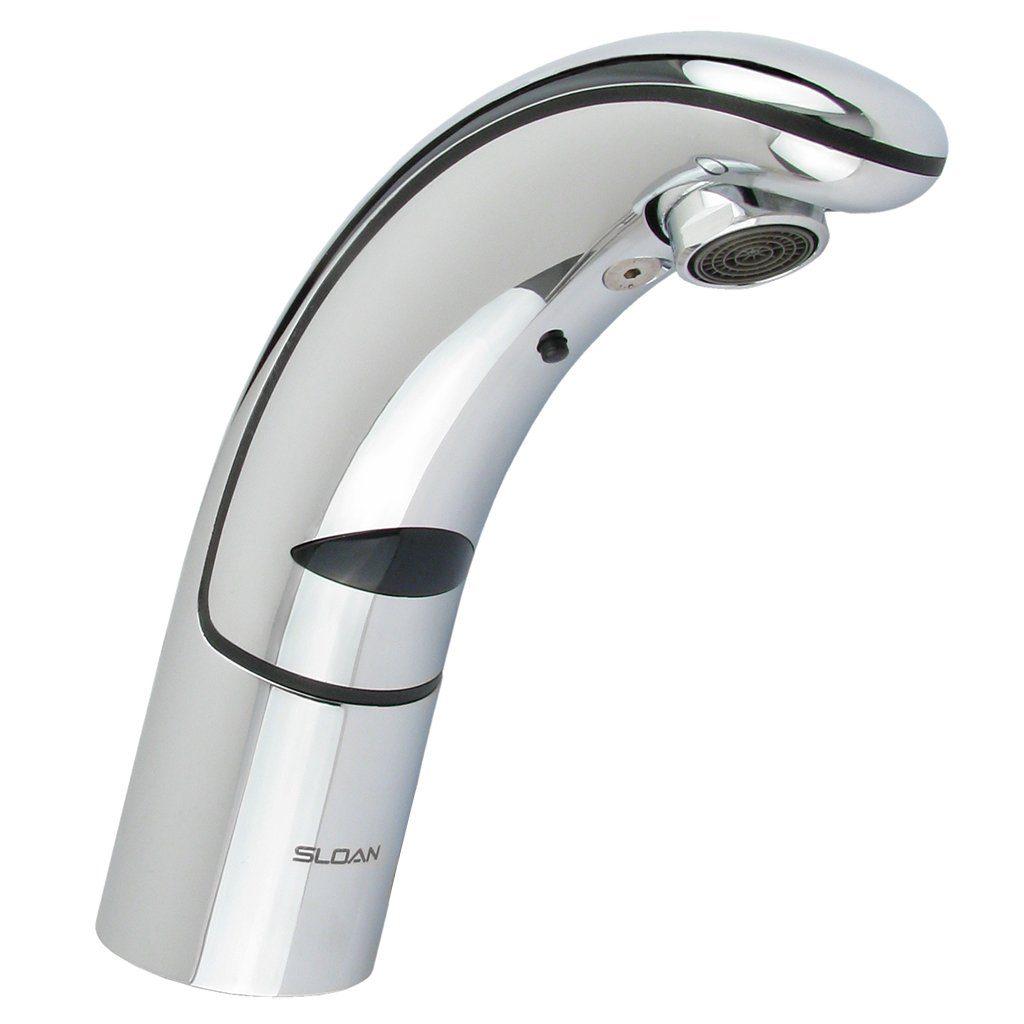

Optima Faucet 1.5 GPM Single Supply (Plug-in Adapter)

$657.70

87160

Part Number: #87160
Manufacturer Number: EAF-100-HLT-CP-1.5GPM-AER-IR-IQ-FCT
Manufacturer Code Number: 3335003
Manufacturer: Sloan



Hardwired Less Transformer Power Supply, Mixer Not Included, Polished Chrome Finish, 1.5 gpm, Aerated Spray, Infrared Sensor, Optima® Hardwired-Powered Deck-Mounted Mid Body Faucet. Single supply line for pre-tempered water.


Specifications:
• Flow Rate: 1.5 gpm (6 Lpm) (1.5GPM)
• Spray Type: Aerated (AER)
• Sensor Type: Infrared (IR)
• Mounting Type: Single Hole ()
• Power Supply: Hardwired Less Transformer (HLT)
• Temperature Mixer: Mixer Not Included ()
• Finish: Polished Chrome (CP)
• Factory Default Timeout: 30s
• Factory Default GPC: 0.75
• Battery Life: 3 years 8,000 cycles/month
• Optional power harvesting significantly extends service life
• Timeout Adjustment Settings: 30s


Features:
Commercial Grade, ADA Compliant, Electronic, Sensor-Activated, Cast Brass Hand Washing Faucet with the following features:
• Double Infrared Sensors with Automatic Setup and Indicator Light Automatic
• Self-adapting Sensor Technology
• Magnetic Solenoid Valve
• Water Supply Connection with Flexible High-pressure Hose and Strainer
• 6 Volt DC Plug-in Adapter (must be ordered separately for Less transformer (-LT) faucets)
• Daisy Chain Electrical Splitter Cable included with Less transformer (-LT) faucets
• Appropriate Mounting Hardware included Optional 24 Hour Sentinel Activation
• IQ-Click feature permits activation of continuous run and temporary off modes
• Includes EAF44 Power Splitter



Compliances & Certifications:
ADA Compliant, ASME A112.18.1 Compliant, CEC Compliant, cUPC Certified, cUPC Low Lead Compliant, Proposition 65, TAS, UPC Certified, UPC Low Lead Compliant


Resources
Sloan Optima 3335003 Faucet Spec Sheet
