Part Number: #49445
Sloan Model Number: EAF-275-SOL-ISM-CP-0.35GPM-MLM-IQ-FCT
Sloan Code Number: 3335150
Manufacturer: Sloan

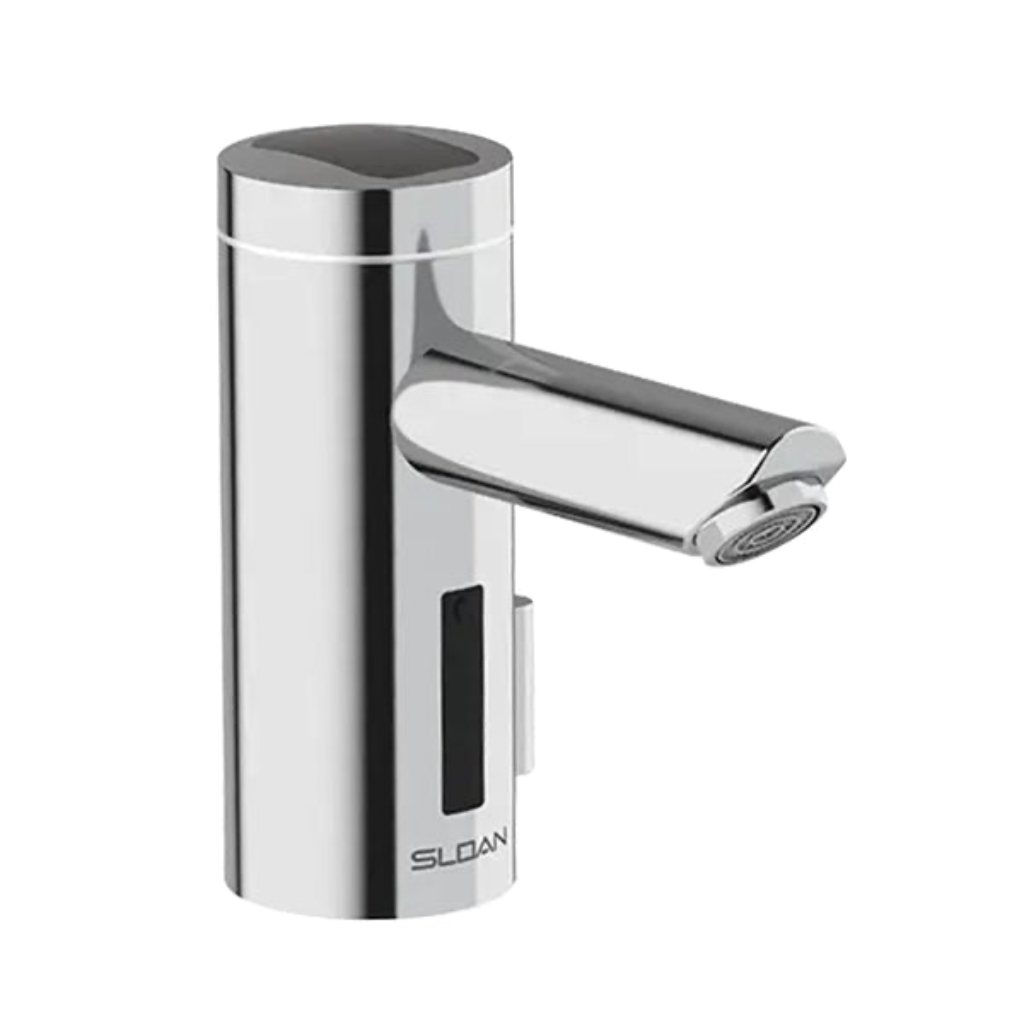

This solar powered Optima mid-body faucet is from Sloan. It has a multi-laminar spray type with a 0.35 GPM flow rate. Faucet has a single hole mounting type and is deck mounted. It utilizes an infrared sensor to activate. The unit has a polished chrome finish on the cast brass body. Faucet features an integrated side temperature mixer. Includes 2 CRP-2 Lithium batteries. Sloan model number EAF-275-SOL-ISM-CP-0.35GPM-MLM-IQ-FCT, code number 3335150.
Specifications:
• Flow Rate: 0.35 GPM
• Spray Type: Multi-Laminar
• Sensor Type: Infrared
• Mounting Type: Single Hole
• Power Supply: Solar
• Temperature Mixer: Integrated Side Mixer
• Finish: Polished Chrome
• Factory Default Timeout: 30 seconds
• Factory Default Gallons per Cycle: 0.175
Features:
• Double Infrared Sensors with Automatic Setting Feature
• Automatic Self-adapting Sensor Technology
• Solar Powered
• Magnetic Solenoid Valve
• Water Supply Connection with Flexible High-pressure Hose and Strainer
• Appropriate Mounting Hardware included
• Includes 6 VDC Lithium Battery Back-up Power Source
• Integrated Side Mixer included in spout for temperature setting and adjustment. Also includes cap to cover handle if removed.
Compliances & Certifications:
ADA Compliant, ASME A112.18.1 Compliant, BREEAM Materials Credit, BREEAM Water Credit, CalGreen Compliant, CEC Compliant, EPD, Green Globes Credit, Green Globes Water, HPD, LEED Credit, LEED HPD, LEED Water, NSF-61/CAN-61, NYC604.4, Proposition 65, Satisfies LEED Credits, TAS, WELL Building Standard
Resources:
• Sloan 3335150 Spec Sheet
