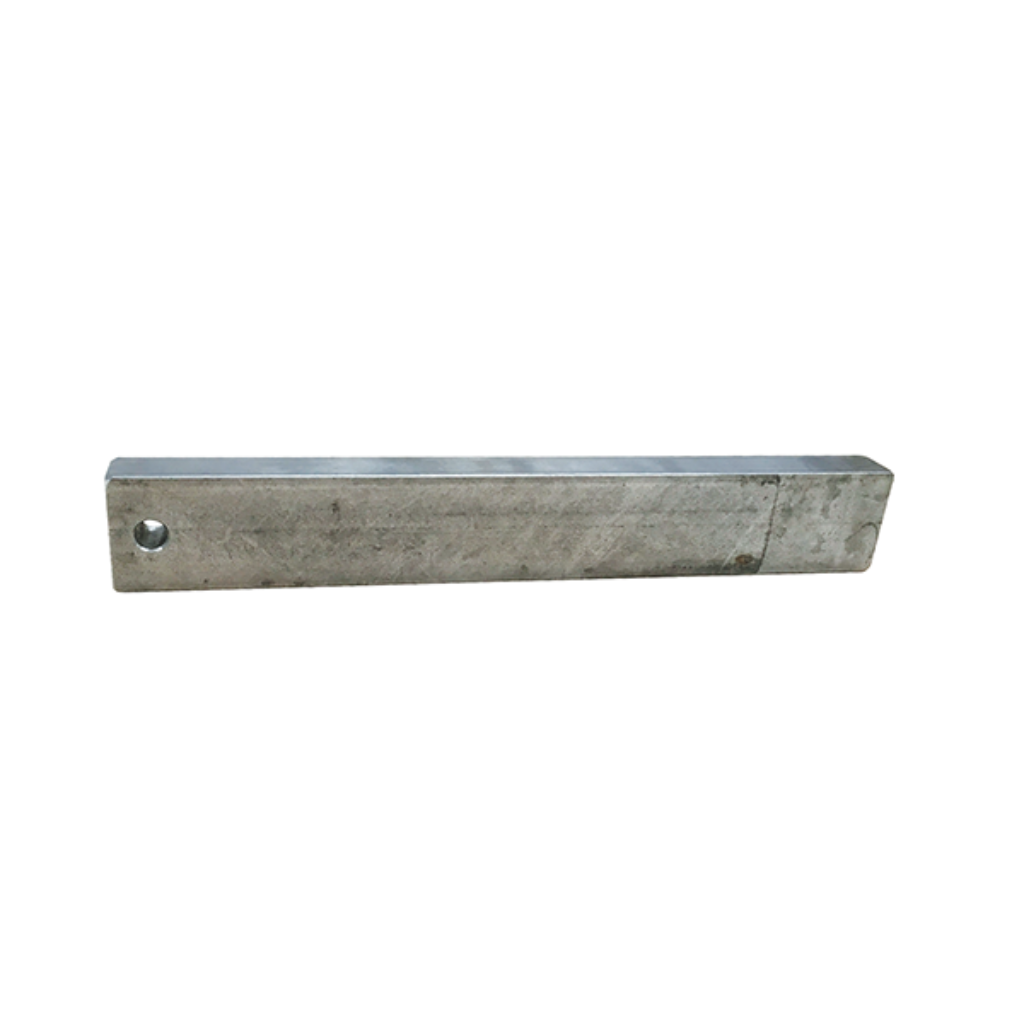

Sloan H-530 Tailpiece Removal Bar

$27.11

38915

Part Number: #38915
Sloan Model Number: H-530
Sloan Code Number: 0334014
Manufacturer: Sloan

This tailpiece removal bar is from Sloan. It is a tool that is used to remove tailpieces from flushometers. Adjustable and ground joint tailpieces are assembled into the valve body using a pipe thread. Significant force is used to drive the tailpiece into the valve body. This can make removing an old tailpiece difficult. Using this tool will help in the removal of the tailpiece. Sloan model number H-730-A-W, code number 0388012.

How to remove a tailpiece:
Simply remove the flushometer cover and interior parts. Then secure the tailpiece removal bar vertically in a vice. Place the flushometer tailpiece over the bar. The cast lugs inside the tailpiece will catch on the bar. Insert a length of 3/4-inch pipe into the barrel of the valve body. Then unscrew the tailpiece from the valve body.
