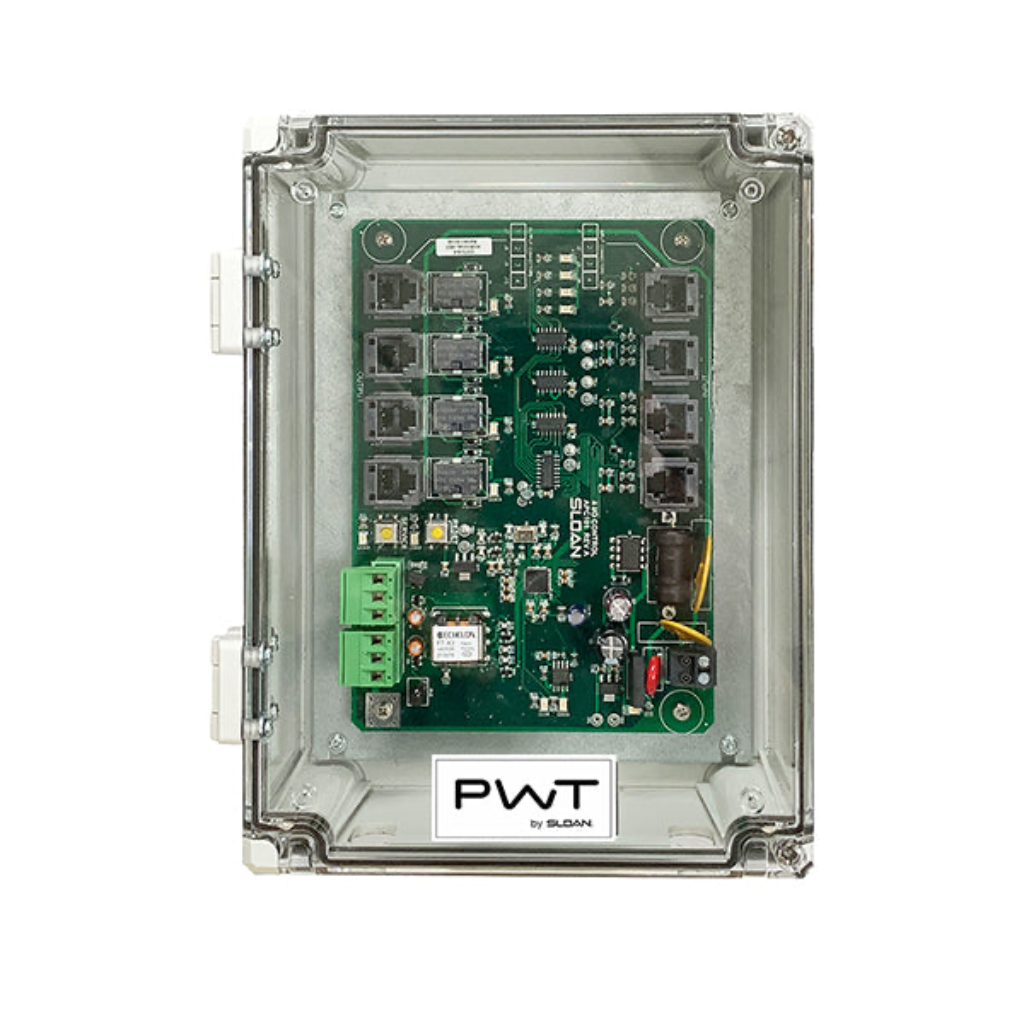

Sloan MCR-4001-002 4-I/O Control Module for PWT

Part Number: #19855
Sloan Model Number: MCR-4001-002
Sloan Code Number: 0375375
Manufacturer: Sloan

This PWT control module with standard programming is from Sloan. It is for use in Sloan’s PWT (Programmed Water Technologies) Systems. It is a four input/output controller used with PWT push buttons, electronic flushometers and solenoids to control water closets, lavatories, and showers. Sloan model number MCR-4001-002, code number 0375375.

Features:
• Operates on 24 VAC–50/60 Hz
• Can operate as “Stand Alone” controller or integrated into a computer managed network with PWT Water Management Software
• LonMark compliant
• RJ-11, 6 position, 4 pin connections for all input and output devices
• Plug-in type terminal blocks with screw clamp wire connections for network twisted pair wire connections
• Fuse protection on 24 VAC power supply
• Patented delay & lockout capabilities on water closet activation and conformal coated control board
• Delay before and/or after runtime available on lavatories and showers
• Input and output diagnostic LEDs

Resources:
• Sloan 0375375 Spec Sheet
