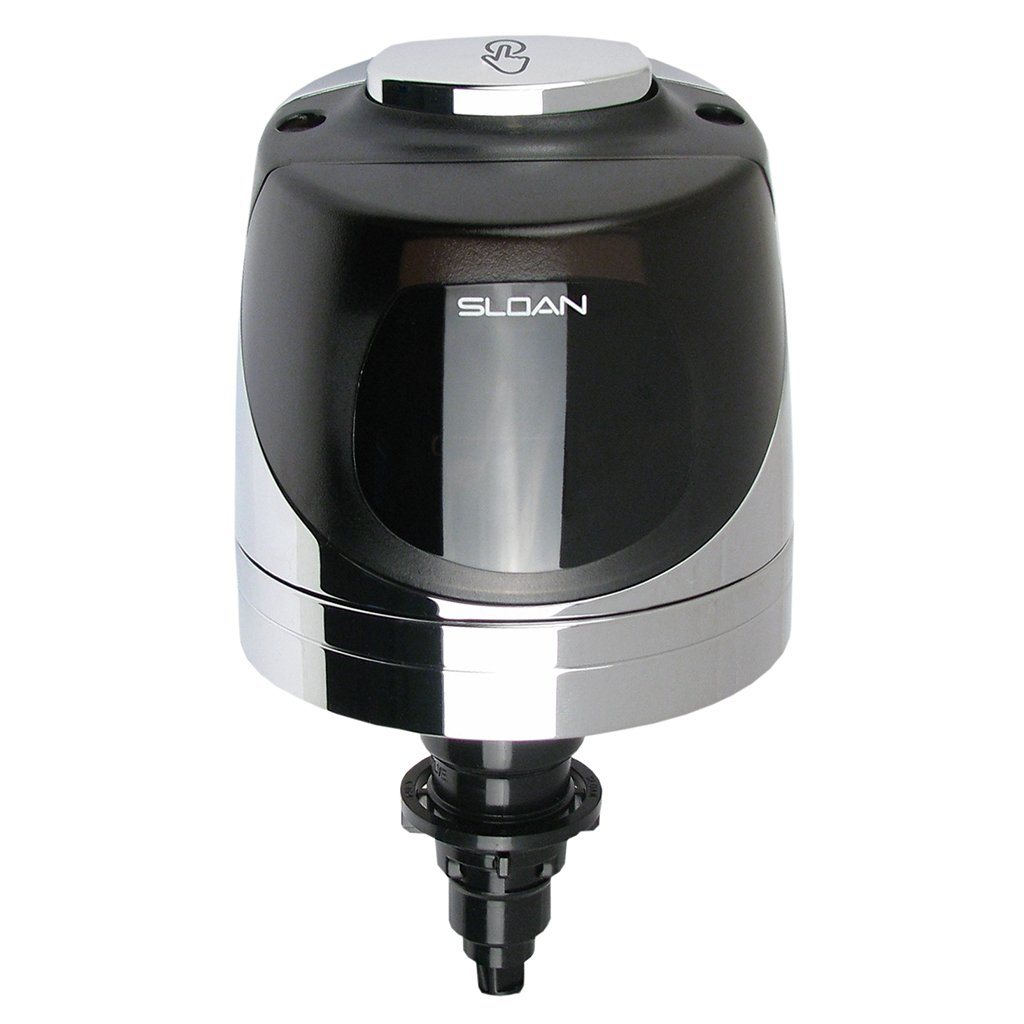

G2 Handsfree Conversion Kit 1.6 or 3.5 GPF for Closet

$450.69

08700

Part Number: #08700
Sloan Model Number: RESS-C-1.6/3.5
Sloan Code Number: 3325400
Manufacturer: Sloan



1.6/3.5 gpf, Polished Chrome Finish, Fixture Connection Top Spud, Single Flush, Battery, G2 Exposed Sensor Water Closet Retrofit Flushometer. Sloan's G2 Optima Plus battery operated flushometer turns any restroom into an odorless, highly hygienic place. They can retrofit on all existing Sloan Royal or most other diaphragm valves quickly and easily. G2 Optima Plus flushes automatically after each use, so it will keep things cleaner, longer. This product is shipped with the 1.6 GPF regulator installed. Specify that you want the regulator converted to a 3.5 GPF regulator in the 'special instructions' at check out (located at the bottom of the check out page). Comes with Handle Cap & Gasket (#08396), and Sloan Strap Wrench (Pictured).


Specifications:
• Flush Volume: 1.6/3.5 GPF
• Finish: Polished Chrome
• Power Type: Battery
• Battery Life: 6 years
• Valve: Diaphragm
• Valve Body Material: Semi-red Brass
• Fixture Type: Water Closet
• Fixture Connection: Top Spud



Features:
• User friendly three (3) second Flush Delay “Low Battery” Flashing LED
• Infrared Sensor with Multiple-focused, Lobular Sensing Fields for high and low target detection
• Flex Tube Diaphragm designed for improved life and reduced maintenance
• Engineered Metal Cover with replaceable Lens Window
• Diaphragm to be molded from PERMEX Rubber Compound for Chloramine resistance
• Courtesy Flush® Override Button
• Handle cap included
• Four (4) Size AA Batteries included


Compliances & Certifications:
ADA Compliant, UPC Certified, BAA Compliant



Resources:
View Sloan 3325400 Spec Sheet
