SOLIS Conversion Kit 1.28 GPF for Closet
Part Number: #82857
Mfg No.: SOLISRESS-C1.28
Mfg: Sloan Valve Co

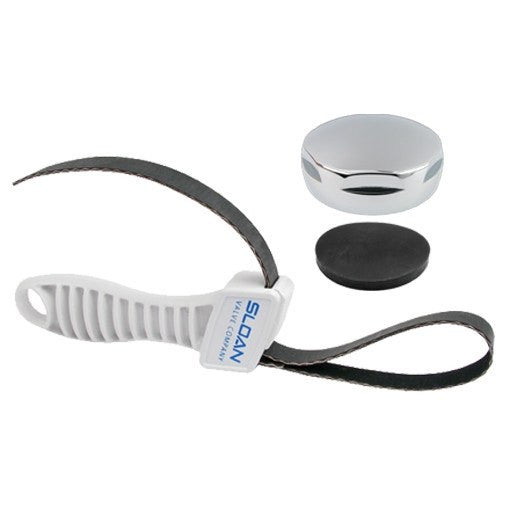

1.28 GPF - Closet Comes with Handle Cap & Gasket (#08396), and Sloan Strap Wrench (Pictured Above).
Specifications:

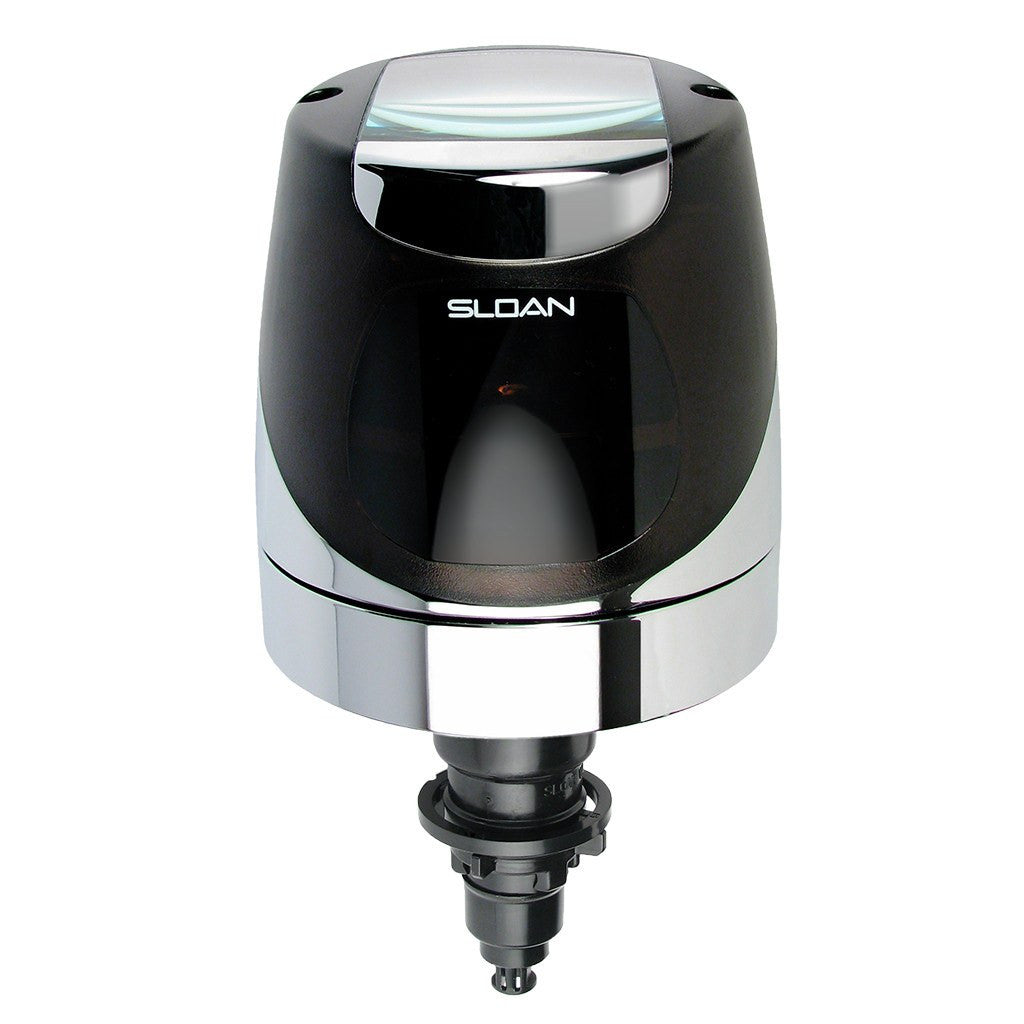

Quiet, Exposed, Sloan Solis® Dual Flush, Solar Powered, Sensor Activated Closet Flushometer Retrofit Conversion Kit for Sloan Royal®, Regal Pro® and Regal® Flushometers with the following features:
• Solar Powered. The sensor assembly is powered by a solar cell that will harvest power from artificial indoor light, either incandescent or fluorescent light, and use it as the energy source. The solar cell can provide approximately 100% power with 650 Illuminance (lux).
• Four (4) Size AA Battery Back-up Power Source
• “Low Battery” Flashing LED
• If the user is present for less than one minute and leaves the sensing zone or chooses the small override button, a reduced flush initiates (1.1 gpf/4.2 Lpf) eliminating liquid and paper waste, saving 1/2 gallon of water
• If the user is present for greater than one minute and leaves the zone or chooses the large override button, the full flush initiates (1.6 gpf/ 6.0 Lpf) eliminating solid waste and paper
• Reduces water volume by up to 30% when a reduced flush occurs
• PERMEX™ Synthetic Rubber Diaphragm with twin linear filtered bypass and vortex cleansing action
• Flex Tube Diaphragm designed for improved life and reduced maintenance
• ADA Compliant Sloan Solis® Electronic Dual Flush Solar Powered Infrared Sensor for automatic “No Hands” operation
• Infrared Sensor with Multiple-focused, Lobular Sensing Fields for high and low target detection
• Latching Solenoid Operator
• Engineered Metal Cover with replaceable Lens Window
• User friendly three (3) second Flush Delay
• Courtesy Flush™ Override Buttons
• Infrared Sensor Range Adjustment Screw
• Chrome Plated Handle Cap
• Initial Set-up Range Indicator Light (first 10 minutes)
• Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
• Installation Tools provided
• Diaphragm molded from PERMEX™ Rubber Compound for Chloramine resistance
• 100% of the energy used in manufacturing is offset with Renewable Energy Sources – Wind Energy
