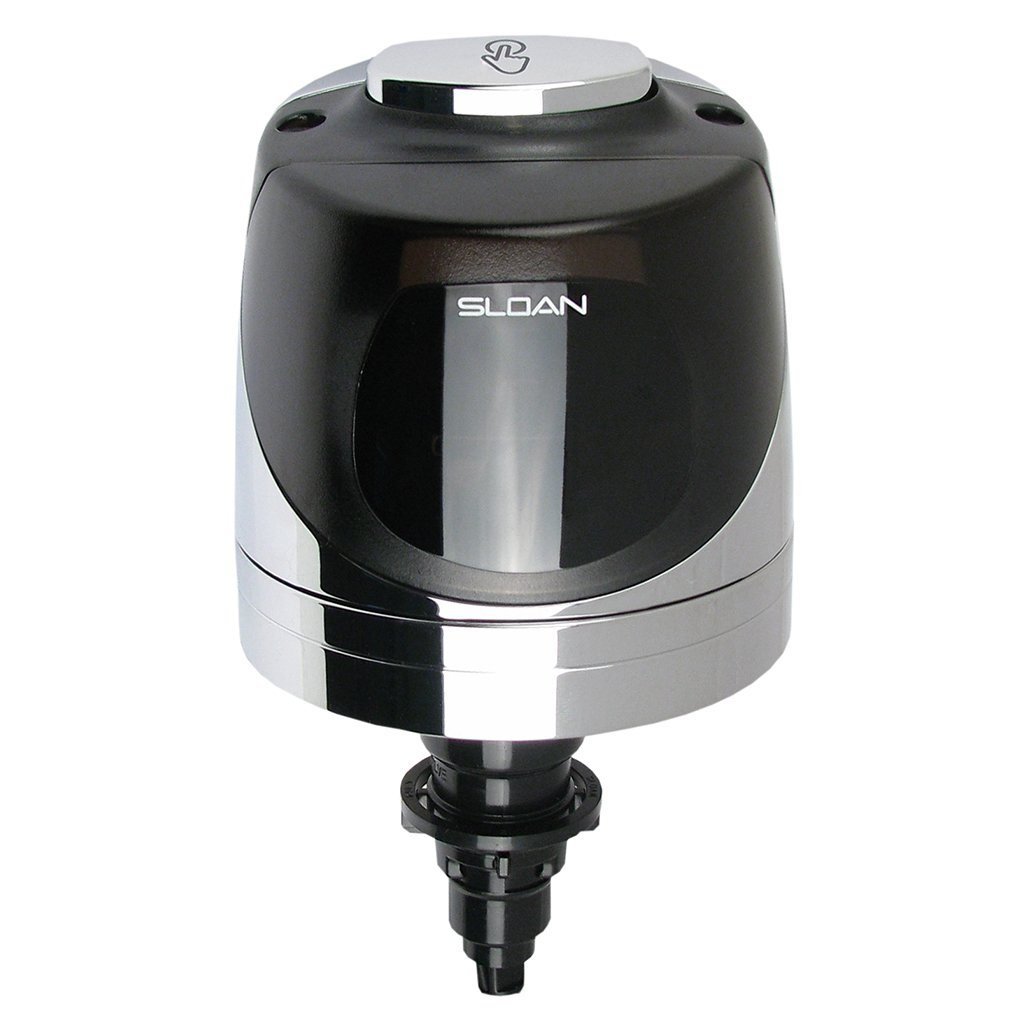

G2 Handsfree Conversion Kit 1.0 or 1.5 GPF for Urinal (Fits Zurn)

$431.37

08800Z

Part Number: #08800Z
Sloan Model Number: RESS-U-1.0-Z
Sloan Code Number: 3325412
Manufacturer: Sloan

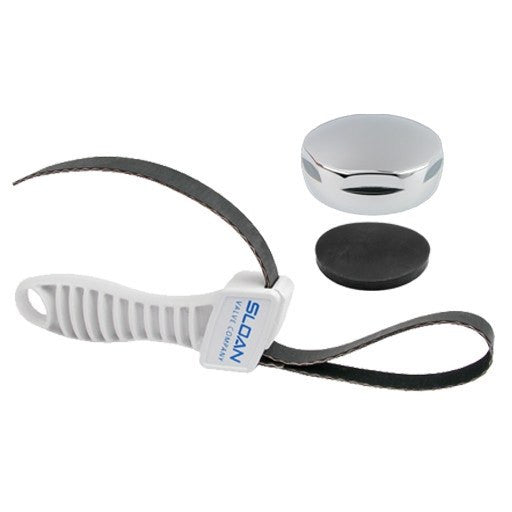

1.0 GPF, Polished Chrome Finish, Fixture Connection Top Spud, Single Flush, Battery, Fits Zurn† valve bodies, G2 Exposed Sensor Urinal Retrofit Flushometer. This product is shipped with the 1.0 GPF regulator installed. Change regulator to convert to a 1.5 GPF. Comes with Handle Cap & Gasket (#08396), and Sloan Strap Wrench (Pictured Above).



Specifications:
• Flush Volume: 1.0 GPF
• Finish: Polished Chrome
• Power Type: Battery
• Battery Life: 6 years
• Valve: Diaphragm
• Valve Body Material: Semi-red Brass
• Fixture Type: Urinal
• Fixture Connection: Top Spud
• Special Features: Fits Zurn† valve bodies



Features:
• User friendly three (3) second Flush Delay “Low Battery” Flashing LED
• Infrared Sensor with Multiple-focused, Lobular Sensing Fields for high and low target detection
• Flex Tube Diaphragm designed for improved life and reduced maintenance
• Engineered Metal Cover with replaceable Lens Window
• Diaphragm to be molded from PERMEX Rubber Compound for Chloramine resistance
• Courtesy Flush® Override Button
• Handle cap included
• Four (4) Size AA Batteries included



Compliances & Certifications:
ADA Compliant, BAA Compliant


Resources:
View Sloan 3325412 Spec Sheet
