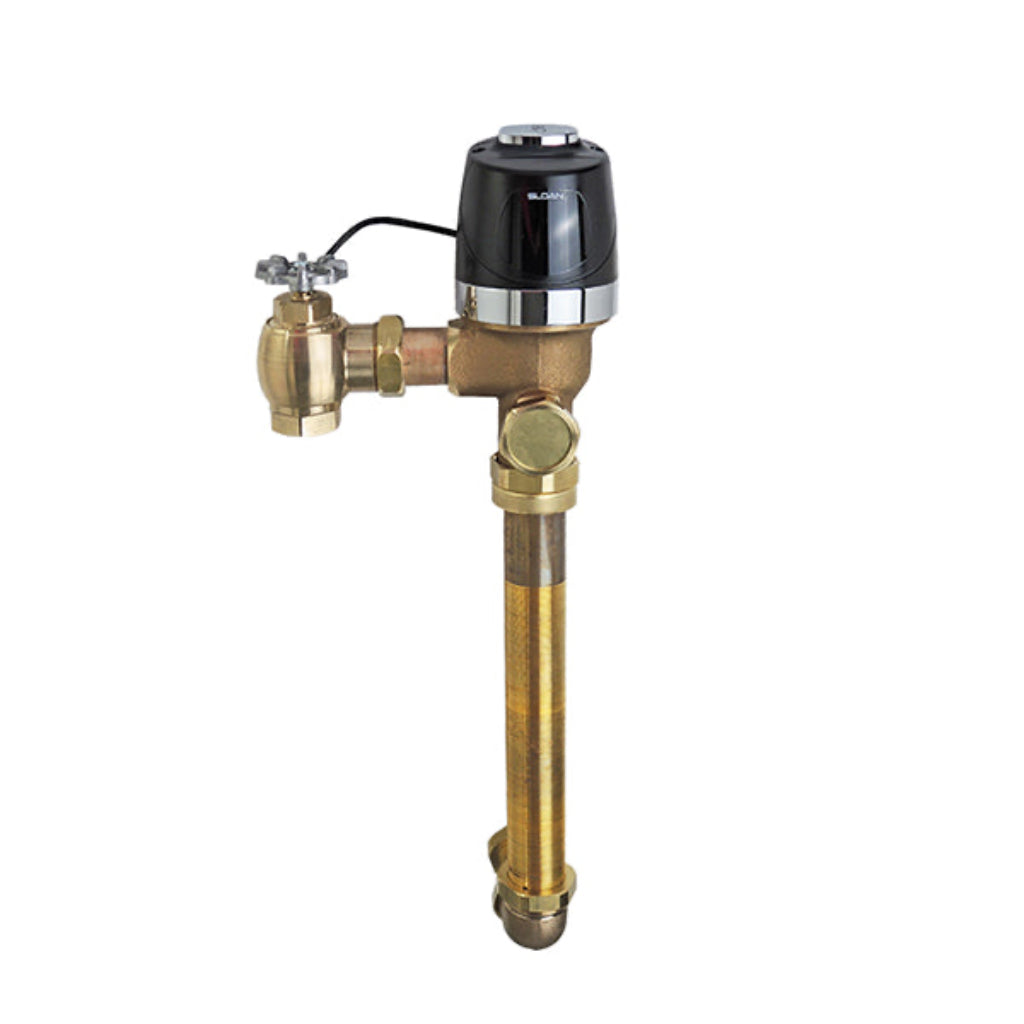

PWT Concealed Solenoid (Less Sensor) Closet Flushometer with A4 Programming 1.6 GPF

Part Number: #48992
Sloan Model Number: 8603-ESM-1.6-PRGM-A4-STD
Sloan Code Number: 320193
Manufacturer: Sloan

This 1.6 GPF PWT Sloan Flushometer is a concealed solenoid unit with a rough brass finish. It does not include the sensor. It is a battery powered unit that is designed for closet applications. As a Programmed Water Technology (PWT) fixture, it is designed for use in facilities that require more control for flushometer use, such as prisons, dorm rooms, or other facilities that need to protect against improper water usage. This unit is programmed to the A4 setting, which means that the unit is factory set at 2 activations in 5 minutes, with a 60 minute lockout time. It has a Standard Touch Button, and a 3/4-inch Vacuum Breaker. Sloan model number 8603-ESM-1.6-PRGM-A4-STD, code number 3250193.

Specs:
• Flush Volume: 1.6 GPF
• Finish: Rough Brass
• Power Type: Battery
• Valve: Diaphragm
• Valve Body Material: Semi-red Brass
• Fixture Type: Water Closet
• Program: A4
• Touch Button: Standard

Features:
• 1.6 GPF flush volume to match with existing fixtures and meet water-efficiency goals
• PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
• Vandal-proof, push-button operation designed with non-hold-open feature to keep fixture from surpassing intended water consumption
• Adjustable tailpiece accommodates various installation height
• High chloramine resistant PERMEX synthetic rubber diaphragm with Linear Filtered Bypass and Vortex Cleansing Action
• Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
• Valve shall be in compliance to the applicable sections of ASSE 1037
• Battery powered
• Programmed for 2 activation in 5 minutes, 60 minutes lockout; Program is field changeable to 15, 30, 45 minute lockouts and dorm option

Resources:
• Sloan 3250193 Spec Sheet
