ECOS Dual Flush Flushometer 1.1 GPF or 1.6 GPF for Closet (Hardwired)

$537.16

47578

Part Number: #47578
Sloan Model Number: ECOS 115-1.6/1.1-HW
Sloan Code Number: 3370424
Manufacturer: Sloan

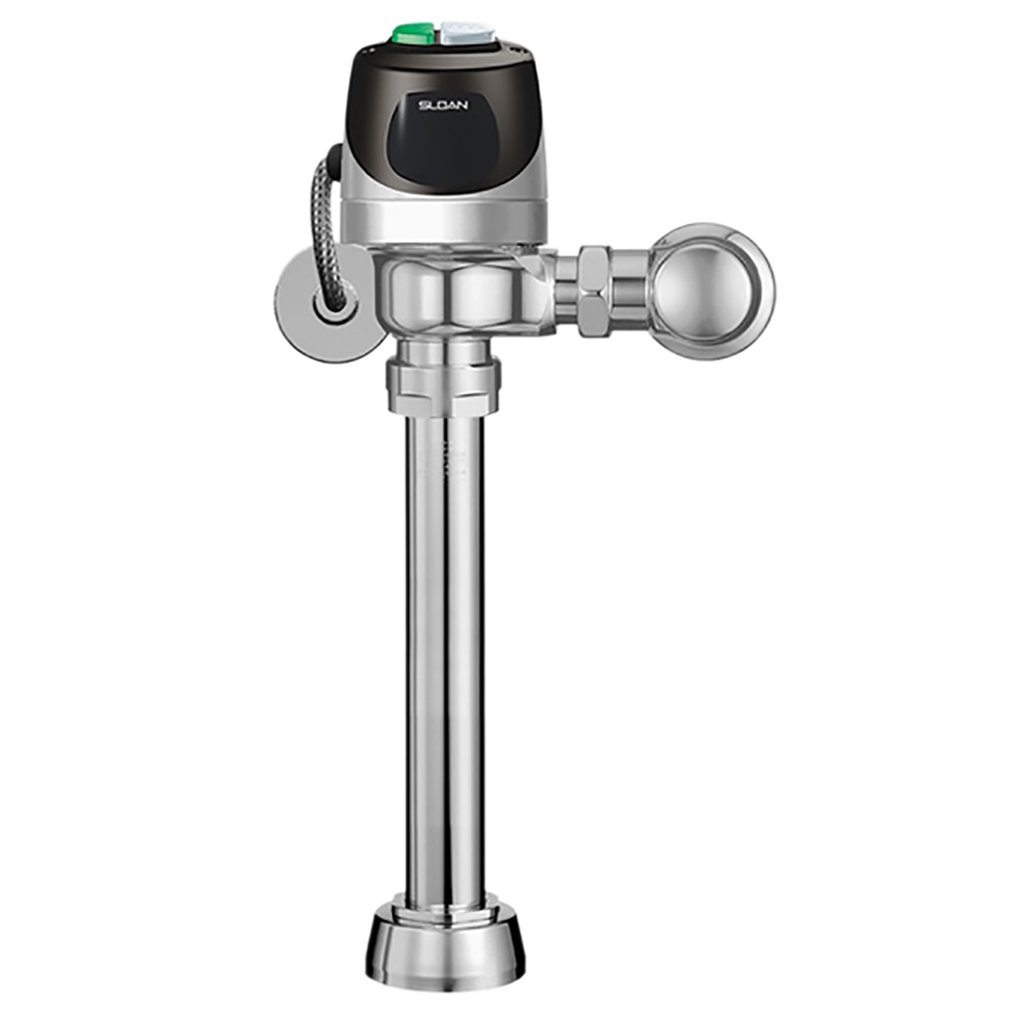

This ECOS Sensor Flushometer is a top spud, dual flush, handwired exposed flushometer designed for use with water closet (toilet) applications.

Specifications:
• Flush Volume: 1.6/1/1 GPF
Finish: Polished Chrome
Power Type: Hardwired
Valve: Diaphragm
Valve Body Material: Semi-red Brass
Fixture Type: Water Closet
Fixture Connection: Top Spud
Rough-In Dimension: 24 inches
Spud Coupling: 1-½ inches
Supply Pipe: 1 inch

Features:
Includes 9" electrical cable, right hand electrical rough-in may require 18” cable – consult factory
User friendly three (3) second Flush Delay
If the user is present for less than one minute and leaves the sensing zone or chooses the small override button, a reduced flush initiates (1.1 gpf/4.2 Lpf) eliminating liquid and paper waste, saving 1/2 gallon of water
If the user is present for greater than one minute and leaves the zone or chooses the large override button, the full flush initiates (1.6 gpf/6.0 Lpf) eliminating solid waste and paper
Sweat solder adapter with cover tube and cast wall flange with set screw
Infrared Sensor with Multiple-focused, Lobular Sensing Fields for high and low target detection
Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
Flex Tube Diaphragm designed for improved life and reduced maintenance
Engineered Metal Cover with replaceable Lens Window
Line Powered with 6 VAC Step Down Transformer
Free Spinning, Vandal Resistant Stop Cap
ADA Compliant Sloan ECOS® Electronic Line Powered Infrared Sensor for automatic "No Hands" operation
1" I.P.S. Screwdriver Bak-Chek® Angle Stop
Courtesy Flush® Override Button
High Chloramine Resistant PERMEX® Synthetic Rubber DFB Dual Filtered Bypass Diaphragm
Diaphragm, Stop Seat and Vacuum Breaker to be molded from PERMEX® rubber compound for Chloramine resistance

Compliancies & Certifications:
ADA Compliant, BAA Compliant, BREEAM Water Credit, cUPC Certified, cUPC Green Certified, Green Globes Water Credit

Resources:
Sloan ECOS Flushometer 3370424 Spec Sheet
