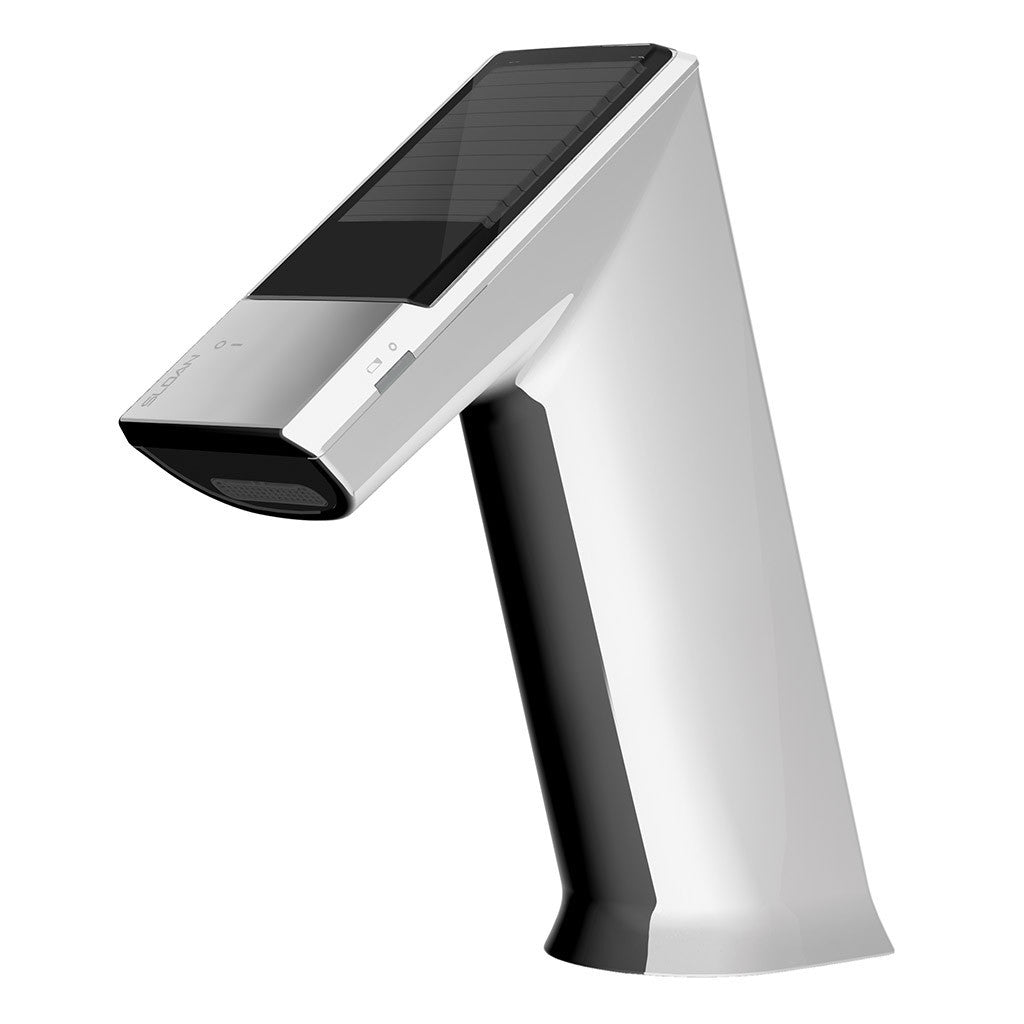

Mid Profile BASYS Faucet 1.5 GPM Single Supply (Solar)

$691.08

86744

Part Number: #86744
Manufacturer Number: EFX-275-SOL-CP-1.5GPM-IR-FCT
Manufacturer Code Number: 3324074
Manufacturer: Sloan

Solar Power Supply, Mixer Not Included, Polished Chrome Finish, 1.5 GPM, Aerated (installed) or Laminar (in box) Spray, Infrared Sensor, BASYS® Solar-Powered Deck-Mounted Mid Body Faucet.

Specifications:
• Flow Rate: 1.5 gpm (6 Lpm) (1.5GPM)
• Spray Type: Aerated (installed) or Laminar (in box) ()
• Sensor Type: Infrared (IR)
• Mounting Type: Single Hole ()
• Power Supply: Solar (SOL)
• Temperature Mixer: Mixer Not Included ()
• Finish: Polished Chrome (CP)
• Factory Default Timeout: 10s
• Factory Default GPC: 0.75
• Battery Life: 3 years 8,000 cycles/month
• Optional power harvesting significantly extends service life
• Timeout Adjustment Settings: 10s

Features:

Commercial Grade, ADA Compliant, Electronic, Sensor-Activated, Die-Cast Metal Hand Washing Faucet with the following features:

• One tool service
• All wetted components to be stainless steel, engineered thermoplastic, EPDM, and copper or copper alloy
• Solenoid housed in removable carrier that includes supply strainer Integral water supply shut off
• Supply strainer serviceable from above deck
• Vandal resistant spray insert, key housed inside faucet body
• All electronics sealed to IP-67
• Gold plated electrical contacts
• Above deck individual diagnostic indicators for battery life, solenoid condition, and power up mode

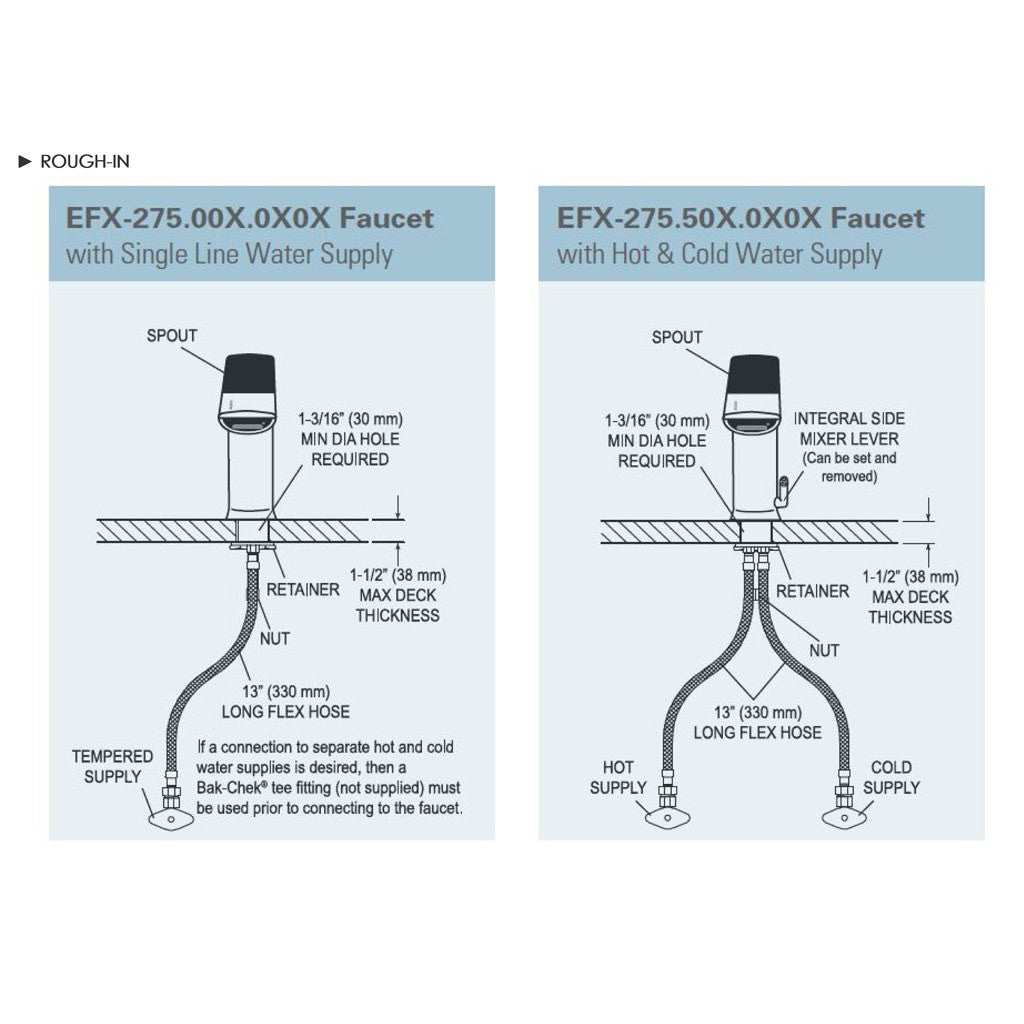

• Flexible, high-pressure supply hoses, 3/8” compression connections Bi-stable magnetic solenoid
• Four (4) “AA” alkaline batteries
• Double infrared sensors with automatic setting feature
• Includes all mounting hardware
• Line purge mode, eliminates stagnant water
• Adjustable time-outs

Compliances & Certifications:
ADA Compliant, ASME A112.18.1 Compliant, CEC Compliant, cUPC Certified, cUPC Low Lead Compliant, Proposition 65, TAS, UPC Certified, UPC Low Lead Compliant



Resources:
• View Sloan 3324074 Spec Sheet
