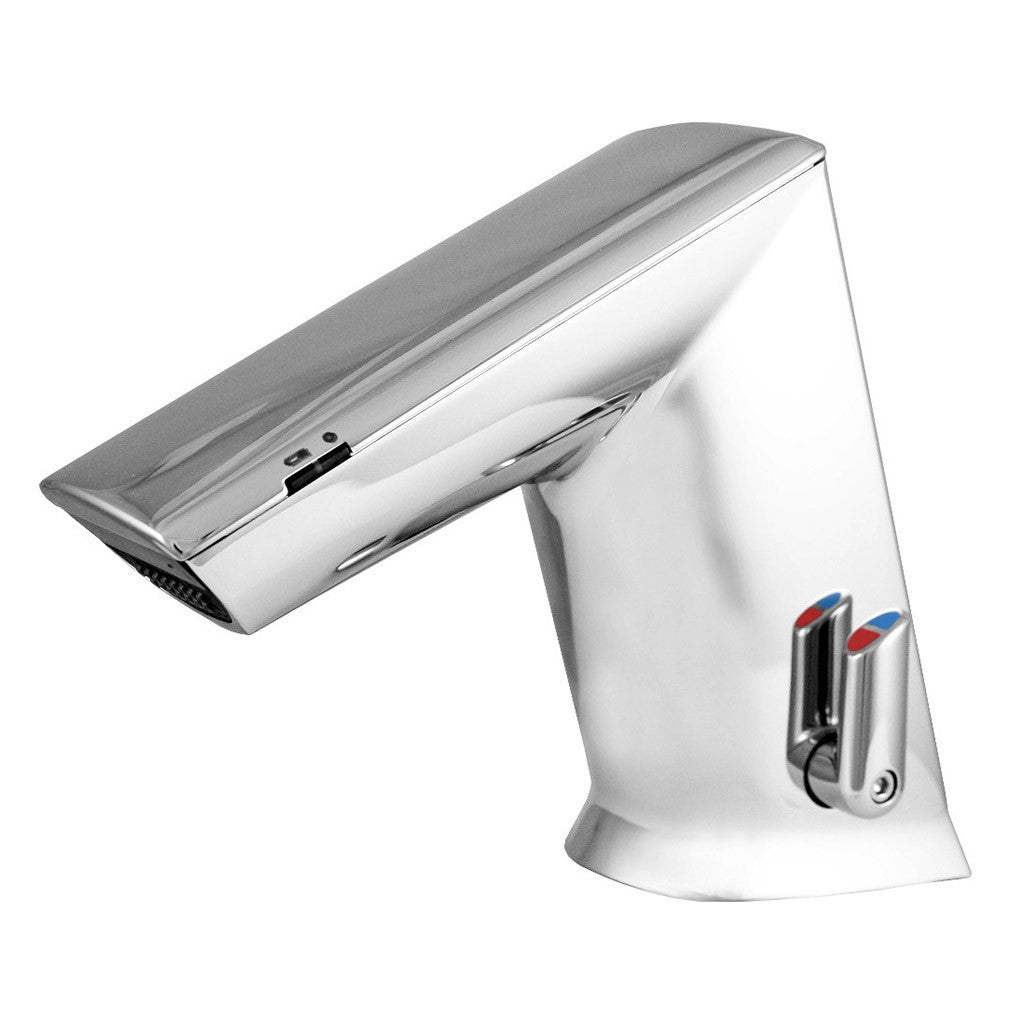

Low Profile BASYS Faucet 1.5 GPM with Mixer (Battery Powered)

$527.80

85683

Part Number: #85683
Manufacturer Number: EFX-350-BAT-ISM-CP-1.5GPM-IR-FCT
Manufacturer Code Number: 3324081
Manufacturer: Sloan



Battery Power Supply, Integrated Side Mixer, Polished Chrome Finish, 1.5 gpm, Aerated (installed) or Laminar (in box) Spray, Infrared Sensor, BASYS® Battery-Powered Deck-Mounted Low Body Faucet.



Specifications:
• Flow Rate: 1.5 gpm (6 Lpm) (1.5GPM)
Spray Type: Aerated (installed) or Laminar (in box) ()
Sensor Type: Infrared (IR)
Mounting Type: Single Hole ()
Power Supply: Battery (BAT)
Temperature Mixer: Integrated Side Mixer (ISM)
Finish: Polished Chrome (CP)
Factory Default Timeout: 10s
Factory Default GPC: 0.75
Battery Life: 3 years 8,000 cycles/month
Optional power harvesting significantly extends service life
Self-Adjustment Range: 0" (0mm) Sensor Range: 0" (0mm)
Timeout Adjustment Settings: 10s

Features:
Commercial Grade, ADA Compliant, Electronic, Sensor-Activated, Die- CastMetal Hand Washing Faucet with the following features:
One tool service
Solenoid housed in removable carrier that includes supply strainer Integral water supply shut off
Vandal resistant spray insert, key housed inside faucet body
All electronics sealed to IP-67
Gold plated electrical contacts
Above deck individual diagnostic indicators for battery life, solenoid condition, and power-up mode

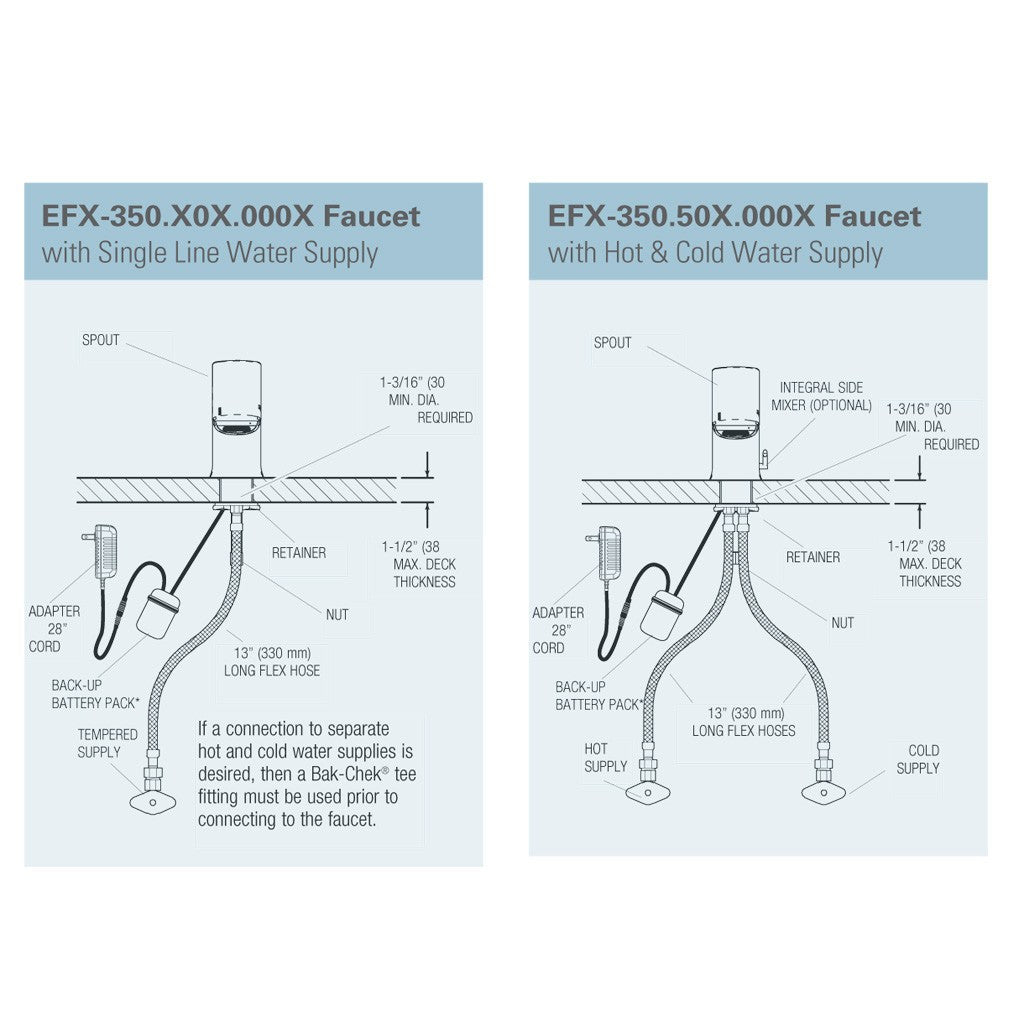

Flexible, high pressure supply hose, 3/8” compression connections Bi-stable magnetic solenoid
Four (4) “AA” alkaline batteries
Double infrared sensors with automatic setting feature



Compliances & Certifications:
ADA Compliant, ASME A112.18.1 Compliant, CEC Compliant, cUPC Certified, cUPC Low Lead Compliant, Proposition 65, TAS, UPC Certified, UPC Low Lead Compliant



Resources:
View Sloan 3324081 Spec Sheet
