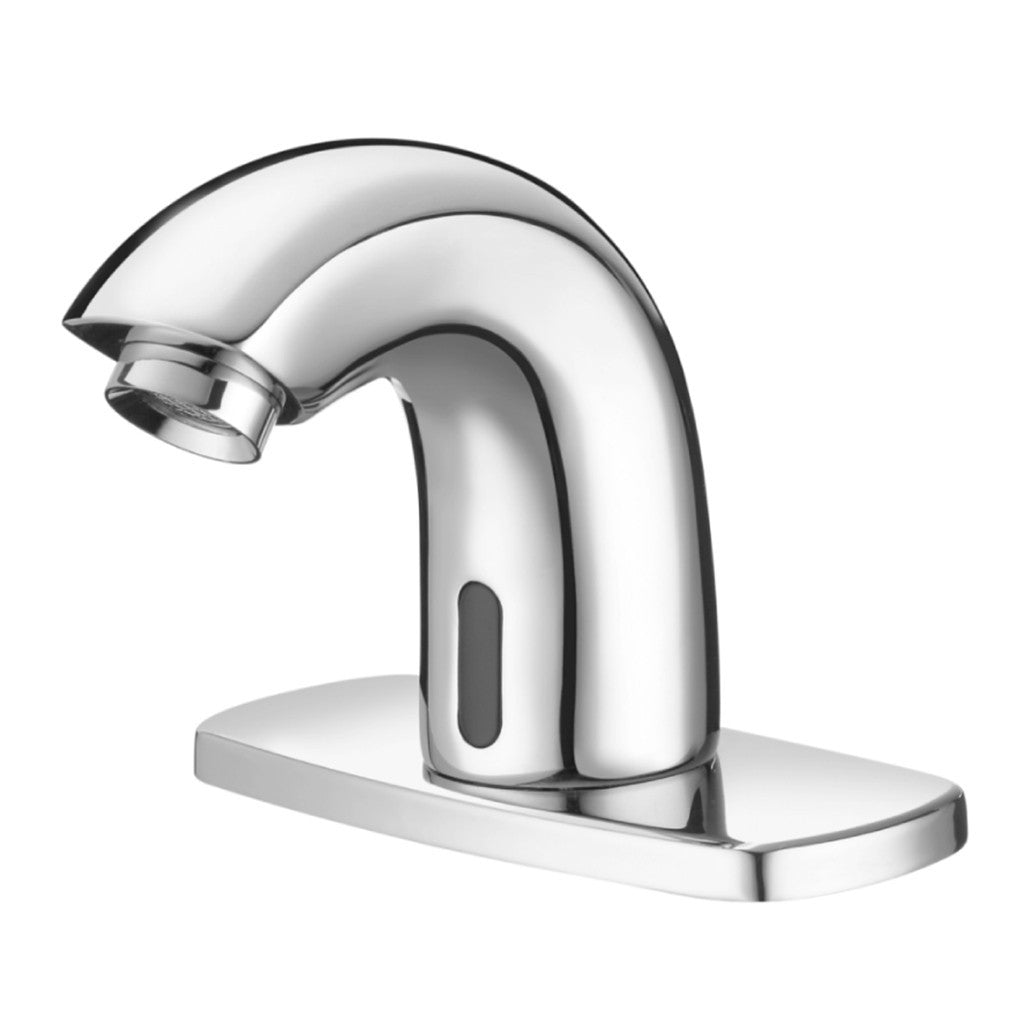

Sloan Pedestal Faucet 0.5 GPM Single Supply with 4" Base Plate (Battery Powered)

Part Number: #58727
Manufacturer Number: SF-2150-4-BAT-TEE-CP-0.5GPM-MLM-IR-FCT
Manufacturer Code Number: 3362102
Manufacturer: Sloan

4" Trim Plate, Battery Power Supply, Back-Check Tee, Polished Chrome Finish, 0.5 gpm, Multi-Laminar Spray, Infrared Sensor, Sloan® Battery-Powered Deck-Mounted Low Body Faucet.

Specifications:
• Flow Rate: 0.5 gpm (2 Lpm) (0.5GPM)
• Spray Type: Multi-Laminar (MLM)
• Spout Type: Pedestal ()
• Sensor Type: Infrared (IR)
• Mounting Type: Single Hole ()
• Trim Plate: 4" (102mm) (4)
• Power Supply: Battery (BAT)
• Temperature Mixer: Back-Check Tee (TEE)
• Finish: Polished Chrome (CP)
• Factory Default Timeout: 30s
• Factory Default GPC: 0.25
• Battery Life: 2 years 8,000 cycles/month
• Sensor Range: 4" – 12" (102 – 305mm)
• Timeout Adjustment Settings: 30s

Features:
Commercial Grade, ADA Compliant, Electronic, Sensor-Activated, Brass Pedestal Hand Washing Faucet with the following features:
• Adjustable Infrared Sensor Range
• 36” (914 mm) Long Sensor Cable
• 24” (610 mm) Long Flex Hose
• Filtered Solenoid Valve with serviceable Strainer Filter Includes Four (4) AA-size Batteries
• Includes appropriate Mounting Hardware

Compliances & Certifications:
ADA Compliant, ASME A112.18.1 Compliant, CalGreen Compliant, CEC Compliant, cUPC Certified, cUPC Low Lead Compliant, GPC 0.25 or less, NYC604.4, Proposition 65, TAS, UPC Certified, UPC Low Lead Compliant

Resources
• Sloan 3362102 Faucet Spec Sheet
• SF-2150 Parts Breakdown
