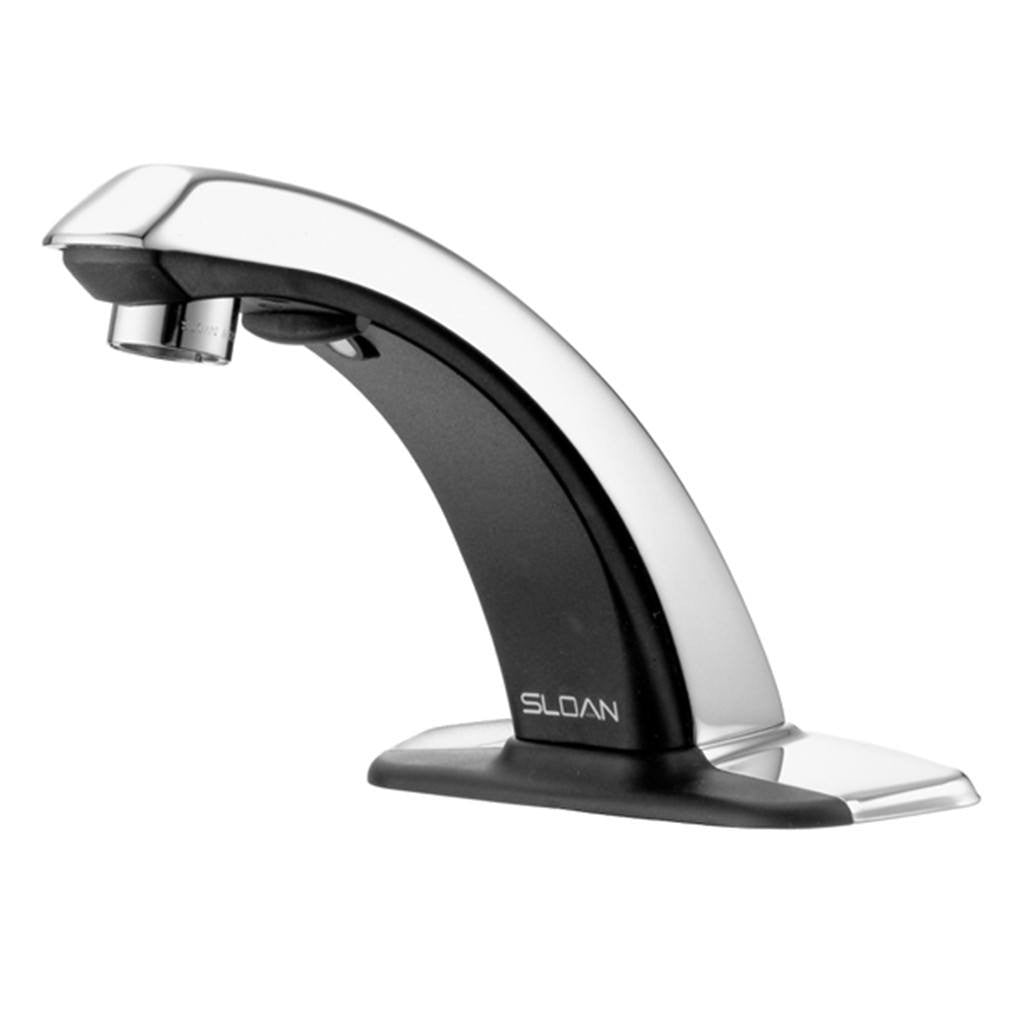

Optima Bluetooth Faucet 0.5 GPM with 4” Center Base Plate (Box Mount Transformer)
Part Number: #80617
Sloan Model Number: ETF-80-4-BOX-TEE-CP-0.5GPM-MLM-IR-BT-FCT
Sloan Code Number: 3365321BT
Manufacturer: Sloan
This hardwired powered bluetooth faucet is by Sloan. It operates with a box transformer power supply. Faucet has a flow rate of 0.5 GPM with a multi-laminar spray. This faucet has a single-hole, deck mounting type with a 4-inch trim plate. It utilizes an infrared sensor to activate. With the faucet having bluetooth technology all of the below deck installation is now housed in a singular control box that can be controlled remotely (via Bluetooth) through the Sloan Connect App on a smartphone. Unit has a polished chrome finish on the cast brass body. Includes a 24VAC box transformer, quick-connect fittings, twist-off/shut-off solenoid assembly, removable battery cartridge, and flexible power supply. Sloan ETF-80 style faucet. Learn more about all of the improvements included in the Bluetooth update by Sloan in our Bluetooth Optima Faucets blog article.
Specifications:
- Flow Rate: 0.5 GPM
- Spray Type: Multi-Laminar
- Sensor: Infrared (IR)
- Mounting: Deck Mounted, Single Hole
- Trim Plate: 4-inch
- Power Supply: Box Transformer
- Temperature Mixer: Back-Check Tee
- Finish: Polished Chrome
- Self-Adjustment Range: 0 inches
- Sensor Range: 0 inches
- Factory Default Timeout: 30s
- Factory Default GPC: 0.25
Features:
- Cast Brass Spout
- Quick Connect Fittings
- Integrated Water Shut-off
- Wireless Settings Adjustment
- On-Demand or Metered Activation
- Hygienic Line Flush
- Water Usage and Battery Strength Reporting
- Self-Adapting Sensor
Compliancies & Certifications:
ADA Compliant, ASME A112.18.1 Compliant, CalGreen Compliant, CEC Compliant, cUPC Certified, cUPC Low Lead Compliant, GPC 0.25 or less, NYC604.4, Proposition 65, TAS, UL Certified, UPC Certified, UPC Low Lead Compliant
Resources:
• Sloan Optima 3365321BT Bluetooth Faucet Spec Sheet
• EBF-85/ETF-80 Parts Breakdown
