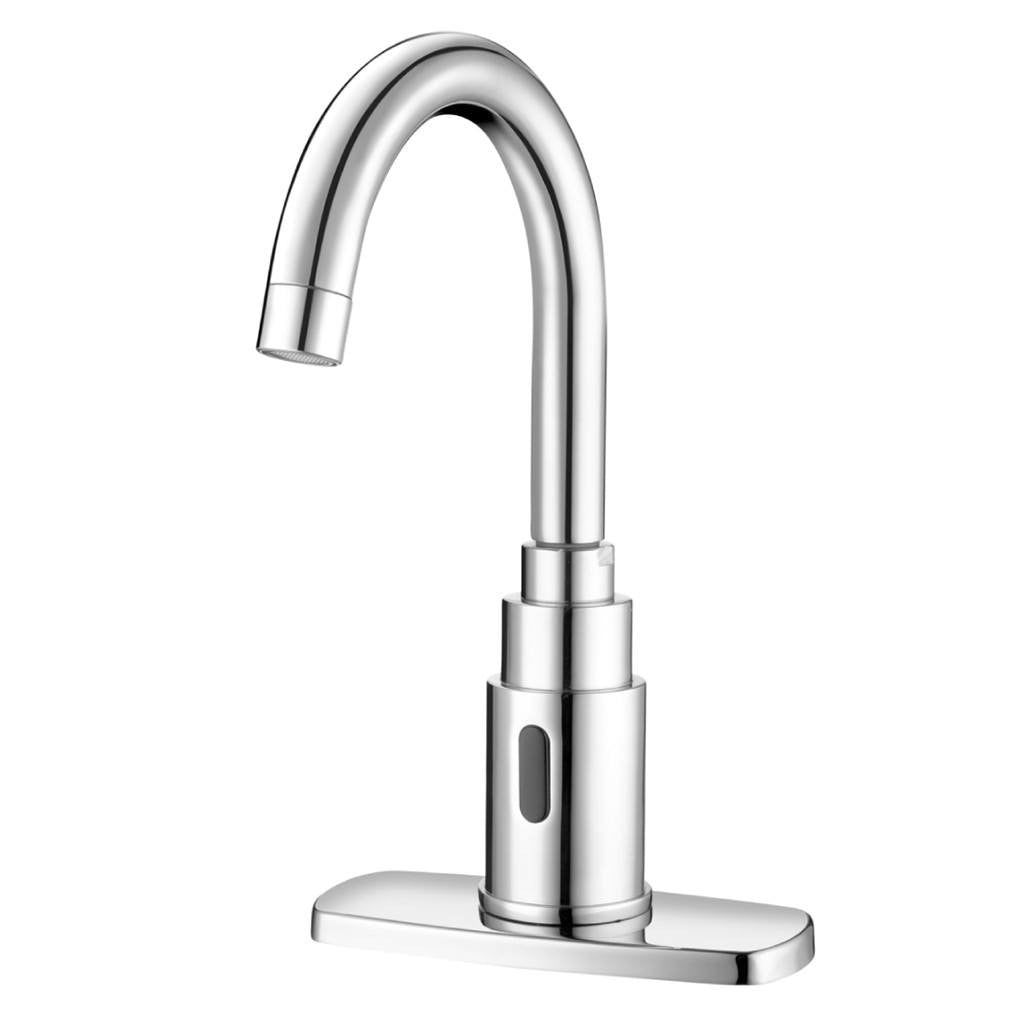

Sloan Gooseneck Faucet 2.2 GPM Single Supply with 4” Base Plate (Battery Powered)



Part Number: #58730
Manufacturer Number: SF-2250-4-BAT-TEE-CP-2.2GPM-LAM-IR-FCT
Manufacturer Code Number: 3362104
Manufacturer: Sloan

4" Trim Plate, Battery Power Supply, Back-Check Tee, Polished Chrome Finish, 2.2 gpm, Laminar Spray, Infrared Sensor, Sloan® Battery-Powered Deck-Mounted Gooseneck Body Faucet.

Flow Rate: 2.2 gpm (8 Lpm) (2.2GPM)
Spray Type: Laminar (LAM)
Sensor Type: Infrared (IR)
Mounting Type: Single Hole ()
Trim Plate: 4" (102mm) (4)
Power Supply: Battery (BAT)
Temperature Mixer: Back-Check Tee (TEE)
Finish: Polished Chrome (CP)
Factory Default Timeout: 30s
Factory Default GPC: 1.1
• Battery Life: 2 years 8,000 cycles/month
• Sensor Range: 4" – 12" (102 – 305mm)
• Timeout Adjustment Settings: 30s

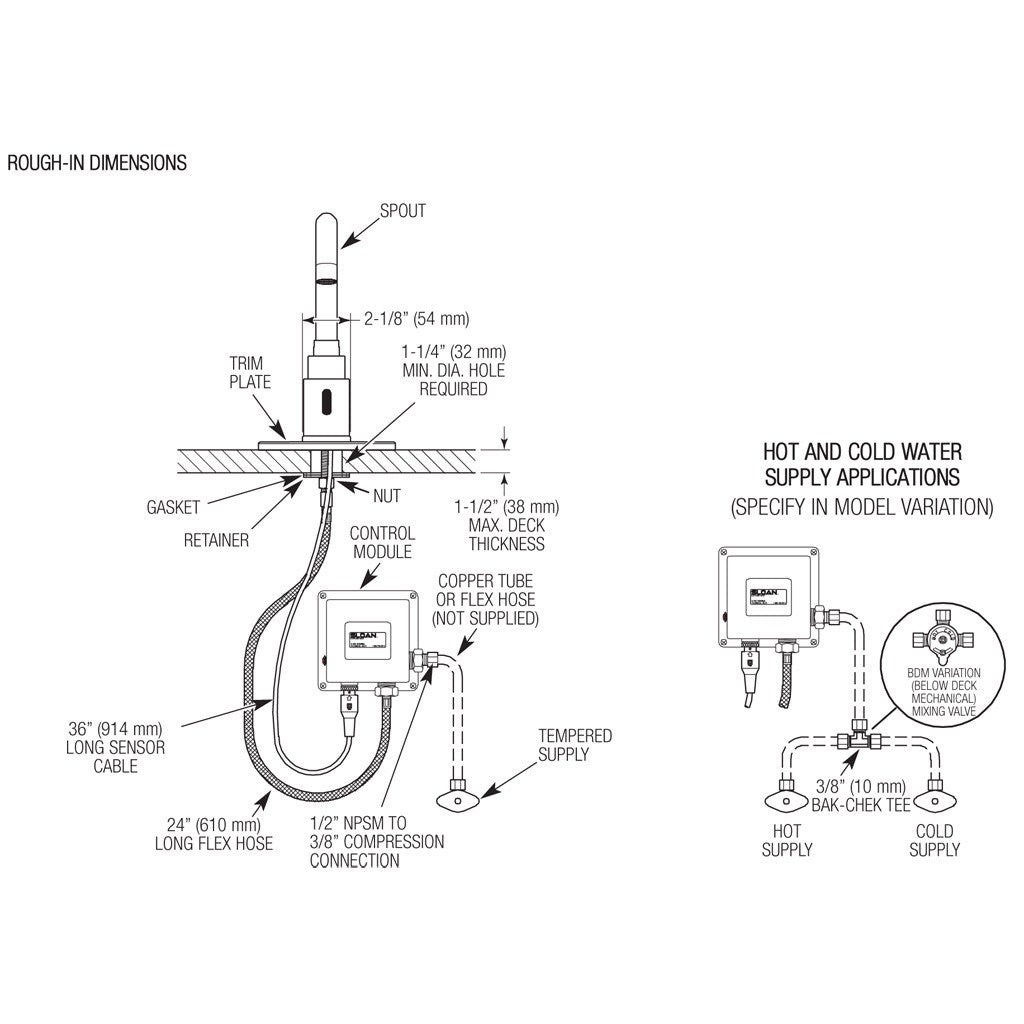

Commercial Grade, ADA Compliant, Electronic, Sensor-Activated, Brass Gooseneck Hand Washing Faucet with the following features:

• Adjustable Infrared Sensor Range
• 36” (914 mm) Long Sensor Cable
• 24” (610 mm) Long Flex Hose
• Filtered Solenoid Valve with serviceable Strainer Filter
• Includes Four (4) AA-size Batteries
• Includes appropriate Mounting Hardware

Compliances & Certifications:
ADA Compliant, ASME A112.18.1 Compliant, cUPC Certified, cUPC Low Lead Compliant, Proposition 65, TAS, UPC Certified, UPC Low Lead Compliant

Sloan Optima 3362104 Faucet Spec Sheet
SF-2250 Parts Breakdown
