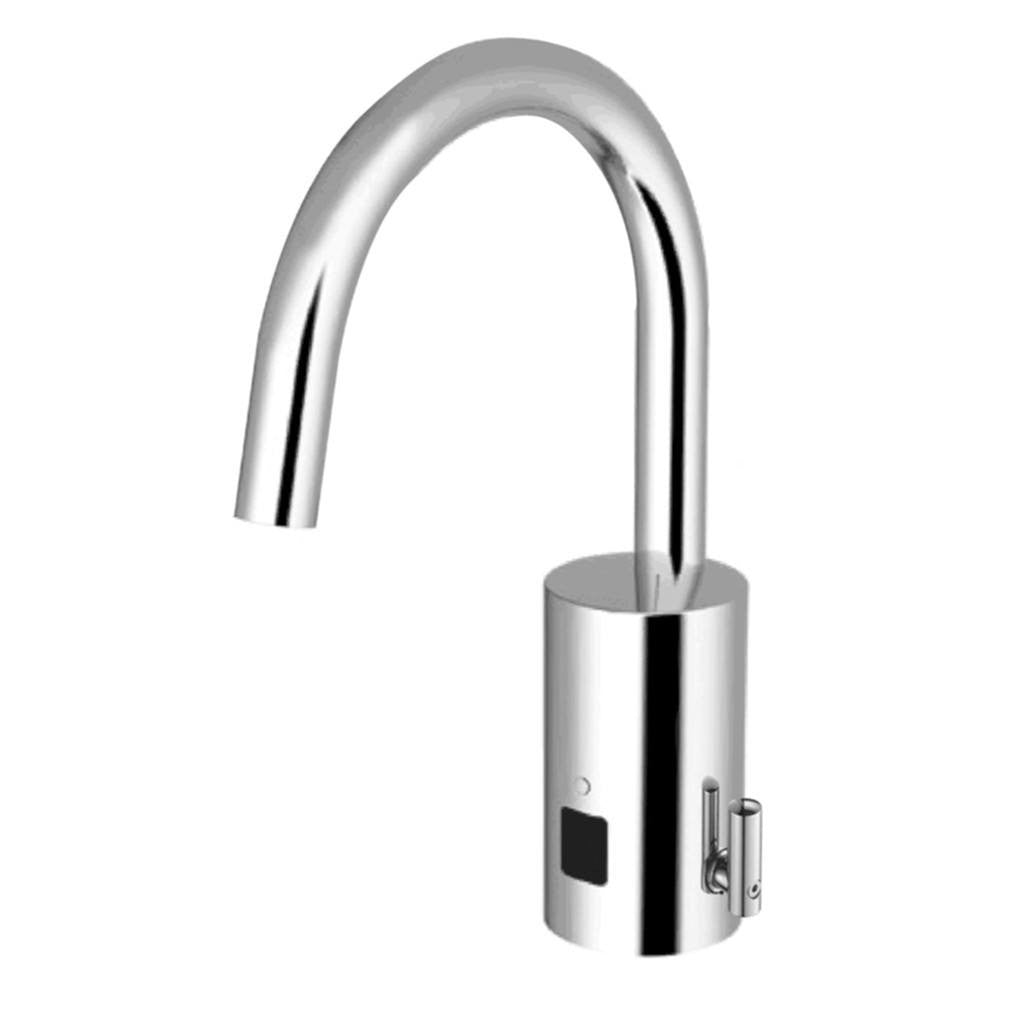

Optima Gooseneck Faucet 1.5 GPM with Mixer (Battery Powered)

$662.94

84065

Part Number: #84065
Manufacturer Number: EAF-750-BAT-ISM-CP-1.5GPM-LAM-IR-IQ-FCT
Manufacturer Code Number: 3335074
Manufacturer: Sloan


Battery Power Supply, Integrated Side Mixer, Polished Chrome Finish, 1.5 GPM, Laminar Spray, Infrared Sensor, Optima® Battery-Powered Deck-Mounted Gooseneck Body Faucet.



Specifications:
Flow Rate: 1.5 gpm (6 Lpm) (1.5GPM)
Spray Type: Laminar (LAM)
Sensor Type: Infrared (IR)
Mounting Type: Single Hole ()
Power Supply: Battery (BAT)
Temperature Mixer: Integrated Side Mixer (ISM)
Finish: Polished Chrome (CP)
Factory Default Timeout: 30s
Factory Default GPC: 0.75
Battery Life: 3 years 8,000 cycles/month
Optional power harvesting significantly extends service life
Timeout Adjustment Settings: 30s



Features:
Commercial Grade, ADA Compliant, Electronic, Sensor-Activated, Cast Brass Gooseneck Hand Washing Faucet with the following features:
12/24 Hour Hygienic Rinse Line Purge Function - Field Settable
Unitary Spout Housing Assembly for Easy Cleaning
Modular One-piece Construction with all Concealed Components above deck
Double Infrared Sensors with Automatic Setting Feature and Microprocessor
Low Battery Indicator
Bi-stable Magnetic Solenoid Valve
Water Supply Connection with Flexible High-pressure Hose and Strainer
8 volt Lithium CR P2 Commercial Battery included
Appropriate Mounting Hardware included
IQ-Click feature permits activation of continuous run and temporary off modes
Installation Similar to Conventional Single Lever Faucet


Compliances & Certifications:
ADA Compliant, ASME A112.18.1 Compliant, CEC Compliant, cUPC Certified, cUPC Low Lead Compliant, Proposition 65, TAS, UPC Certified, UPC Low Lead Compliant


Resources
Sloan Optima 3335074 Faucet Spec Sheet
