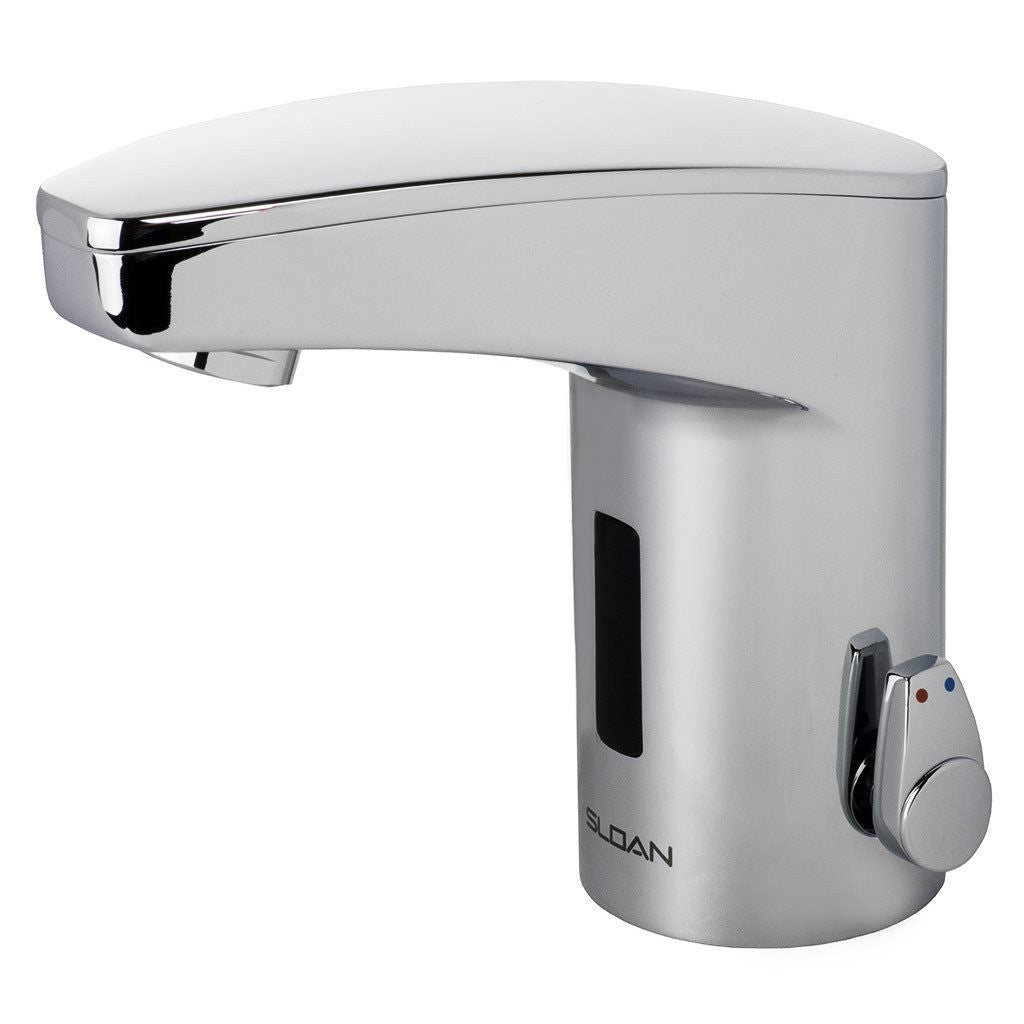

Optima Faucet 1.5 GPM with Mixer (Battery Powered)

$438.46

86899

Part Number: #86899
Manufacturer Number: EAF-350-BAT-ISM-CP-1.5GPM-AER-IR-IQ-FCT
Manufacturer Code Number: 3335107
Manufacturer: Sloan


Battery Power Supply, Integrated Side Mixer, Polished Chrome Finish, 1.5 gpm, Aerated Spray, Infrared Sensor, Optima® Battery-Powered Deck-Mounted Mid Body Faucet.


Specifications:
Flow Rate: 1.5 gpm (6 Lpm) (1.5GPM)
Spray Type: Aerated (AER)
Sensor Type: Infrared (IR)
Mounting Type: Single Hole ()
Power Supply: Battery (BAT)
Temperature Mixer: Integrated Side Mixer (ISM)
Finish: Polished Chrome (CP)
Factory Default Timeout: 7s
Factory Default GPC: 0.175
Battery Life: 3 years 8,000 cycles/month
Optional power harvesting significantly extends service life
Self-Adjustment Range: 2 1⁄2" – 7 1⁄2" – 0" (64 – 191 – 0mm)
Sensor Range: 0" (0mm)
Timeout Adjustment Settings: 7s


Features:
Commercial Grade, ADA Compliant, Electronic, Sensor-Activated, Cast Brass Hand Washing Faucet with the following features:
Double Infrared Sensor with Automatic Setting Feature and Microprocessor
Bi-Stable Magnetic Solenoid Valve (for increased energy savings)
Adjustable Hot Water Limit Set (with ISM Mixer)
Water Supply Connection with Flexible High-Pressure Hose and Strainer
6V Lithium CR-P2 Commercial Battery included
IR-Click feature permits activation of continuous run and temporary off modes
Appropriate Mounting Hardware included
IQ-Click feature permits activation of continuous run and temporary off modes


Compliances & Certifications:
ADA Compliant, ASME A112.18.1 Compliant, CEC Compliant, cUPC Certified, cUPC Low Lead Compliant, Proposition 65, Satisfies LEED Credits, TAS, UPC Certified, UPC Low Lead Compliant


Resources
Sloan Optima 3335107 Faucet Spec Sheet
