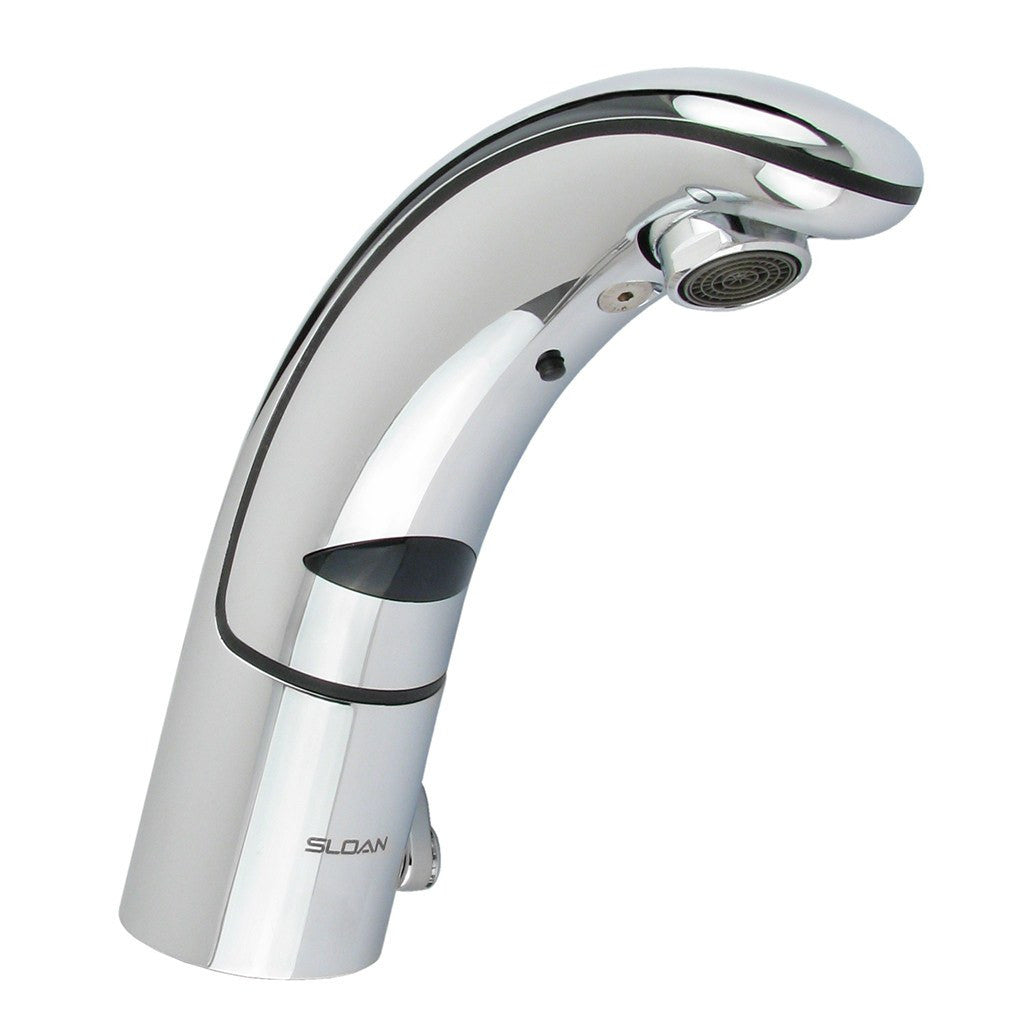

Optima Faucet 1.5 GPM with Mixer and i.q. Click (Battery Powered)
Part Number: #57130
Manufacturer Number: EAF-150-BAT-ISM-CP-1.5GPM-AER-IR-IQ-FCT
Manufacturer Code Number: 3335001
Manufacturer: Sloan
Battery Power Supply, Integrated Side Mixer, Polished Chrome Finish, 1.5 gpm, Aerated Spray, Infrared Sensor, Optima® Battery-Powered Deck-Mounted Mid Body Faucet.

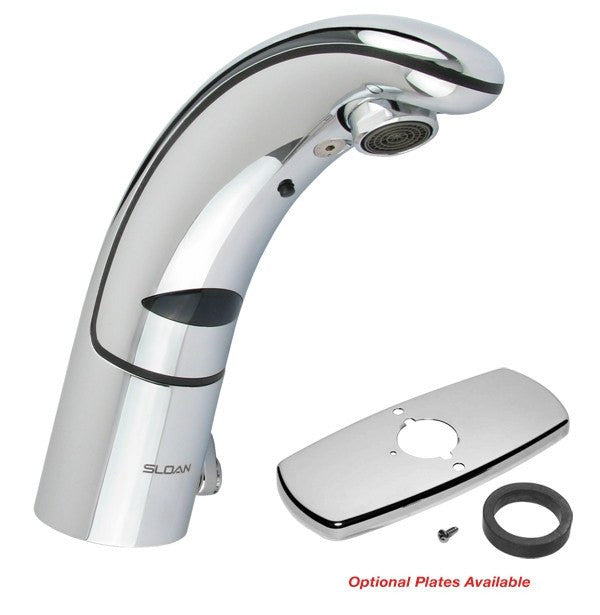

Also available with 4" Trim Plate (#58166) or 8" Trim Plate (#57131)
Specifications:
• Flow Rate: 1.5 gpm (6 Lpm) (1.5GPM)
• Spray Type: Aerated (AER)
• Sensor Type: Infrared (IR)
• Mounting Type: Single Hole ()
• Power Supply: Battery (BAT)
• Temperature Mixer: Integrated Side Mixer (ISM)
• Finish: Polished Chrome (CP)
• Factory Default Timeout: 30s
• Factory Default GPC: 0.75
• Battery Life: 3 years 8,000 cycles/month
• Optional power harvesting significantly extends service life
• Timeout Adjustment Settings: 30s
Features:
Commercial Grade, ADA Compliant, Electronic, Sensor-Activated, Cast Brass Hand Washing Faucet with the following features:
• Double Infrared Sensors with Automatic Setup and Indicator Light Automatic
• Self-adapting Sensor Technology
• Low Battery Indicator
• Magnetic Solenoid Valve
• Water Supply Connection with Flexible High-pressure Hose and Strainer
• 6 Volt Lithium 2CR5 Commercial Battery included
• Appropriate Mounting Hardware included
• Optional 24 Hour Sentinel Activation
• IQ-Click feature permits activation of continuous run and temporary off modes
• Capable of withstanding temporary thermal disinfection shocks up to 80 ̊C /176 ̊F
Compliances & Certifications:
ADA Compliant, ASME A112.18.1 Compliant, CEC Compliant, cUPC Certified, cUPC Low Lead Compliant, Proposition 65, TAS, UPC Certified, UPC Low Lead Compliant
Resources
• Sloan Optima 3335001 Faucet Spec Sheet
• EAF-150 Parts Breakdown and Troubleshooting Guide
