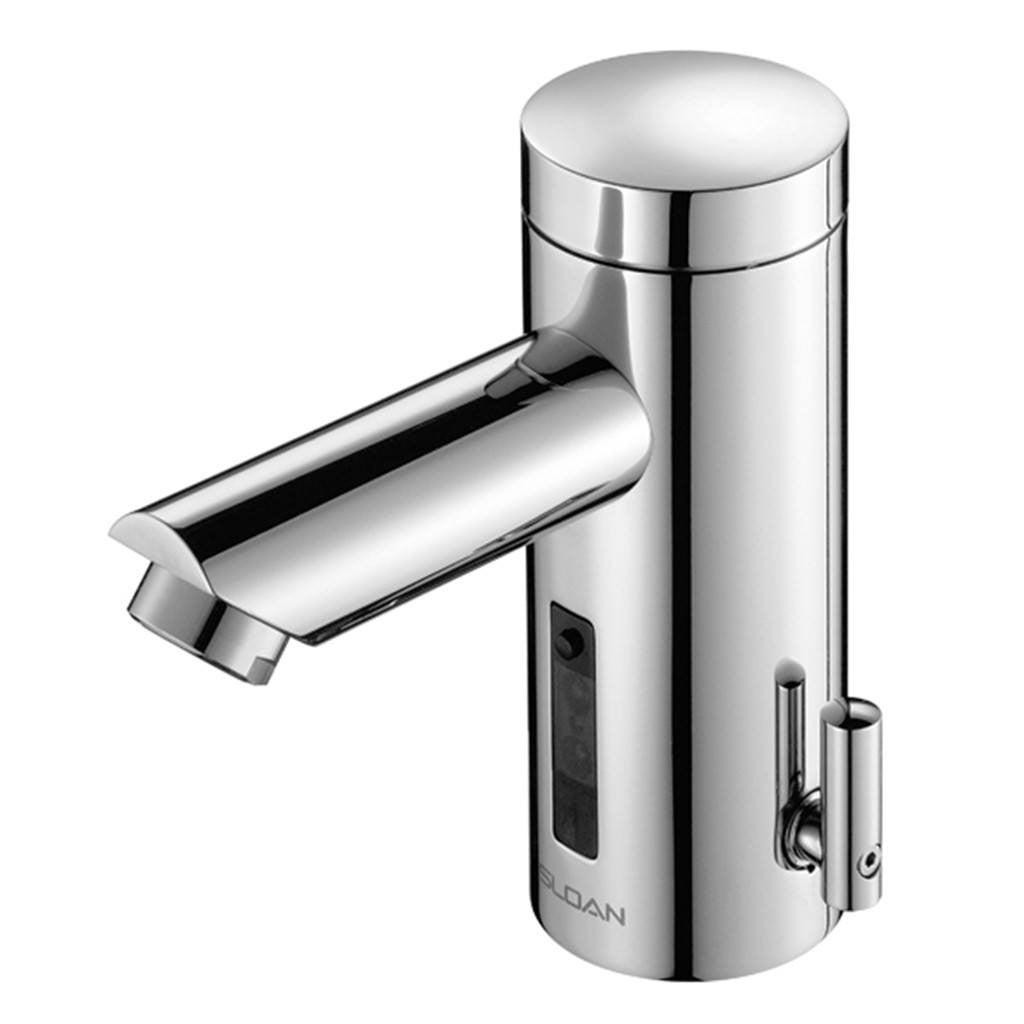

Optima Faucet 0.5 GPM with Mixer (Battery Powered)



Part Number: #83148
Manufacturer Number: EAF-200-HLT-ISM-CP-0.5GPM-AER-IR-IQ-FCT
Manufacturer Code Number: 3335054
Manufacturer: Sloan

Hardwired Less Transformer Power Supply, Integrated Side Mixer, Polished Chrome Finish, 0.5 gpm, Aerated Spray, Infrared Sensor, Optima® Hardwired-Powered Deck-Mounted Mid Body Faucet.

Flow Rate: 0.5 gpm (2 Lpm) (0.5GPM)
Spray Type: Aerated (AER)
Sensor Type: Infrared (IR)
Mounting Type: Single Hole ()
Power Supply: Hardwired Less Transformer (HLT)
Temperature Mixer: Integrated Side Mixer (ISM)
Finish: Polished Chrome (CP)
Factory Default Timeout: 30s
Factory Default GPC: 0.25
Self-Adjustment Range: 2" – 14" (51 – 356mm)
Sensor Range: 4" – 5" (102 – 127mm)
Timeout Adjustment Settings: 30s

Commercial Grade, ADA Compliant, Electronic, Sensor-Activated, Cast Brass Hand Washing Faucet with the following features:

Double Infrared Sensors with Automatic Setting Feature and Microprocessor
Automatic Self-adapting Sensor Technology
Magnetic Solenoid Valve

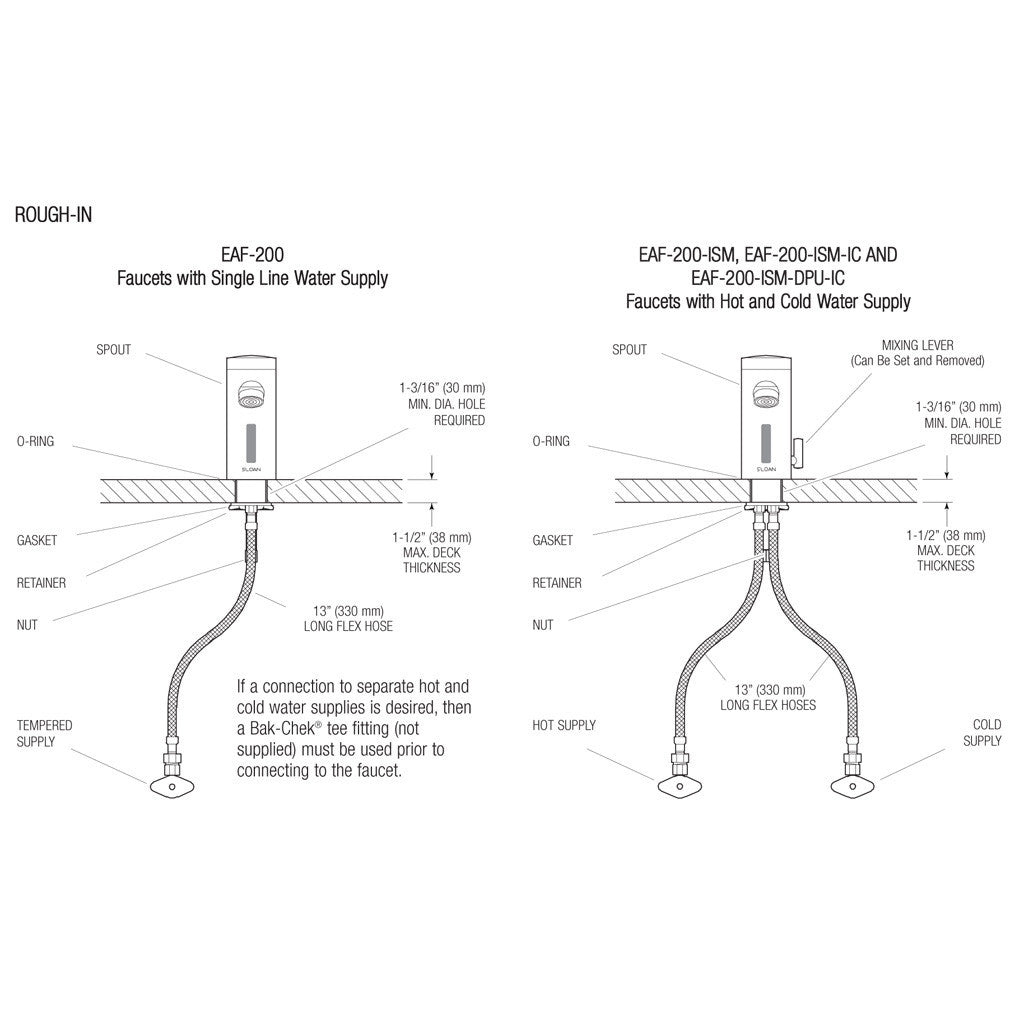

Water Supply Connection with Flexible High-pressure Hose and Strainer
6 Volt DC Plug-in Adapter (must be ordered separately for Less Adapter/Transformer (-LT) faucets)
Appropriate Mounting Hardware included
IQ-Click feature permits activation of continuous run and temporary off modes
Daisy Chain Electrical Splitter Cable included with Less transformer (-LT) faucets
Includes EAF44 Power Splitter

Compliances & Certifications:
ADA Compliant, ASME A112.18.1 Compliant, BREEAM Materials Credit, BREEAM Water Credit, CEC Compliant, cUPC Certified, cUPC Low Lead Compliant, EPD, Green Globes Materials & Resources Credit, Green Globes Water Credit, HPD, LEED Materials & Resources EPD Credit, LEED Materials & Resources HPD Credit, NYC604.4, Proposition 65, Satisfies LEED Credits, TAS, UPC Certified, UPC Low Lead Compliant

Sloan Optima 3335054 Faucet Spec Sheet
