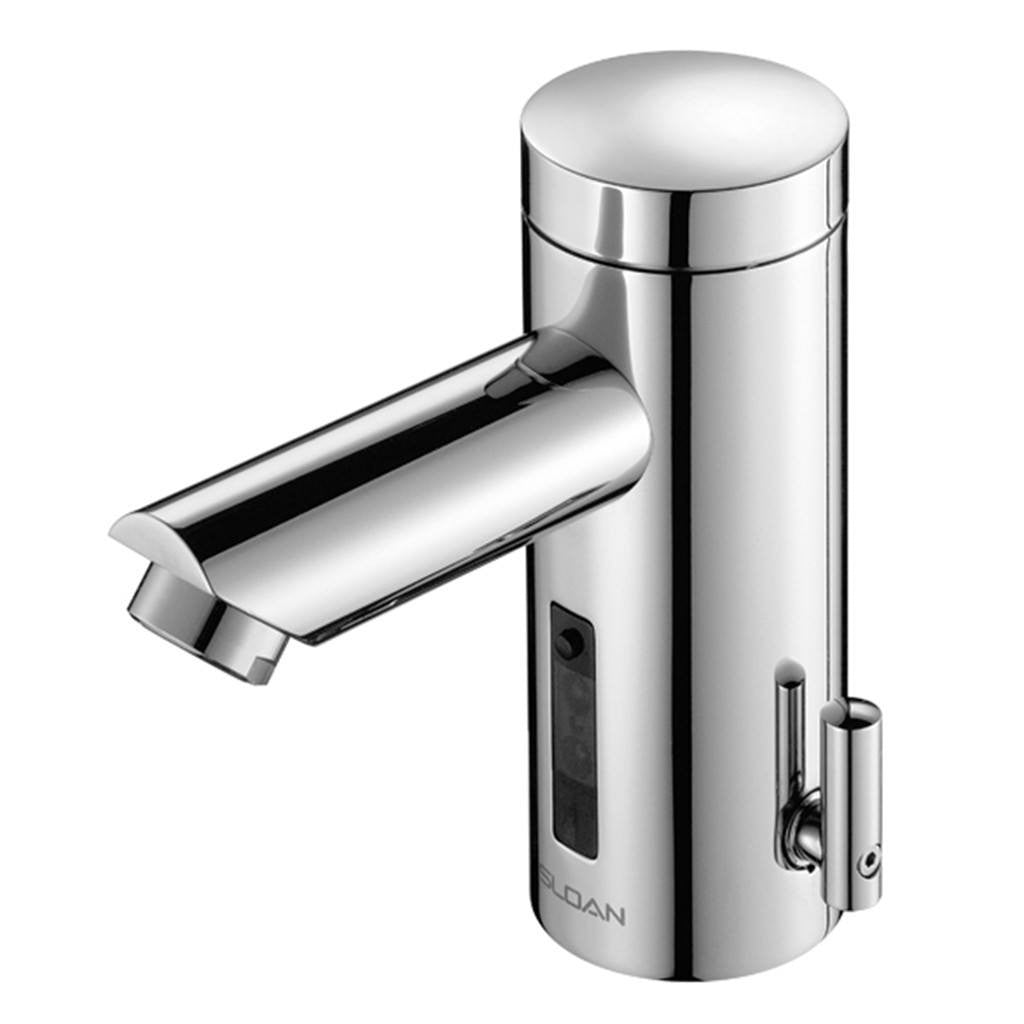

Optima Faucet 0.5 GPM with Mixer (Plug-in Transformer)

Part Number: #83147
Manufacturer Number: EAF-200-PLG-ISM-CP-0.5GPM-AER-IR-IQ-FCT
Manufacturer Code Number: 3335051
Manufacturer: Sloan

Plug Adapter Power Supply, Integrated Side Mixer, Polished Chrome Finish, 0.5 gpm, Aerated Spray, Infrared Sensor, Optima® Hardwired- Powered Deck-Mounted Mid Body Faucet.

Specifications:
• Flow Rate: 0.5 gpm (2 Lpm) (0.5GPM)
• Spray Type: Aerated (AER)
• Sensor Type: Infrared (IR)
• Mounting Type: Single Hole ()
• Power Supply: Plug Adapter (PLG)
• Temperature Mixer: Integrated Side Mixer (ISM)
• Finish: Polished Chrome (CP)
• Factory Default Timeout: 30s
• Factory Default GPC: 0.25
• Self-Adjustment Range: 2" – 14" (51 – 356mm)
• Sensor Range: 4" – 5" (102 – 127mm)
• Timeout Adjustment Settings: 30s

Features:
Commercial Grade, ADA Compliant, Electronic, Sensor-Activated, Cast Brass Hand Washing Faucet with the following features:
• Double Infrared Sensors with Automatic Setting Feature and Microprocessor
• Automatic Self-adapting Sensor Technology

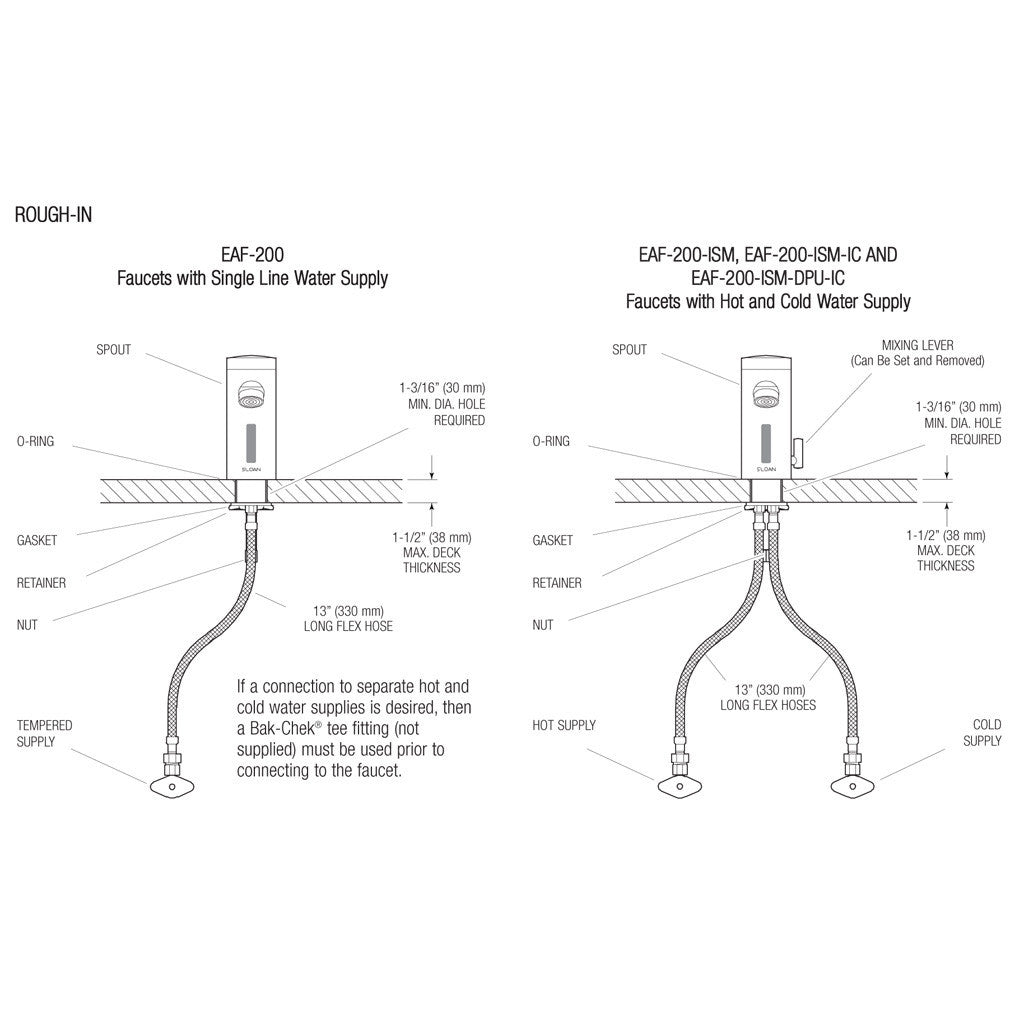

• Water Supply Connection with Flexible High-pressure Hose and Strainer
• 6 Volt DC Plug-in Adapter (must be ordered separately for Less Adapter/Transformer (-LT) faucets)
• Appropriate Mounting Hardware included
• IQ-Click feature permits activation of continuous run and temporary off modes

Compliances & Certifications:
ADA Compliant, ASME A112.18.1 Compliant, BREEAM Materials Credit, BREEAM Water Credit, CEC Compliant, cUPC Certified, cUPC Low Lead Compliant, EPD, Green Globes Materials & Resources Credit, Green Globes Water Credit, HPD, LEED Materials & Resources EPD Credit, LEED Materials & Resources HPD Credit, NYC604.4, Proposition 65, Satisfies LEED Credits, TAS, UPC Certified, UPC Low Lead Compliant

Resources
• Sloan Optima 3335051 Faucet Spec Sheet
