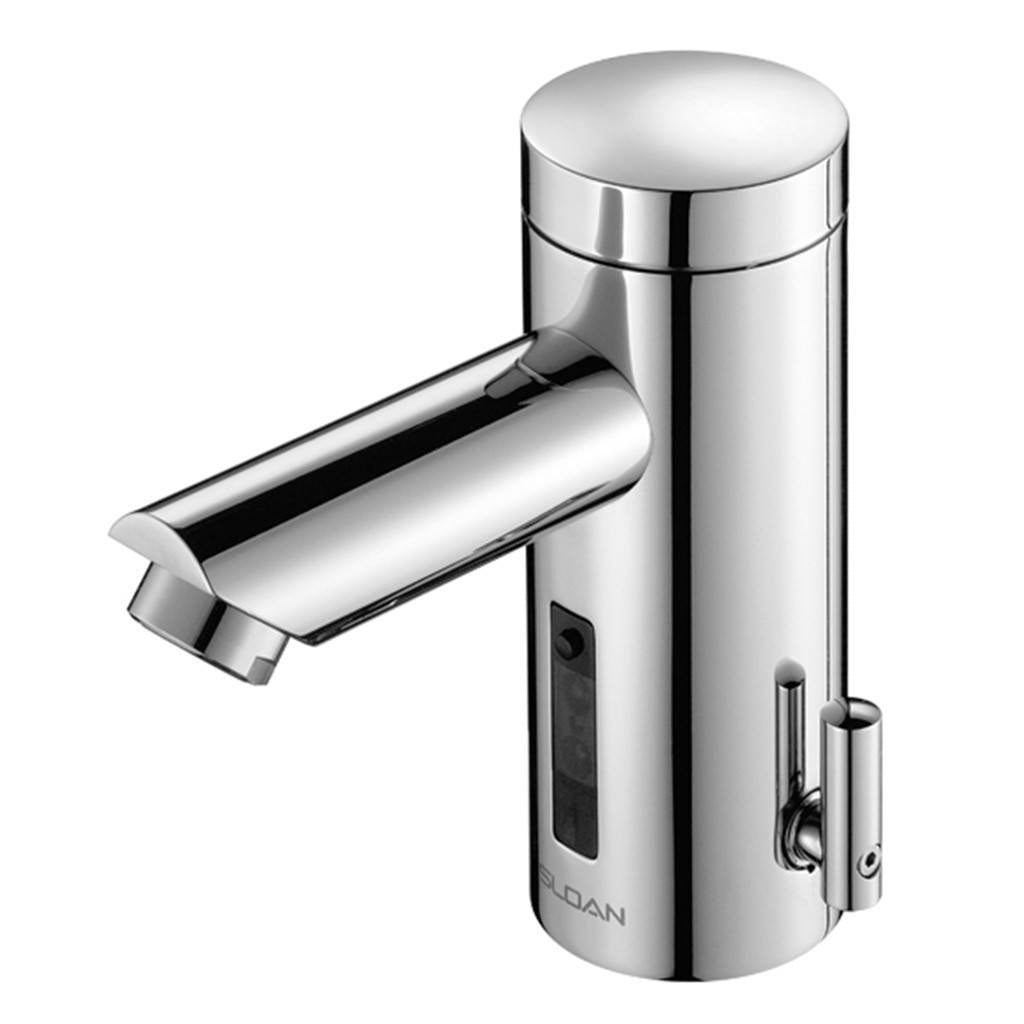

Optima Lumino Faucet 0.5 GPM with Mixer and Temperature Indication Ring (Plug Adapter)

Part Number: #87487
Mfg No.: EAF-225-PLG-ISM-CP-0.5GPM-AER-IR-IQ-FCT
Sloan Code Number: 3335075
Mfg: Sloan Valve Co

Plug Adapter Power Supply, Integrated Side Mixer, Polished Chrome Finish, 0.5 gpm, Aerated Spray, Infrared Sensor, Optima® Hardwired- Powered Deck-Mounted Mid Body Faucet.

Specifications:
• Flow Rate: 0.5 gpm (2 Lpm) (0.5GPM)
• Spray Type: Aerated (AER)
• Sensor Type: Infrared (IR)
• Mounting Type: Single Hole ()
• Power Supply: Plug Adapter (PLG)
• Temperature Mixer: Integrated Side Mixer (ISM)
• Finish: Polished Chrome (CP)
• Factory Default Timeout: 30s
• Factory Default GPC: 0.25
• Battery Life: 3 years 8,000 cycles/month
• Optional power harvesting significantly extends service life
• Timeout Adjustment Settings: 30s

Features:
Commercial Grade, ADA Compliant, Electronic, Sensor-Activated, Cast Brass Hand Washing Faucet with the following features:
• Standby mode (option) permits light ring to remain illuminated with dim white light
• Soft-off function of indicator light. Light is turned off softly after the water flow stops
• Hot adjustable water limit set point
• Modular One-piece Construction with all Concealed Components above deck
• Double Infrared Sensors with Automatic Setting Feature and Microprocessor
• Magnetic Solenoid Valve
• Water temperature revealed by Illuminated Temperature Indication Ring
• Water temperature can be user adjusted
• Security-off after 1 minute of continuous water flow (vandal- resistant construction)

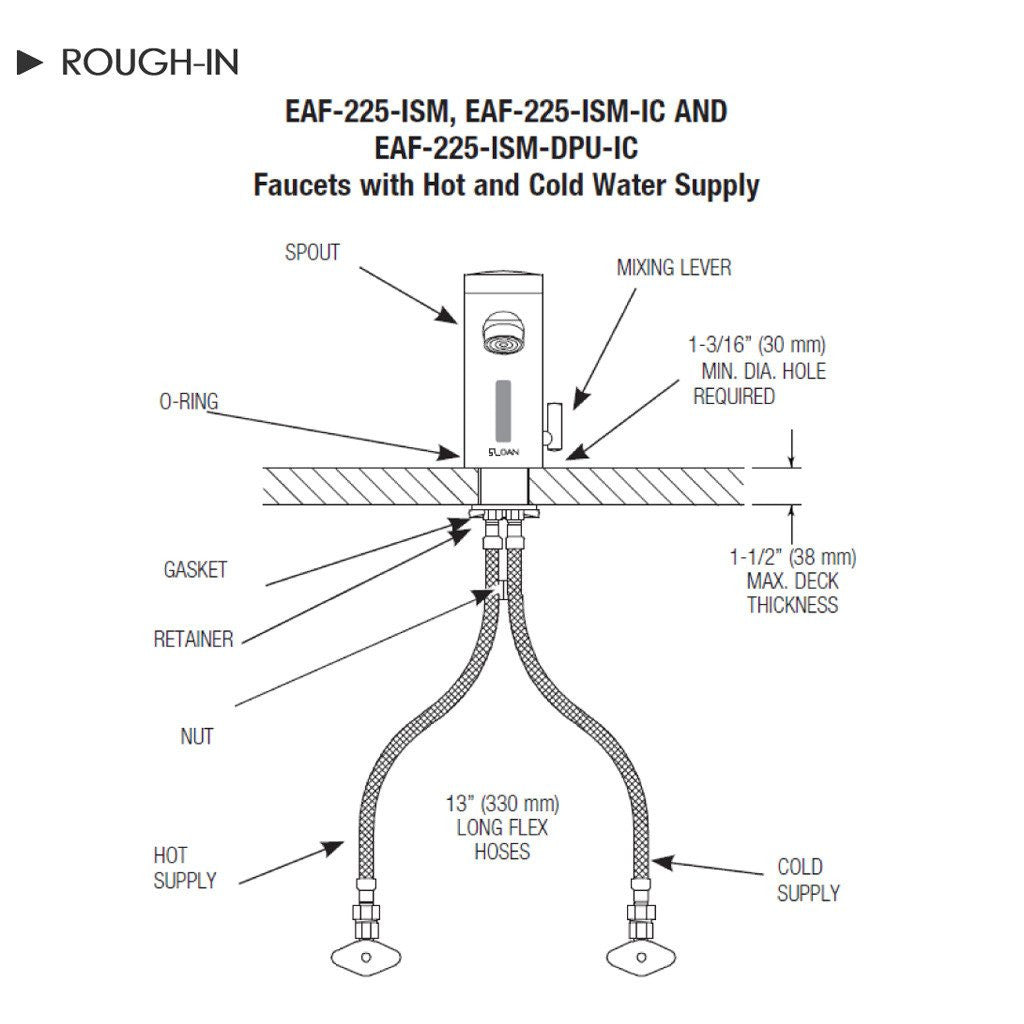

• Water Supply Connection with Flexible High-pressure Hose and Strainer
• Appropriate Mounting Hardware included
• IQ-Click feature permits activation of continuous run and temporary off modes


Compliance’s & Certifications:
ADA Compliant, ASME A112.18.1 Compliant, CEC Compliant, cUPC Certified, cUPC Low Lead Compliant, GPC 0.25 or less, NYC604.4, Proposition 65, TAS, UPC Certified, UPC Low Lead Compliant

Resources:
• Sloan Optima 3335075 Faucet Spec Sheet
