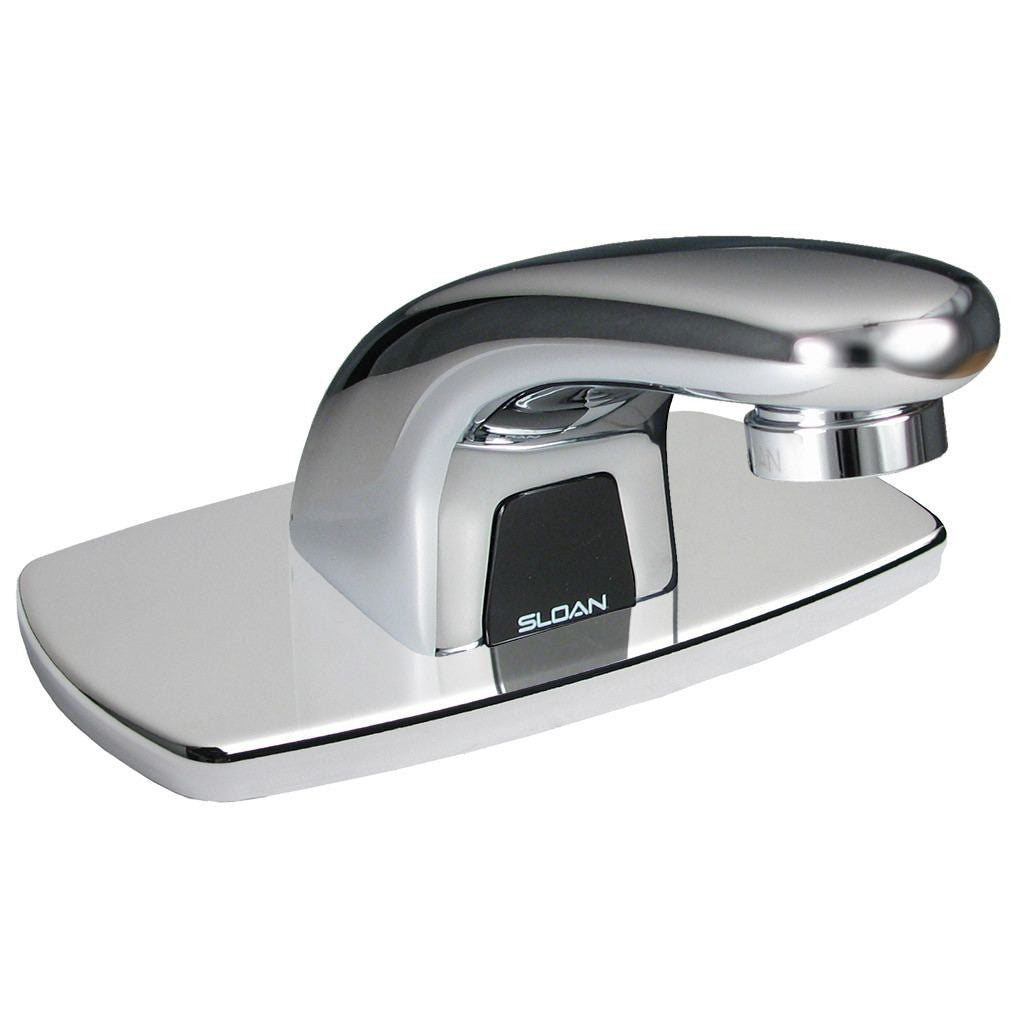

Optima Bluetooth Pedestal Faucet 0.5 GPM Single Supply with 4" Center Base Plate (Box Mount Transformer)
Part Number: #82318
Manufacturer Number: ETF-610-4-PLG-TEE-CP-0.5GPM-MLM-IR-FCT
Manufacturer Code Number: 3365163BT
Manufacturer: Sloan
This plug adapter power supply Bluetooth faucet is by Sloan. Faucet has a flow rate of 0.5 GPM with a multi-laminar spray. This faucet has a single-hole, deck mounting type with a 4-inch trim plate. It utilizes an infrared sensor to activate. With the faucet having bluetooth technology all of the below deck installation is now housed in a singular control box that can be controlled remotely (via Bluetooth) through the Sloan Connect App on a smartphone. Unit has a polished chrome finish on the cast brass body. Includes quick-connect fittings, twist-off/shut-off solenoid assembly, removable battery cartridge, and flexible power supply. Sloan EBF-615 low-body style faucet. Learn more about all of the improvements included in the Bluetooth update by Sloan in our Bluetooth Optima Faucets blog article.
Specifications:
• Spray Type: Multi-Laminar (MLM)
• Sensor Type: Infrared (IR)
• Mounting Type: Single Hole ()

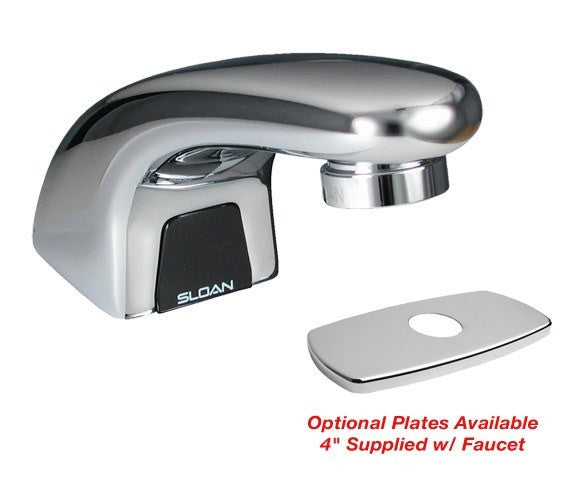

• Trim Plate: 4" (102mm) (4)
• Power Supply: Plug Adapter (PLG)

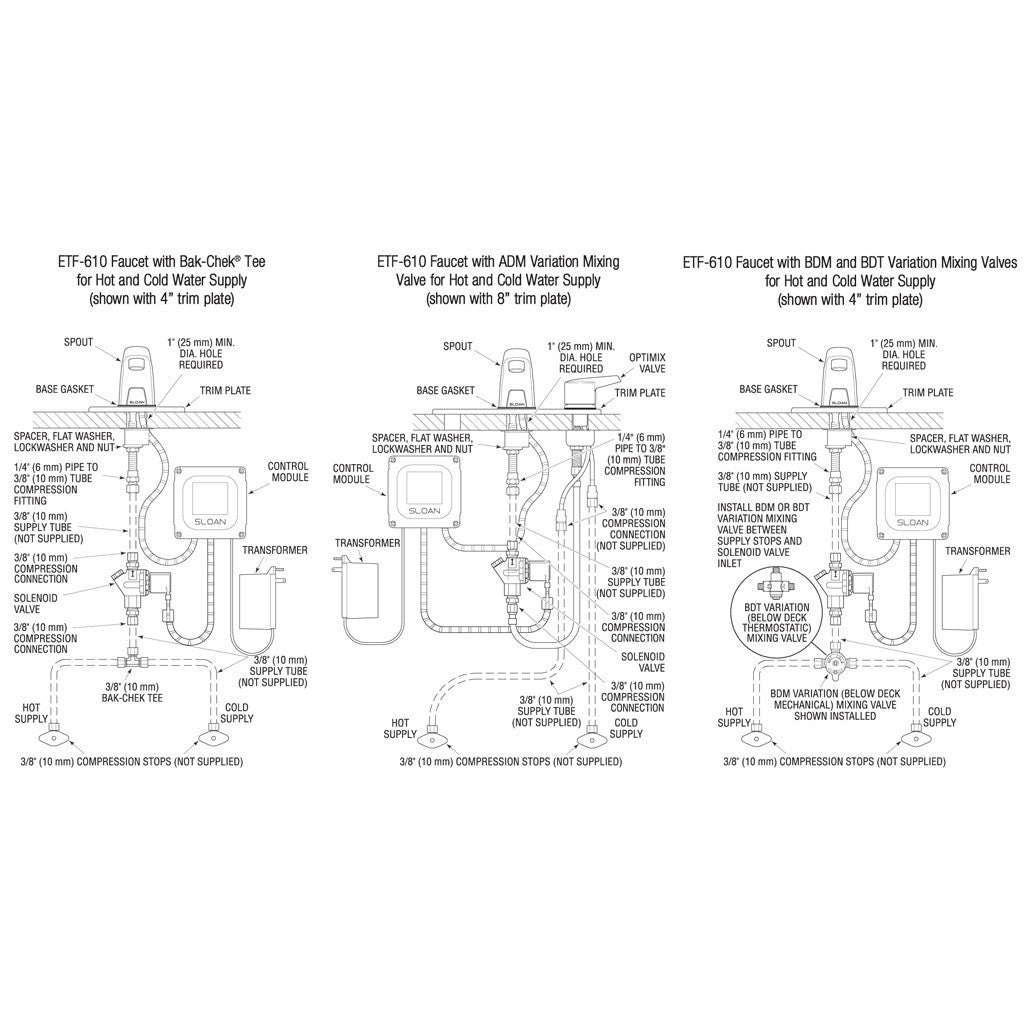

• Temperature Mixer: Back-Check Tee (TEE)
• Finish: Polished Chrome (CP)
• Factory Default Timeout: 30s
• Factory Default GPC: 0.25
• Battery Life: 3 years 8,000 cycles/month
• Optional power harvesting significantly extends service life
• Self-Adjustment Range: 0” (0mm)
• Sensor Range: 0” (0mm)
• Timeout Adjustment Settings: 30s
Features:
• Cast Brass Spout
• Quick Connect Fittings
• Integrated Water Shut-off
• Wireless Settings Adjustment
• On-demand or Metered activation
• Hygienic Line Flush
• Water Usage and Battery Strength Reporting
• Self-adapting Sensor
Compliances & Certifications:
ADA Compliant, ASME A112.18.1 Compliant, CalGreen Compliant, CEC Compliant, cUPC Certified, cUPC Low Lead Compliant, GPC 0.25 or less, NYC604.4, Proposition 65, TAS, UL Certified, UPC Certified, UPC Low Lead Compliant
Resources
• Sloan Optima 3365163BT Bluetooth Faucet Spec Sheet
• ETF-610 Parts Breakdown
