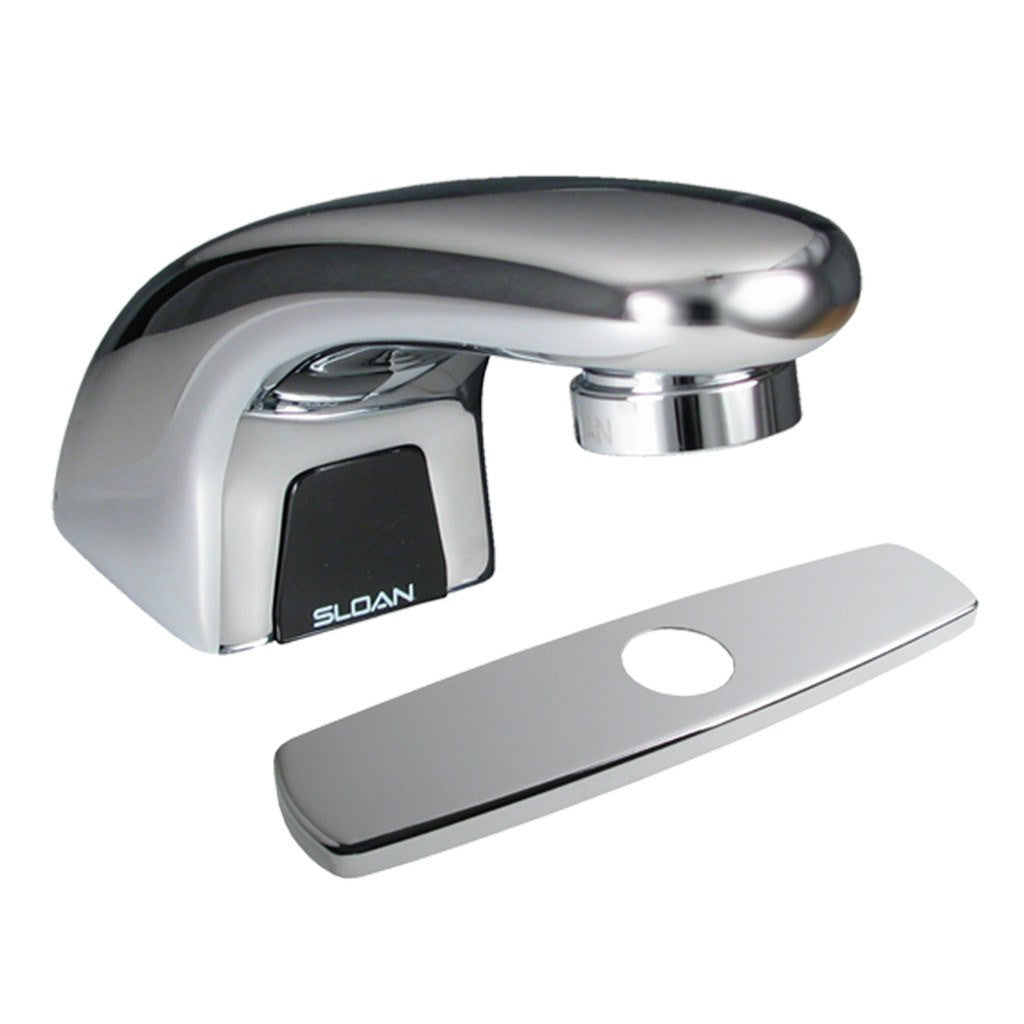

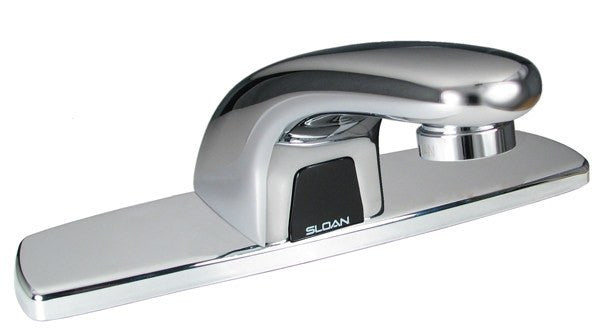

Optima Bluetooth Pedestal Faucet 0.5 GPM Single Supply with 8" Center Trim Plate (Battery Powered)
Part Number: #54524
Manufacturer Number: EBF-615-8-BAT-TEE-CP-0.5GPM-MLM-IR-FCT
Manufacturer Code Number: 3315152BT
Manufacturer: Sloan
This battery-powered Bluetooth faucet is by Sloan. The faucet has a flow rate of 0.5 GPM with a multi-laminar spray. This faucet has a single-hole, deck mounting type with an 8-inch trim plate. It utilizes an infrared sensor to activate. With the faucet having Bluetooth technology all of the below deck installation is now housed in a singular control box that can be controlled remotely (via Bluetooth) through the Sloan Connect App on a smartphone. The unit has a polished chrome finish on the cast brass body. Includes quick-connect fittings, twist-off/shut-off solenoid assembly, removable battery cartridge, and flexible power supply. Sloan EBF-615 low-body style faucet. Learn more about all of the improvements included in the Bluetooth update by Sloan in our Bluetooth Optima Faucets blog article.
Specifications:
• Flow Rate: 0.5 gpm (2 Lpm) (0.5GPM)
• Spray Type: Multi-Laminar (MLM)
• Sensor Type: Infrared (IR)
• Mounting Type: Single Hole ()
• Trim Plate: 8" (203mm) (8)
• Power Supply: Battery (BAT)
• Temperature Mixer: Back-Check Tee (TEE)
• Finish: Polished Chrome (CP)
• Factory Default Timeout: 30s
• Factory Default GPC: 0.25
• Battery Life: 3 years 8,000 cycles/month
• Optional power harvesting significantly extends service life
• Self-Adjustment Range: 1" – 14" (25 – 356mm)
• Sensor Range: 4" – 5" (102 – 127mm)
• Timeout Adjustment Settings: 30s
Features:
• Cast Brass Spout
• Quick Connect Fittings
• Integrated Water Shut-off
• Wireless Settings Adjustment
• On-demand or Metered activation
• Hygienic Line Flush
• Water Usage and Battery Strength Reporting
• Self-adapting Sensor
Compliances & Certifications:
ADA Compliant, ASME A112.18.1 Compliant, CalGreen Compliant, CEC Compliant, cUPC Certified, cUPC Low Lead Compliant, GPC 0.25 or less, NYC604.4, Proposition 65, TAS, UPC Certified, UPC Low Lead Compliant
Resources
• Sloan Optima 3315152BT Bluetooth Faucet Spec Sheet
• EBF-615 Parts Breakdown
