Regal Flushometer 1.6 GPF Speciality Rough Brass with 2 – 10-3/4 LDIM for Closet

Part Number: #19056
Sloan Model Number: REGAL 952-1.6-XL
Sloan Code Number: 3984808
Manufacturer: Sloan

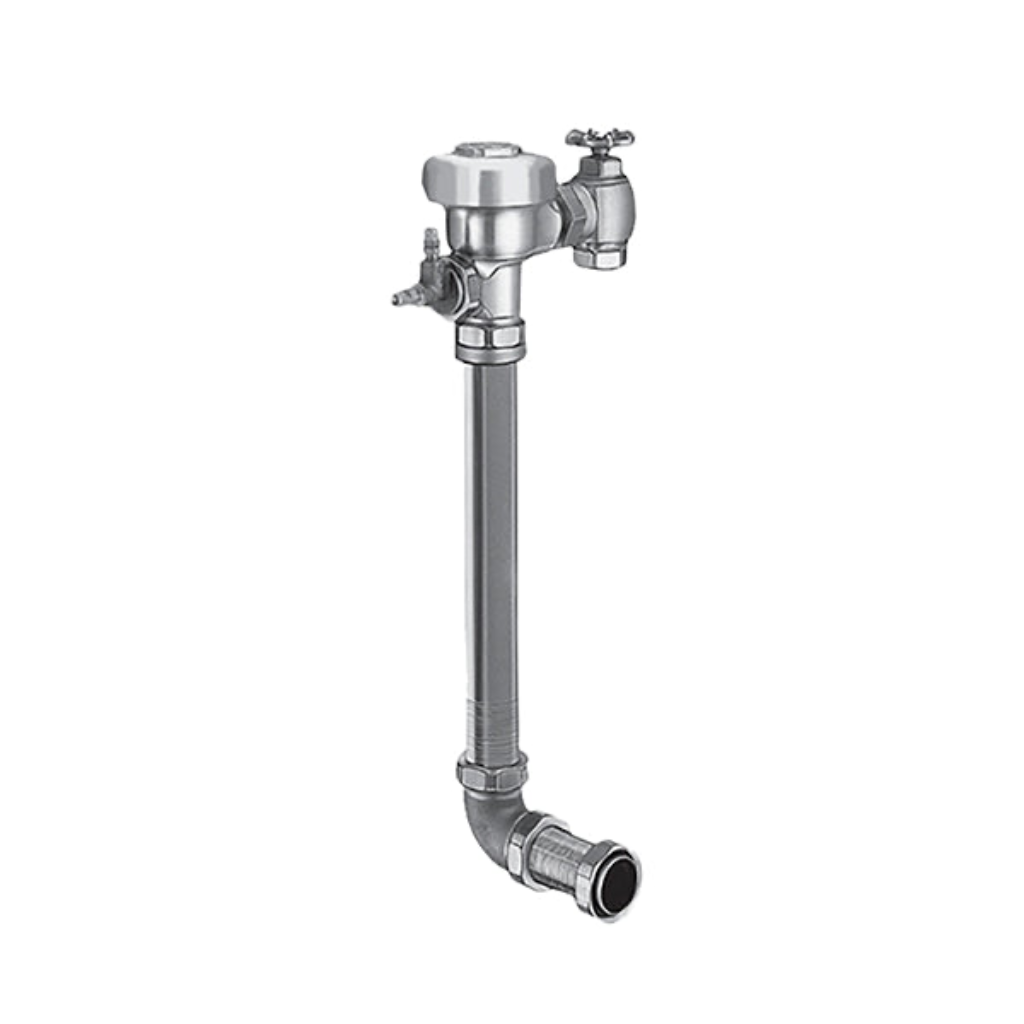

This 1.6 GPF Concealed Regal Closet Flushometer with XL Sweat Solder Adapter Kit is from Sloan. It is a manual hydraulic flushometer with an "L" Dimension range of 2-inch to 10-3/4-inch. Fixture has a rough brass finish. Sloan model number REGAL 952-1.6-XL, code number 3984808.

Specs:
• Flush Volume: 1.6 GPF
• Finish: Rough Brass
• Valve: Diaphragm
• Valve Body Material: Semi-red Brass
• Fixture Type: Water Closet
• Fixture Connection: Rear Spud
• Rough-In Dimension: 14-1/2"
• Spud Coupling: 1-1/2"
• Supply Pipe: 1"
• L Dimension: 2" – 10-3/4"
• Adapter: XL Sweat Solder Adapter Kit

Features:
• Valve designed to accept Low and Ultra-Low Consumption Pistons only to ensure Water Conservation
• ADA Compliant Non-Hold-Open Actuator (not included, order separately)
• Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation.
• Stop Seat and Vacuum Breaker to be molded from PERMEX™ Rubber Compound for Chloramine Resistance
• 1" I.P.S. Wheel Handle Bak-Chek® Angle Stop

Compliances & Certifications:
ADA Compliant, BAA Compliant, BABAA Compliant, cUPC Certified, UPC Certified

Resources:
• Sloan 3984808 Spec Sheet

*Note: The spec sheet for this unit is not for this exact model. Sloan does not have a spec sheet for this specific model.
