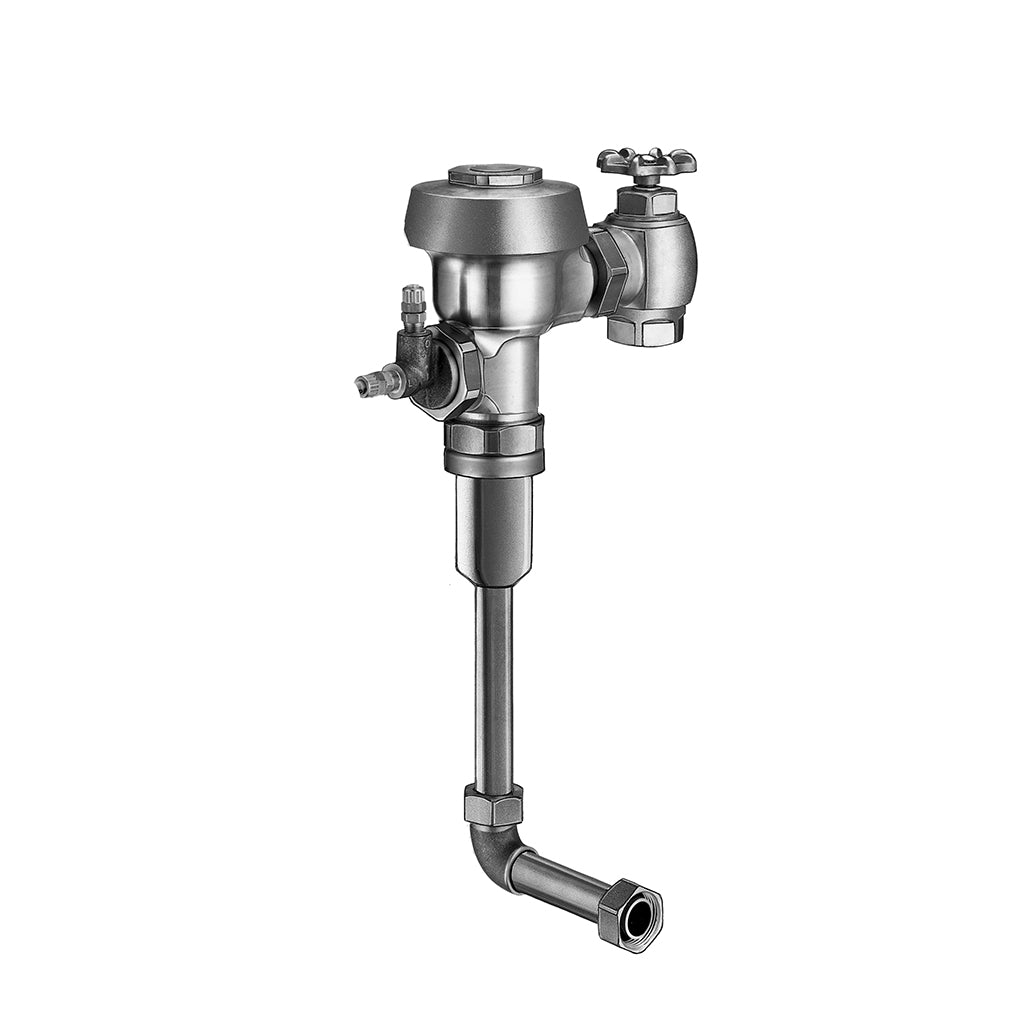

Royal Flushometer 1.0 GPF Speciality Rough Brass with 2–14-3/4 inch LDIM for Urinal

Part Number: #21528
Sloan Model Number: ROYAL 995-1.0-MBFW
Sloan Code Number: 3915504
Manufacturer: Sloan

This 1.0 GPF Concealed Royal Urinal Flushometer is from Sloan. It is a manual hydraulic flushometer with a 2-inch to 14-3/4-inch "L" Dimension. Features a metal button fixture wall actuator push button. Unit has a rough brass finish. Sloan’s model number ROYAL 995-1.0-MBFW, code number 3915504.

Specs:
• Flush Volume: 1.0 GPF
• Finish: Rough Brass
• Valve: Diaphragm
• Valve Body Material: Semi-red Brass
• Fixture Type: Urinal
• Fixture Connection: Rear Spud
• Rough-In Dimension: 13-1/2"
• Spud Coupling: 3/4"
• Supply Pipe: 3/4"
• L Dimension: 2" - 14-3/4"
• Push Button: Metal Button Fixture Wall Actuator

Features:
• Includes HY100A Push Button Assembly

Compliances & Certifications:
ADA Compliant, BAA Compliant, BABAA Compliant, cUPC Certified, UPC Certified

Resources:
• Sloan 3915504 Spec Sheet

Do you have the tools needed to install your new flush valve? View our Flushometer Tool Guide and discover which tools you need.
