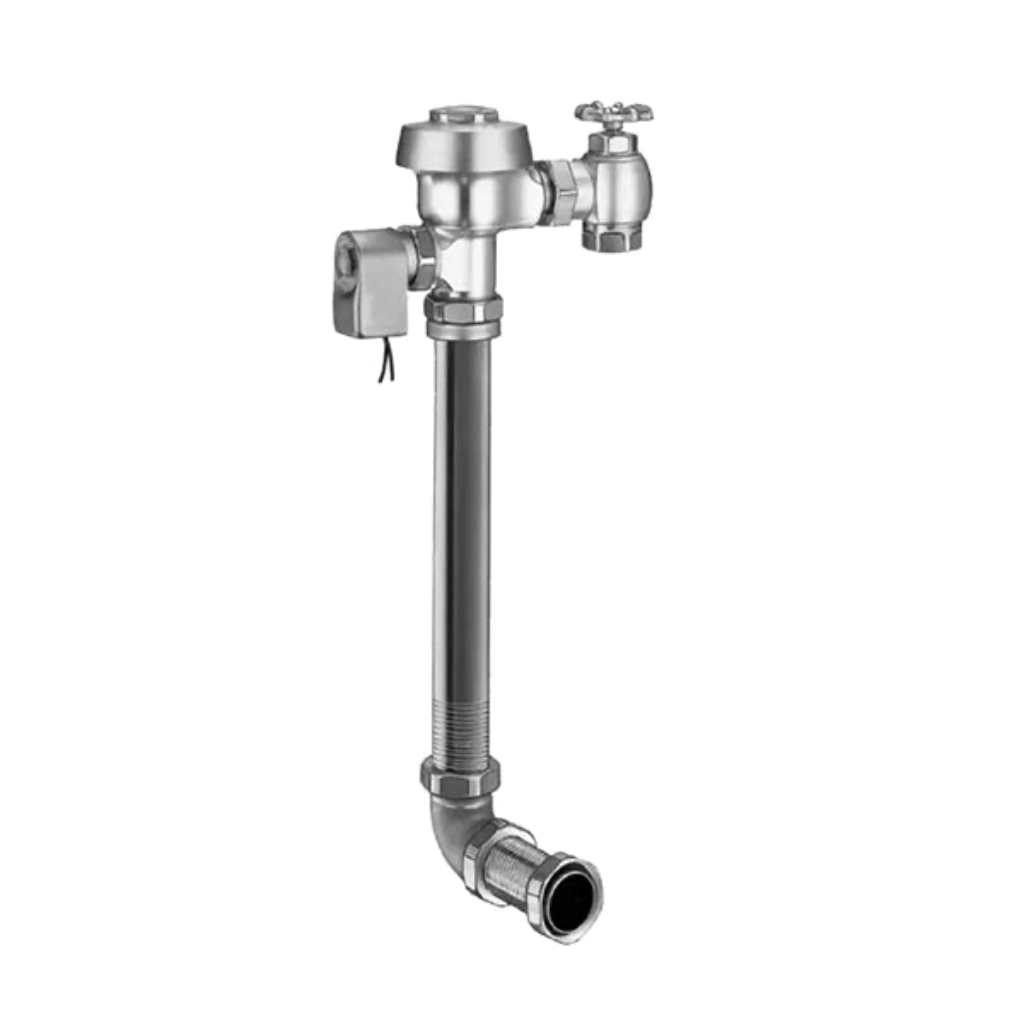

Royal Concealed Solenoid (Less Sensor) Closet Flushometer with Modular Plug 1.6 GPF

Part Number: #48270
Sloan Model Number: ROYAL 603 ES-ESM-1.6-RB-24V
Sloan Code Number: 3918196
Manufacturer: Sloan

This 1.6 GPF Concealed Royal Closet Flushometer is from Sloan. The unit features include rear spud connection, single flush, hardwired, solenoid-operated with modular plug, and 24V. Flushometer has a rough brass finish. Sloan’s model number ROYAL 603 ES-ESM-1.6-RB-24V, code number 3918196.

Specifications:
• Flush Volume: 1.6 GPF
• Finish: Rough Brass
• Power Type: Hardwired
• Valve: Diaphragm
• Valve Body Material: Semi-red Brass
• Fixture Type: Water Closet
• Fixture Connection: Rear Spud
• Rough-In Dimension: 16"
• Spud Coupling: 1-1/2"
• Supply Pipe: 1"
• Voltage: 24V

Features:
• PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
• Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
• Valve shall be in compliance to the applicable sections of ASSE 1037

Compliances & Certifications:
BAA Compliant, BABAA Compliant, cUPC Certified, IAPMO, UL Certified, USA

Resources:
• Sloan 3918196 Spec Sheet

Do you have the tools needed to install your new flush valve? View our Flushometer Tool Guide and discover which tools you need.
