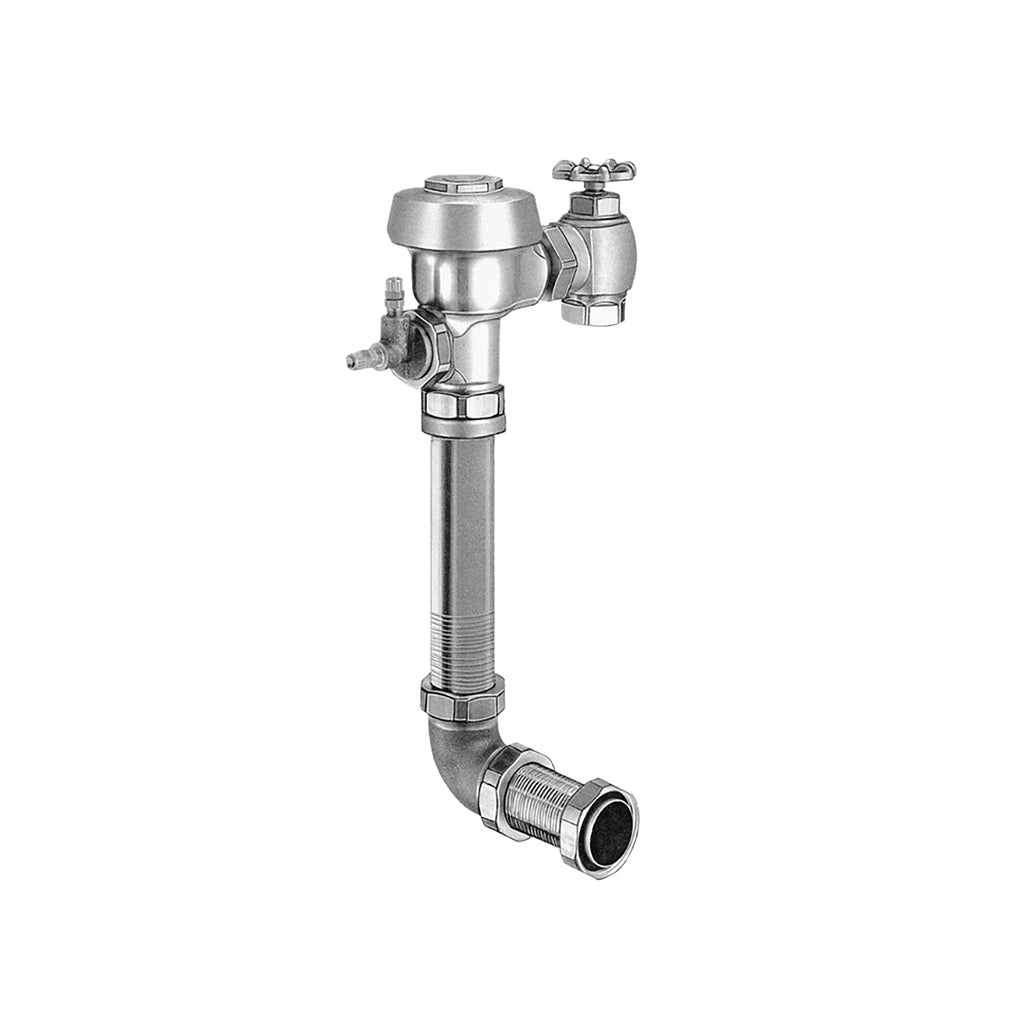

Royal Flushometer 1.6 GPF Speciality Rough Brass

Part Number: #80003
Sloan Model Number: ROYAL 9603-1.6
Sloan Code Number: 3918107
Manufacturer: Sloan

This 1.6 GPF Concealed Royal Closet Flushometer is from Sloan. It is a specialty manual hydraulic flushometer. Unit has a rough brass finish. Note that the Actuator is Not Included. Sloan’s model number ROYAL 9603-1.6, code number 3918107.

Specs:
• Flush Volume: 1.6 GPF
• Finish: Rough Brass
• Valve: Diaphragm
• Valve Body Material: Semi-red Brass
• Fixture Type: Water Closet
• Fixture Connection: Rear Spud
• Rough-In Dimension: 16"
• Spud Coupling: 1-1/2"
• Supply Pipe: 1"

Features:
• ADA Compliant Non-Hold-Open feature type Actuator (not included, must order separately)
• Vacuum Breaker
• Non-Hold-Open Push Button, Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
• Dual Filtered Bypass Diaphragm
• Handle Packing, Stop Seat and Vacuum Breaker Molded from PERMEX® Rubber Compound for Chloramine Resistance
• 1" I.P.S. Wheel Handle Bak-Chek® Angle Stop
• Elbow Flush Connection and Coupling for 1-1/2” NPT Back Inlet (for connection in the pipe chase — flush connection through the wall not provided)

Compliances & Certifications:
BAA Compliant, BABAA Compliant, cUPC Certified, UPC Certified.

Resources:
• Sloan 3918107 Spec Sheet

Do you have the tools needed to install your new flush valve? View our Flushometer Tool Guide and discover which tools you need.
