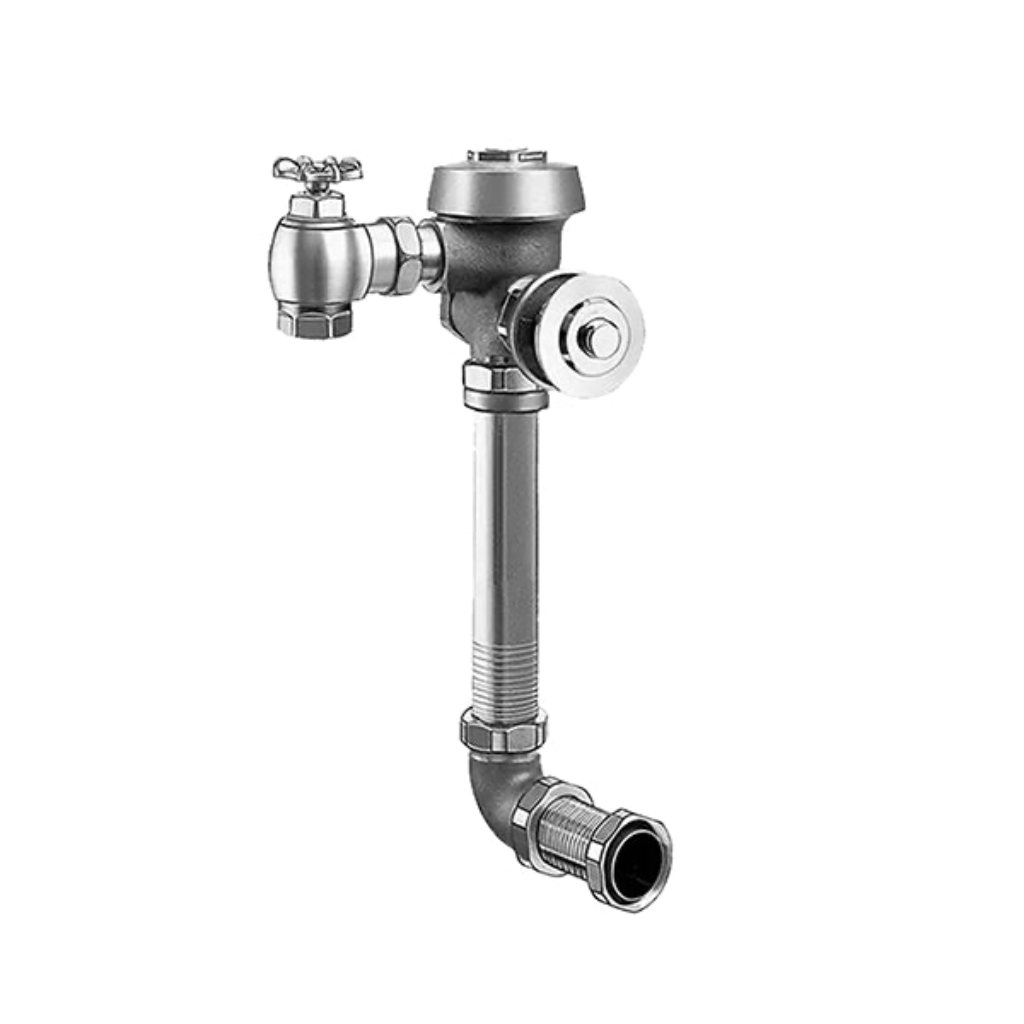

Royal Flushometer 3.5 GPF Speciality Rough Brass with 12-3/4" LDIM for PWT

Part Number: #48472
Sloan Model Number: ROYAL 603-3.5-RB-12-3/4-LDIM
Sloan Code Number: 3018112
Manufacturer: Sloan

This 3.5 GPF Concealed Royal Closet Flushometer is from Sloan. It is a manual hydraulic flushometer with a 12-3/4-inch L Dimension. The unit has a rough brass finish. Designed for compatibility with Sloan PWT systems. Sloan model number ROYAL 603-3.5-RB-12-3/4-LDIM, code number 3018112.

Specs:
• Flush Volume: 3.5 GPF
• Finish: Rough Brass
• Valve: Diaphragm
• Valve Body Material: Semi-red Brass
• Fixture Type: Water Closet
• Fixture Connection: Rear Spud
• Rough-In Dimension: 16"
• Spud Coupling: 1-1/2"
• Supply Pipe: 1"
• L Dimension: 12-3/4"

Features:
• Features all the performance benefits of a standard concealed, diaphragm model flushometer with added durability to withstand rough environments
• PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
• Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
• Valve shall be in compliance to the applicable sections of ASSE 1037

Compliances & Certifications:
BAA Compliant, IAPMO, Made in the USA, UPC Certified

Resources:
• Sloan 3018112 Spec Sheet

Do you have the tools needed to install your new flush valve? View our Flushometer Tool Guide and discover which tools you need
