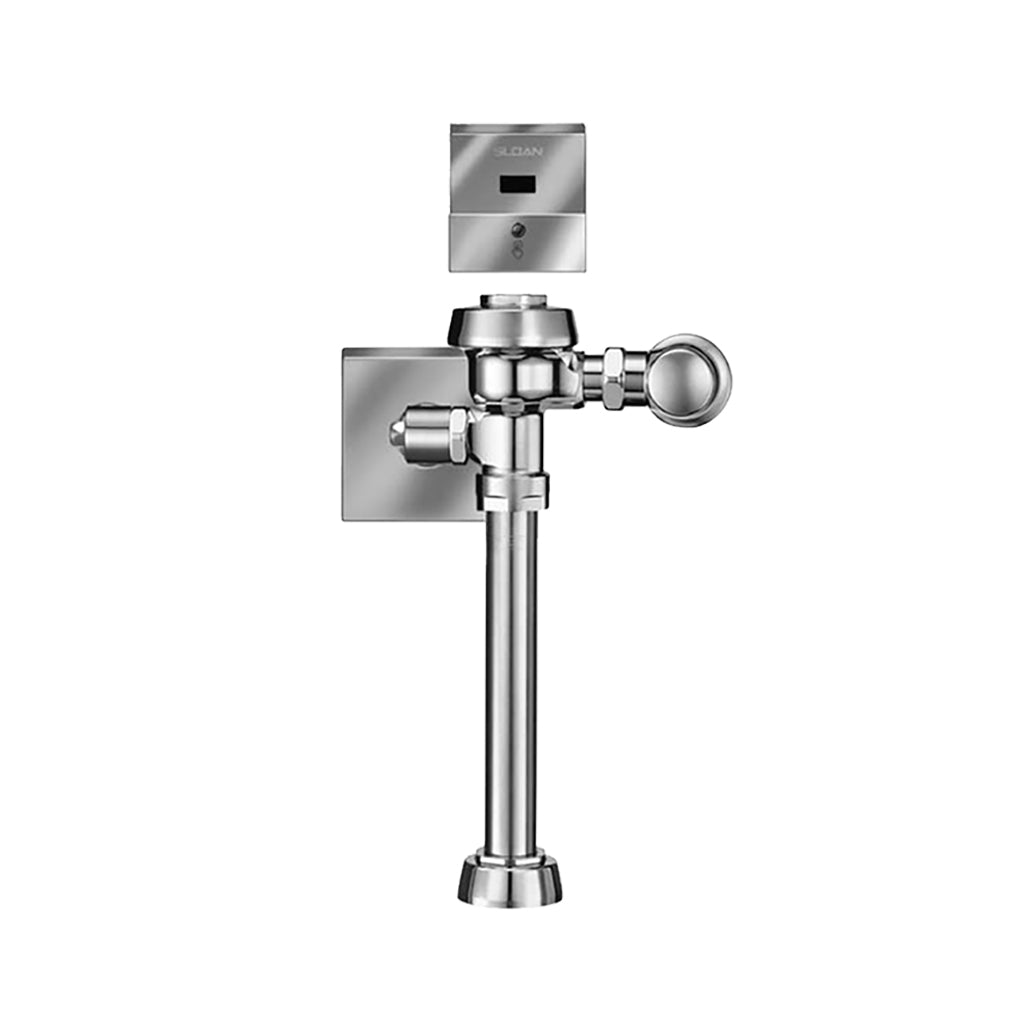

Royal ESS Sensor Flushometer 1.6 GPF for Closet (Hardwired)

Part Number: #19086
Sloan Model Number: ROYAL 113 ESS-1.6-HW
Sloan Code Number: 3450249
Manufacturer: Sloan

This 1.6 GPF Royal 113 Sensor Flushometer is a top spud, single flush, handwired exposed flushometer designed for use with water closet (toilet) applications.

Specifications:
• Flush Volume: 1.6 GPF
• Finish: Polished Chrome
• Power Type: Hardwired
• Valve: Diaphragm
• Valve Body Material: Semi-red Brass
• Fixture Type: Water Closet
• Fixture Connection: Top Spud
• Rough-In Dimension: 16"
• Spud Coupling: 1-1/2"
• Supply Pipe: 1"
• Override: Electrical
• Control Stop: 1"
• Voltage: 24V

Features:
• PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
• Handle Packing, Main Seat, Stop Seat, and Vacuum Breaker Molded from PERMEX® Rubber Compound for Chloramine resistance
• User friendly three (3) second Flush Delay
• Sweat Solder Adapter with Cover Tube and Cast Wall Flange with Set Screw
• OPTIMA® EL-1500 Self-Adaptive Infrared Sensor with Indicator Light
• Die Cast Sensor Plate with no visible Fasteners (for 2-gang Electrical Box)
• High Back Pressure Vacuum Breaker Flush Connection with One-Piece Bottom Hex Coupling Nut, Spud Coupling, and Flange for 1-1/2" Top Spud
• Non-Hold-Open Integral Solenoid Operator, Fixed Metering Bypass, and No External Volume Adjustment to Ensure Water Conservation
• Courtesy Flush® Override Button
• 1" I.P.S. Screwdriver Bak-Chek® Angle Stop with Free Spinning Vandal Resistant Stop Cap

Compliancies & Certifications:
ADA Compliant, BAA Compliant, BABAA Compliant, cUPC Certified,UL Certified, UPC Certified

Resources:
• Sloan Royal Flushometer 3450249 Spec Sheet

Do you have the tools needed to install your new flush valve? View our Flushometer Tool Guide and discover which tools you need.
