Sloan Single Flush Side Mount Flushometer 1.6 GPF for Closet

$356.80

86874

Part Number: #86874
Sloan Model Number: SLOAN 111 SFSM-1.6
Sloan Code Number: 3780039
Manufacturer: Sloan

1.6 GPF, Polished Chrome Finish, Fixture Connection Top Spud, Single Flush, Battery, Sloan® Exposed Sensor Water Closet Flushometer

Specifications:
• Flush Volume: 1.6 GPF
Finish: Polished Chrome
Power Type: Battery
Valve: Diaphragm
Valve Body Material: Semi-red Brass
Fixture Type: Water Closet
Fixture Connection: Top Spud

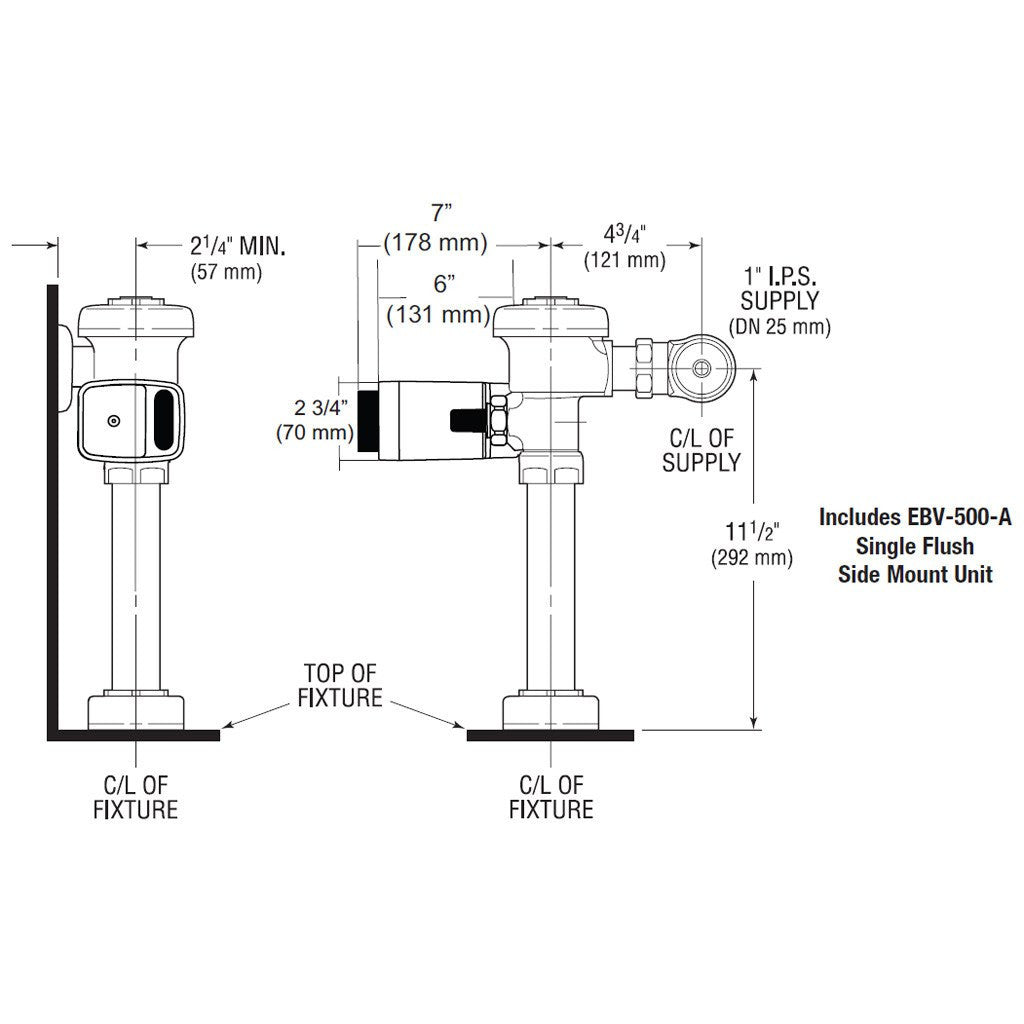

Rough-In Dimension: 11 1⁄2"
Spud Coupling: 1-1/2"
Supply Pipe: 1"

Features:
• True Mechanical Override Flush Button
• Four (4) size C alkaline batteries included
• “Low Battery” Flashing LED
• “User in View” Flashing LED
• 72-Hour Sentinel Flush
• 1” I.P.S. Screwdriver Bak-Chek® Angle Stop with Vandal Resistant Stop Cap
• Sweat Solder Adapter w/Cover Tube and Cast Wall Flange with Set Screw
• No External Volume Adjustment to Ensure Water Conservation
• Stop Seat and Vacuum Breaker Molded from PERMEX® Rubber Compound for Chloramine resistance

Compliances & Certifications:
ADA Compliant, cUPC Certified, BAA Compliant

Resources:
View Sloan 3780039 Spec Sheet

Do you have the tools needed to install your new flush valve? View our Flushometer Tool Guide and discover which tools you need.
