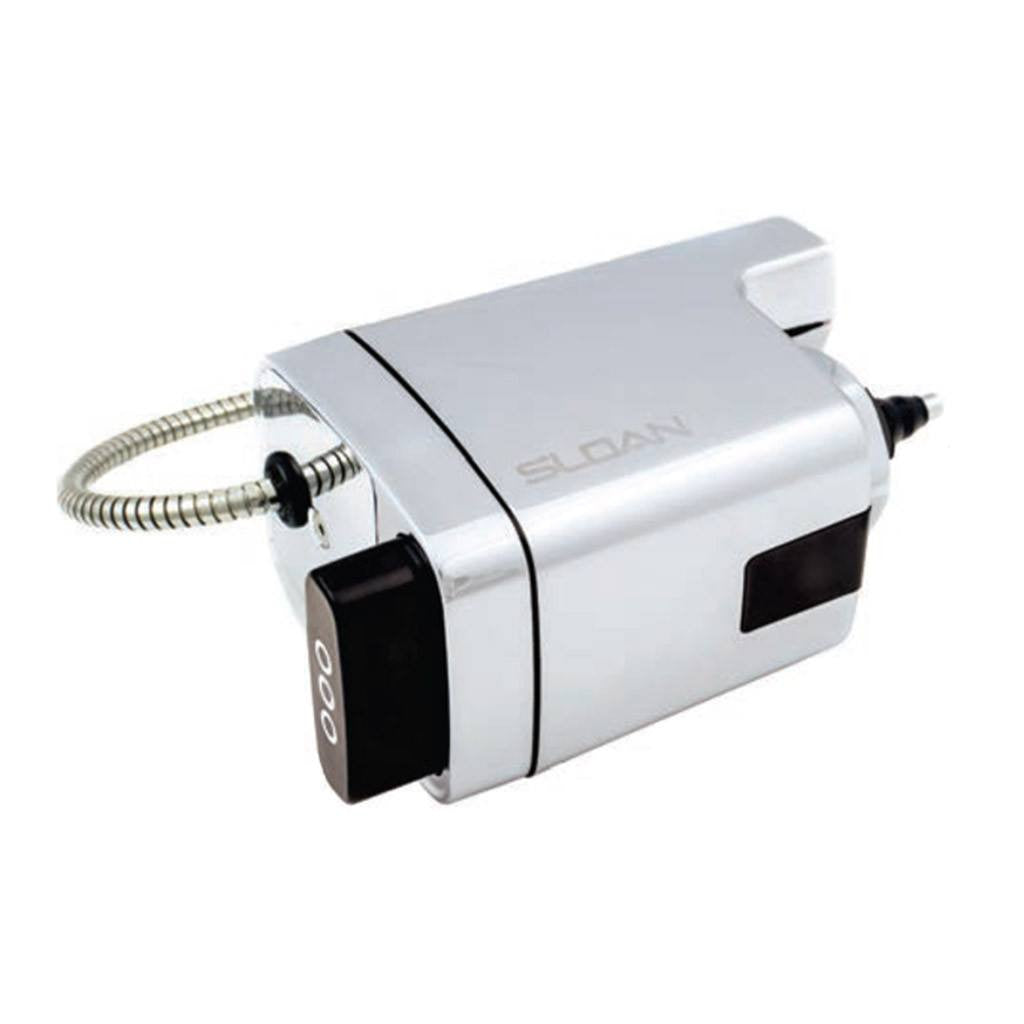

Sloan EL700A-HW Single Flush Side Mount Operator (Hardwired)

Part Number: #87854
Sloan Model Number: EL700A-HW
Sloan Code Number: 3345100
Manufacturer: Sloan

Polished Chrome Finish, Fixture Connection Top Spud, Single Flush, Hardwired, Exposed Sensor Hardwired Urinal/Water Closet Retrofit Flushometer.

Specifications:
Finish: Polished Chrome (CP)
Power Type: Hardwired (HW)
Valve: Diaphragm
Valve Body Material: Semi-red Brass
Fixture Type: Urinal/Water Closet Fixture
Connection: Top Spud

Features:
• Non-Hold-Open True Mechanical Override Full Flush Button
• User-friendly three (3) second flush delay
• “User in View” Flashing LED
• No External Volume Adjustment to Ensure Water Conservation

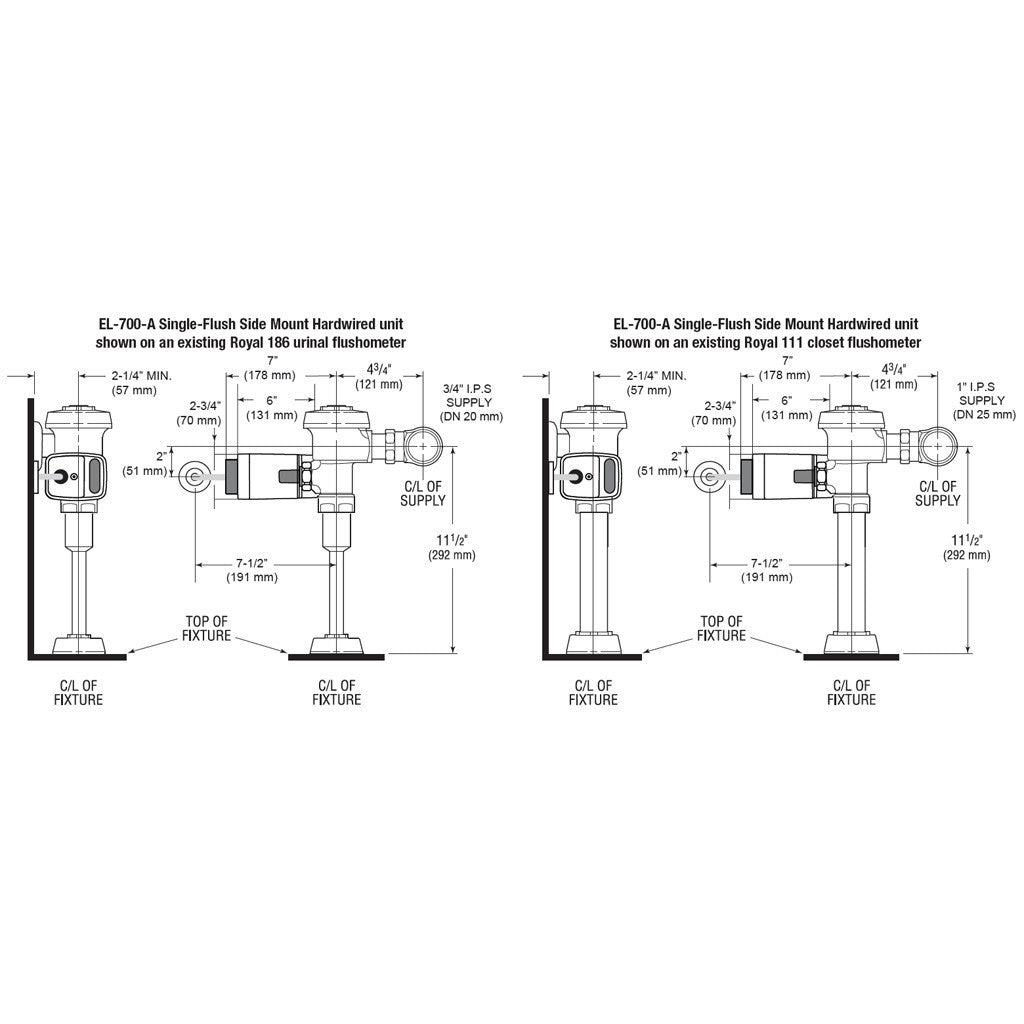

• The Side Mount units can be used on standard rough-in Sloan, Royal and Regal flushometers.

Compliances & Certifications:
ADA Compliant, BREEAM Water Credit, cUPC Certified, Green Globes Water Credit, UL Certified

Resources:
• View Sloan 3345100 Spec Sheet
• View Battery Operated Version Part #85606
• Sloan Retrofit Kit Flushometer Comparison Guide
