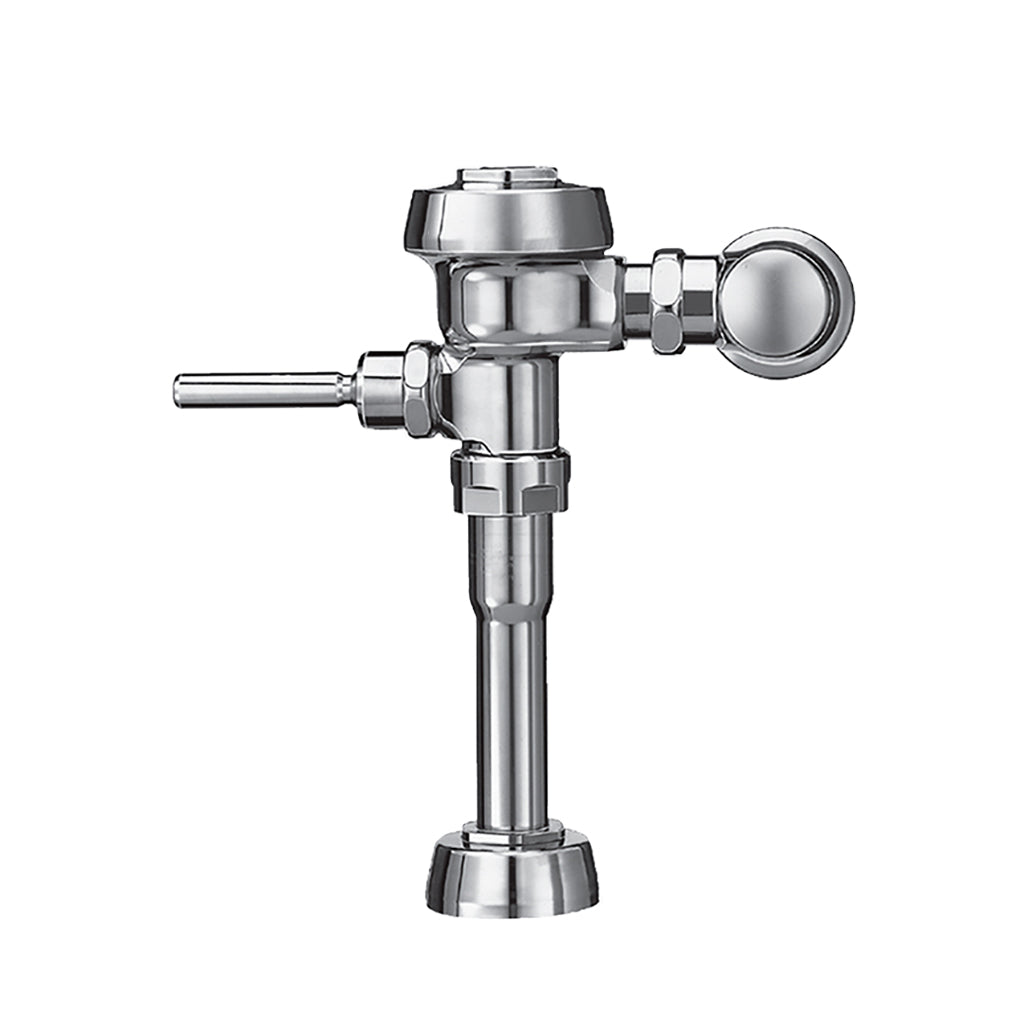

Royal Flushometer 1.5 GPF for Urinal with Saniguard Handle

Part Number: #20304
Sloan Model Number: ROYAL 180-1.5
Sloan Code Number: 3912455
Manufacturer: Sloan

This 1.5 GPF Royal Single Flush Urinal Flushometer is from Sloan. Features a Saniguard® handle. This unit has a polished chrome finish. Sloan’s model number ROYAL 180-1.5, code number 3912455.

Specifications:
• Flush Volume: 1.5 GPF
• Finish: Polished Chrome
• Valve: Diaphragm
• Valve Body Material: Semi-red Brass
• Fixture Type: Urinal
• Fixture Connection: Top Spud
• Rough-In Dimension: 11-1/2"
• Spud Coupling: 1-1/4"
• Supply Pipe: 1"
• Handle: Saniguard®

Features:
• PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
• Sweat Solder Adapter with Cover Tube & Cast Wall Flange with Set Screw
• Non-Hold-Open Handle, Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
• Diaphragm, Handle Packing and Vacuum Breaker to be molded from PERMEX® Rubber Compound for Chloramine Resistance
• ADA Compliant Metal Oscillating Non-Hold-Open Handle
• 1" I.P.S. Screwdriver Bak-Chek® Angle Stop with Free Spinning Vandal Resistant Stop Cap

Compliances & Certifications:
ADA Compliant, BAA Compliant, BABAA Compliant, cUPC Certified, Made in the USA, UPC Certified

Resources:
• Sloan 3912455 Spec Sheet

Do you have the tools needed to install your new flush valve? View our Flushometer Tool Guide and discover which tools you need.
