Royal Flushometer 3.5 GPF Speciality Rough Brass with 9-3/4 LDIM for Closet
Part Number: #19379
Sloan Model Number: ROYAL 154-3.5-9-3/4-LDIM
Sloan Code Number: 3011770
Manufacturer: Sloan

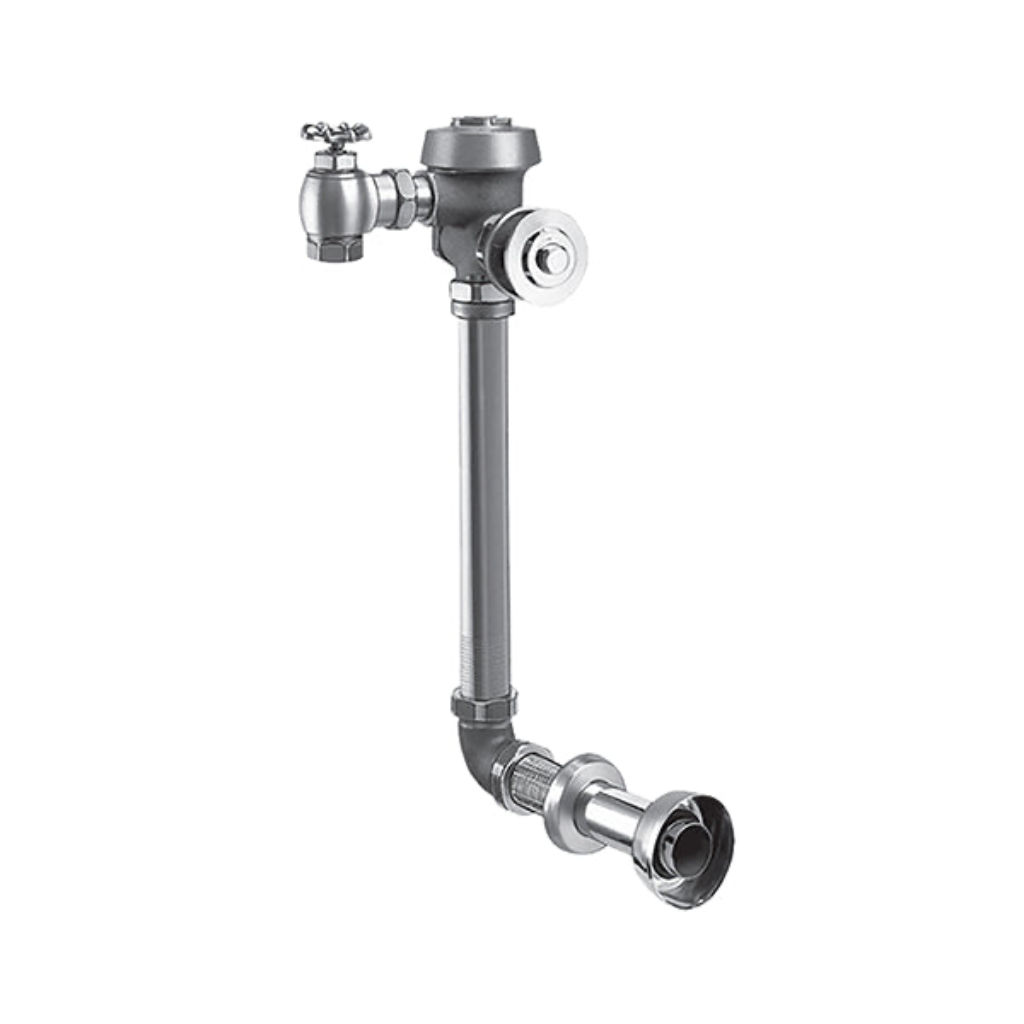

This 3.5 GPF Concealed Royal Closet Flushometer is from Sloan. It is a manual hydraulic flushometer with a 9-3/4-inch "L" Dimension. Fixture has a rough brass finish. Sloan model number ROYAL 154-3.5-9-3/4-LDIM, code number 3011770.
Specs:
• Flush Volume: 3.5 GPF
• Finish: Rough Brass
• Valve: Diaphragm
• Valve Body Material: Semi-red Brass
• Fixture Type: Water Closet
• Fixture Connection: Rear Spud
• Rough-In Dimension: 24"
• Spud Coupling: 1-1/2"
• Supply Pipe: 1"
• L Dimension: 9-3/4"
Features:
• Flush volumes start as low as 1.28 GPF
• Water conservation is aided by the ADA-compliant, non-hold-open handle, which prevents toilet from exceeding intended flush volume
• Flush accuracy is controlled by CID™ technology, also enhancing water efficiency
• Integrity of the product is maintained with the vandal-resistant stop cap
• Durability is facilitated with high copper, low zinc brass castings for dezincification resistance
• Adjustable tailpiece
• PERMEX® synthetic rubber diaphragm with Dual Filtered Fixed Bypass
• Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
• Valve shall be in compliance to the applicable sections of ASSE 1037.
Compliances & Certifications:
BAA Compliant, BABAA Compliant, Made in the USA, UPC Certified
Resources:
• Sloan 3011770 Spec Sheet
Do you have the tools needed to install your new flush valve? View our Flushometer Tool Guide and discover which tools you need.
