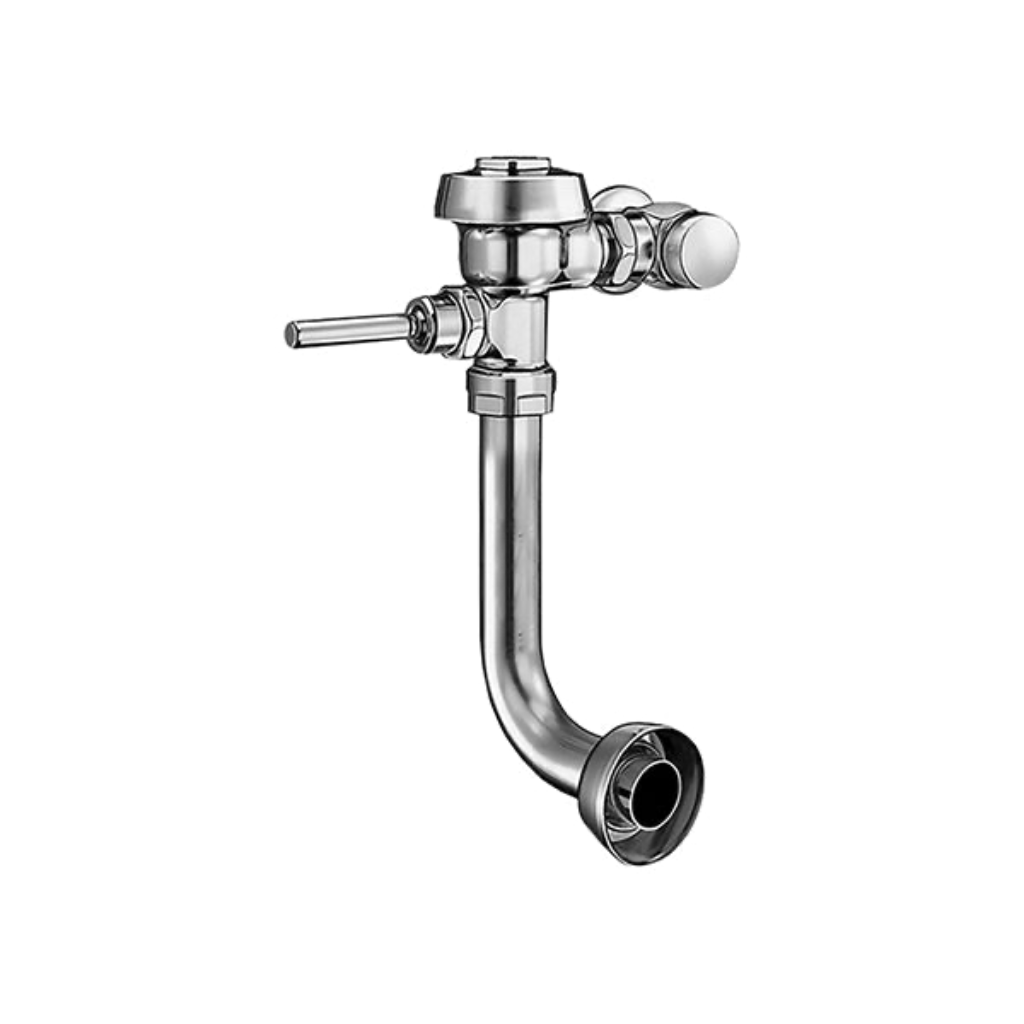

Royal Flushometer 3.5 GPF with 1-1/2 inch Back Spud and Angle Stop Extended Bumper for Closet

Part Number: #19085
Sloan Model Number: ROYAL 120-3.5-YG
Sloan Code Number: 3010807
Manufacturer: Sloan

This 3.5 GPF Exposed Royal Closet Flushometer with a 1-1/2-inch Back Spud is from Sloan. It is a single flush, manual flushometer with an Angle Stop Extended Bumper. Fixture has a polished chrome finish. Sloan model number ROYAL 120-3.5-YG, code number 3010807.

Specs:
• Flush Volume: 3.5 GPF
• Finish: Polished Chrome
• Valve: Diaphragm
• Valve Body Material: Semi-red Brass
• Fixture Type: Water Closet
• Fixture Connection: Rear Spud
• Rough-In Dimension: 11-1/2"
• Spud Coupling: 1-1/2"
• Supply Pipe: 1"
• Bumper: Angle Stop Extended

Features:
• Water conservation is aided by the ADA-compliant, non-hold-open handle, which prevents toilet from exceeding intended flush volume
• Flush accuracy is controlled by CID™ technology, also enhancing water efficiency
• Integrity of the product is maintained with the vandal-resistant stop cap
• Durability is facilitated with high copper, low zinc brass castings for dezincification resistance
• Adjustable tailpiece
• PERMEX™ synthetic rubber diaphragm with Dual Filtered Fixed Bypass
• Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
• Valve shall be in compliance to the applicable sections of ASSE 1037

Compliances & Certifications:
ADA Compliant, BAA Compliant, BABAA Compliant, Made in the USA, UPC Certified

Resources:
• Sloan 3010807 Spec Sheet

Do you have the tools needed to install your new flush valve? View our Flushometer Tool Guide and discover which tools you need.
