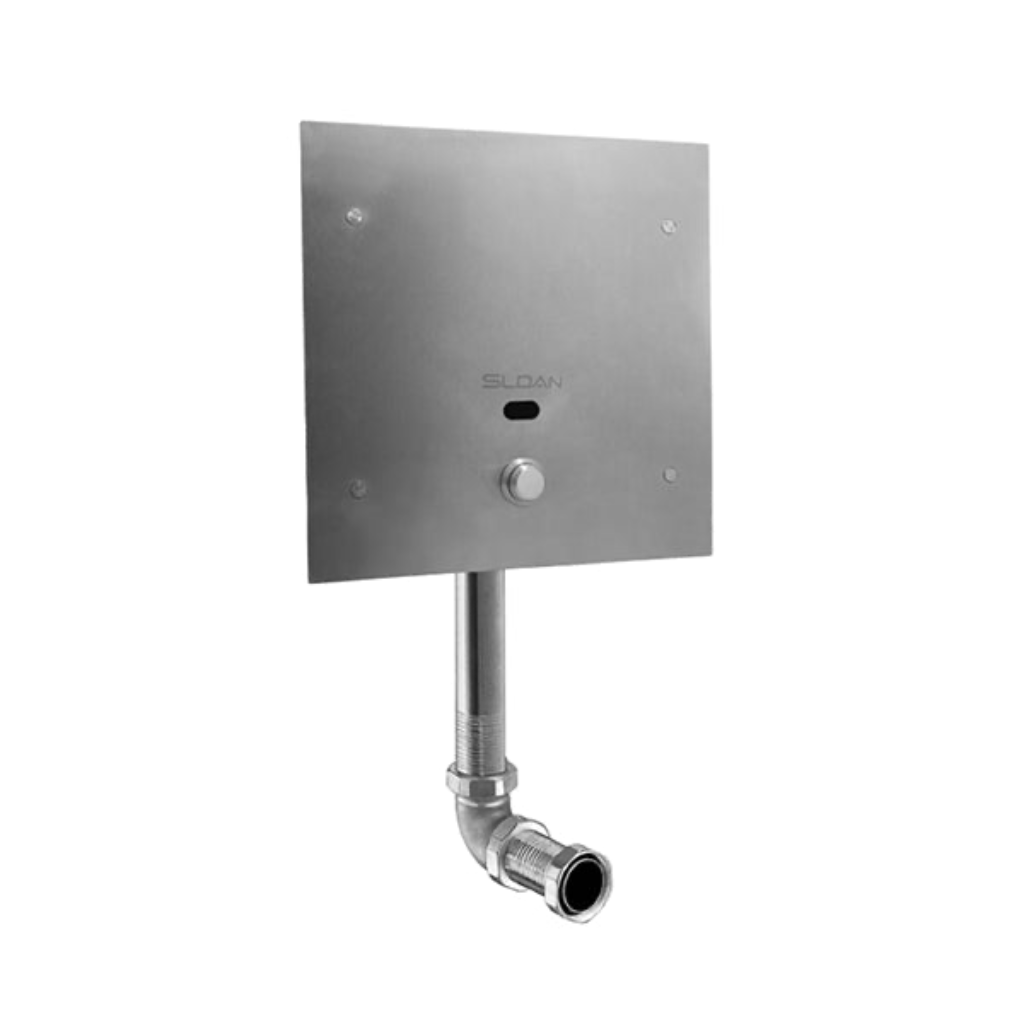

Sloan ESS TMO Concealed Sensor 1.6 GPF Flushometer for Closet (Hardwired)

Part Number: #19672
Sloan Model Number: SLOAN 152 ESS-1.6-TMO-SWB-HW
Sloan Code Number: 3771626
Manufacturer: Sloan

This 1.6 GPF Concealed Sloan Sensor Hardwired Closet Flushometer is from Sloan. It is a specialty sensor flushometer with an "L" Dimension range of 2" to 10-3/4". The fixture has a rough brass finish. This unit has a true mechanical override. Sloan model number SLOAN 152 ESS-1.6-TMO-SWB-HW, code number 3771626.

Specifications:
• Flush Volume: 1.6 GPF
• Finish: Rough Brass
• Power Type: Hardwired
• Valve: Diaphragm
• Valve Body Material: Semi-red Brass
• Fixture Type: Water Closet
• Fixture Connection: Rear Spud
• Rough-In Dimension: 14-1/2"
• Spud Coupling: 1-1/2"
• Supply Pipe: 1"
• L Dimension: 2" – 10-3/4"
• Override: True Mechanical
• Wall Box: Small
• Voltage: 24V

Features:
• Handle Packing, Main Seat, Stop Seat and Vacuum Breaker Molded from PERMEX® Rubber Compound for Chloramine resistance
• User friendly three (3) second Flush Delay
• Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
• OPTIMA® EL-1500 Self-Adaptive Infrared Sensor with Indicator Light
• 13-1/2" x 13-1/2" Wall Box with Stainless Steel Access Panel and Vandal Resistant Screws
• Courtesy Flush® Non-Hold-Open True Mechanical Override
• Wall Box with Stainless Steel Access Panel and Vandal Resistant Screws
• High Back Pressure Vacuum Breaker Flush Connection and Spud Coupling for 1-1/2" Concealed Back Spud
• 1" I.P.S. Wheel Handle Bak-Chek® Angle Stop
• High Chloramine Resistant PERMEX® Synthetic Rubber Diaphragm with Linear Filtered Bypass and Vortex Cleansing Action™

Compliances & Certifications:
BAA Compliant, BABAA Compliant, UL Certified, UPC Certified

Resources:
• Sloan 3771626 Spec Sheet

Do you have the tools needed to install your new flush valve? View our Flushometer Tool Guide and discover which tools you need.
