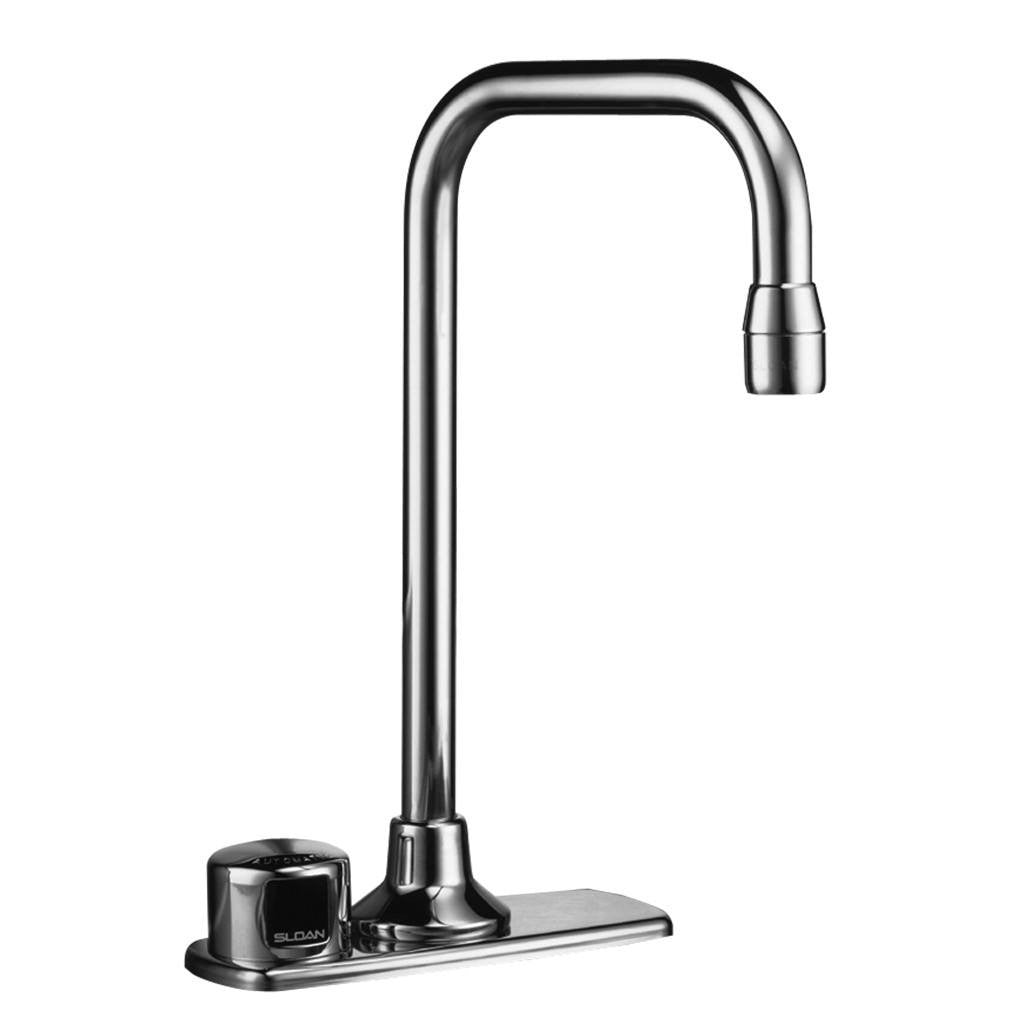

Optima Bluetooth Gooseneck Faucet 2.2 GPM with 4” Centerset (Box Transformer)
Part Number: #87356
Sloan Model Number: ETF-770-4-BOX-TEE-CP-2.2GPM-LAM-IR-BT-FCT
Sloan Code Number: 3365429BT
Manufacturer: Sloan
This hardwired, square-gooseneck Bluetooth faucet is by Sloan. It operates with a box transformer power supply. The faucet has a flow rate of 2.2 GPM with a laminar spray. This faucet has a 4-inch centerset deck mounting style with a 4-inch trim plate. It utilizes an infrared sensor to activate. Newly updated by Sloan, this faucet has Bluetooth technology. All of the below deck installation is now housed in a singular control box that can be controlled remotely (via Bluetooth) through the Sloan Connect App on a smartphone. This faucet has a polished chrome finish on the cast brass body. Includes a 24VAC box transformer, quick-connect fittings, twist-off/shut-off solenoid assembly, removable battery cartridge, and flexible power supply. Sloan ETF-770 style faucet. Learn more about all of the improvements included in the Bluetooth update by Sloan in our Bluetooth Optima Faucets blog article.
Specifications:
- Flow Rate: 2.2 GPM
- Spray Type: Laminar
- Sensor: Infrared (IR)
- Mounting: Deck Mounted, 4-inch Centerset
- Trim Plate: 4-inch
- Power Supply: Box Transformer
- Temperature Mixer: Back-Check Tee
- Finish: Polished Chrome
- Self-Adjustment Range: 0-inch
- Sensor Range: 0-inch
- Factory Default Timeout: 30s
- Factory Default GPC: 1.1
- Self-Adjustment Range: 0-inches
- Sensor Range: 0-inches
Features:
- Cast Brass Spout
- Quick Connect Fittings
- Integrated Water Shut-off
- Wireless Settings Adjustment
- On-Demand or Metered Activation
- Hygienic Line Flush
- Water Usage and Battery Strength Reporting
- Self-Adapting Sensor
Compliancies & Certifications:
ADA Compliant, ASME A112.18.1 Compliant, cUPC Certified, cUPC Low Lead Compliant, Proposition 65, TAS, UL Certified, UPC Certified, UPC Low Lead Compliant
Resources:
• Sloan Optima 3365429BT Bluetooth Faucet Spec Sheet
• EBF-775/ETF-770 Parts Breakdown
