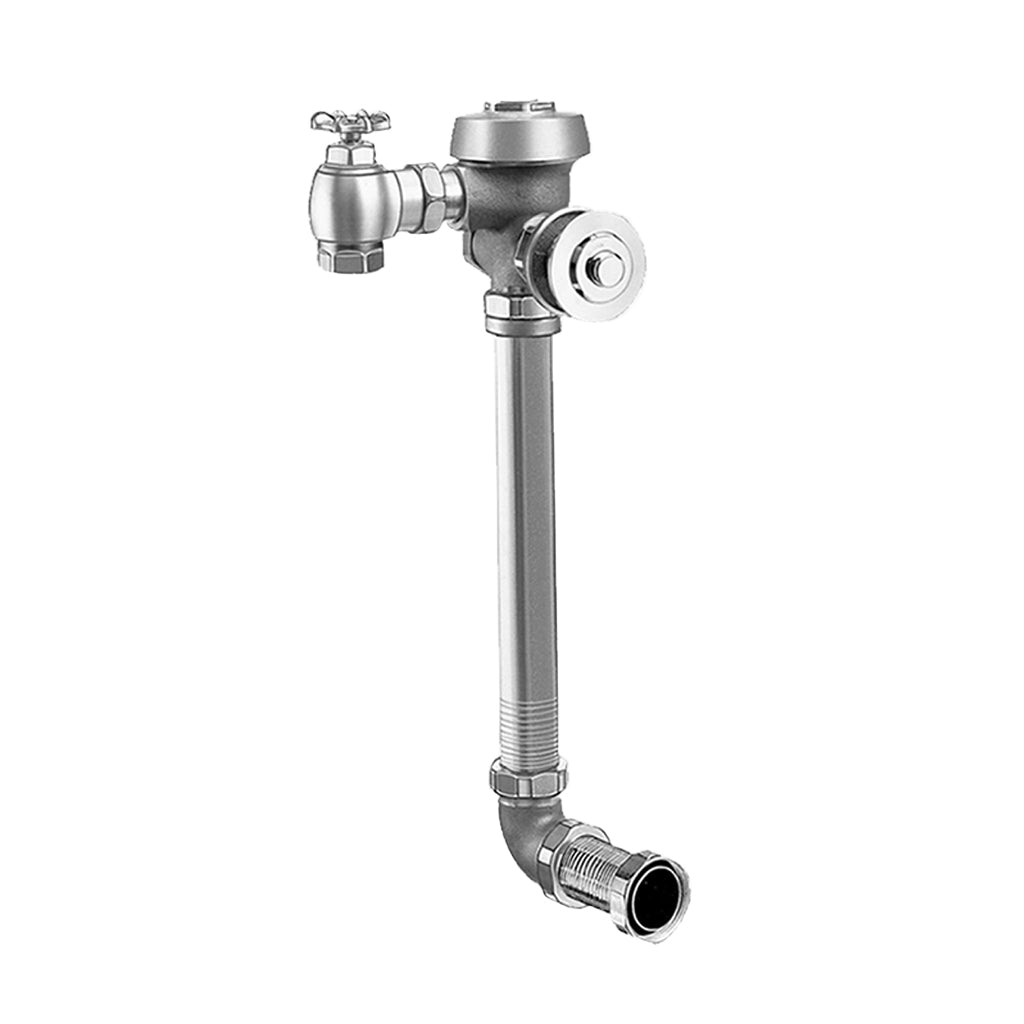

Sloan Flushometer 3.5 GPF Specialty Rough Brass with 10-3/4" LDIM for Closet

Part Number: #47555
Sloan Model Number: SLOAN 152-3.5-RB-10-3/4-LDIM
Sloan Code Number: 3781641
Manufacturer: Sloan

This 3.5 GPF Concealed Sloan Closet Flushometer is from Sloan. It is a manual hydraulic flushometer with a 10-3/4-inch "L" Dimension. This flushometer unit has a rough brass finish. Sloan’s model number SLOAN 152-3.5-RB-10-3/4-LDIM, code number 3781641.

Specifications:
• Flush Volume: 3.5 GPF
• Finish: Rough Brass
• Valve: Diaphragm
• Valve Body Material: Semi-red Brass
• Fixture Type: Water Closet
• Fixture Connection: Rear Spud
• Rough-In Dimension: 24"
• Spud Coupling: 1-1/2"
• Supply Pipe: 1"
• L Dimension: 10-3/4"

Features:
• Flush volumes start as low as 1.28 GPF
• Water conservation is aided by the ADA-compliant, non-hold-open handle
• Flush accuracy is controlled by CID™ technology, also enhancing water efficiency
• Durability is facilitated with high copper, low zinc brass castings for dezincification resistance
• Adjustable tailpiece to accommodate different height requirements
• High chloramine resistant PERMEX® Synthetic Rubber Diaphragm with Linear Filtered Bypass and Vortex Cleansing Action
• Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
• Valve shall be in compliance to the applicable sections of ASSE 1037

Compliances & Certifications:
BAA Compliant, IAPMO, MadebUSA, UPC Certified

Resources:
• Sloan 3781641 Spec Sheet

Do you have the tools needed to install your new flush valve? View our Flushometer Tool Guide and discover which tools you need.
