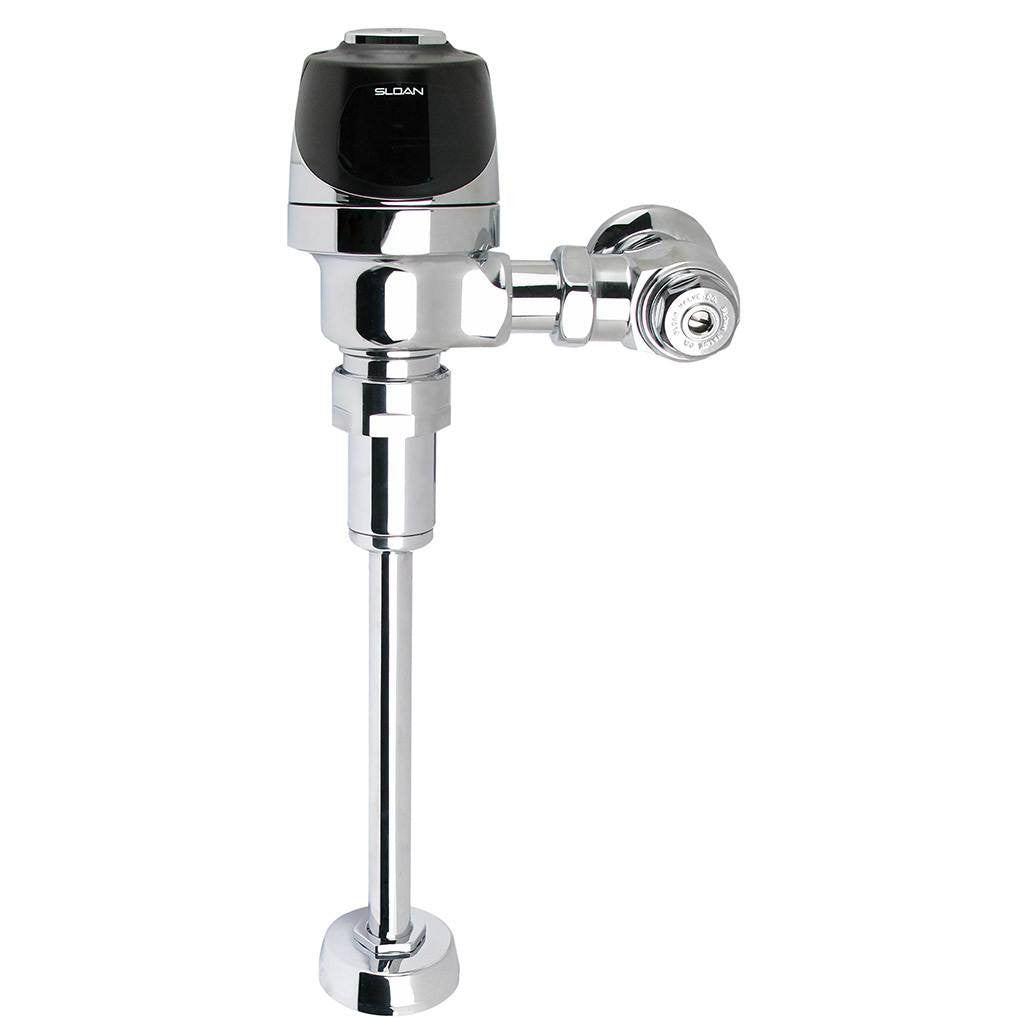

G2 Handsfree Flushometer 1.0 GPF for Urinal
Part Number: #08404
Sloan Model Number: G2 8186-1.0
Sloan Code Number: 3250401
1.0 GPF, Polished Chrome Finish, Fixture Connection Top Spud, Single Flush, Battery, G2 Exposed Sensor Urinal Flushometer.
• Flush Volume: 1.0 GPF
• Finish: Polished Chrome
• Power Type: Battery
• Battery Life: 6 years
• Valve: Diaphragm
• Valve Body Material: Semi-red Brass
• Fixture Type: Urinal
• Fixture Connection: Top Spud

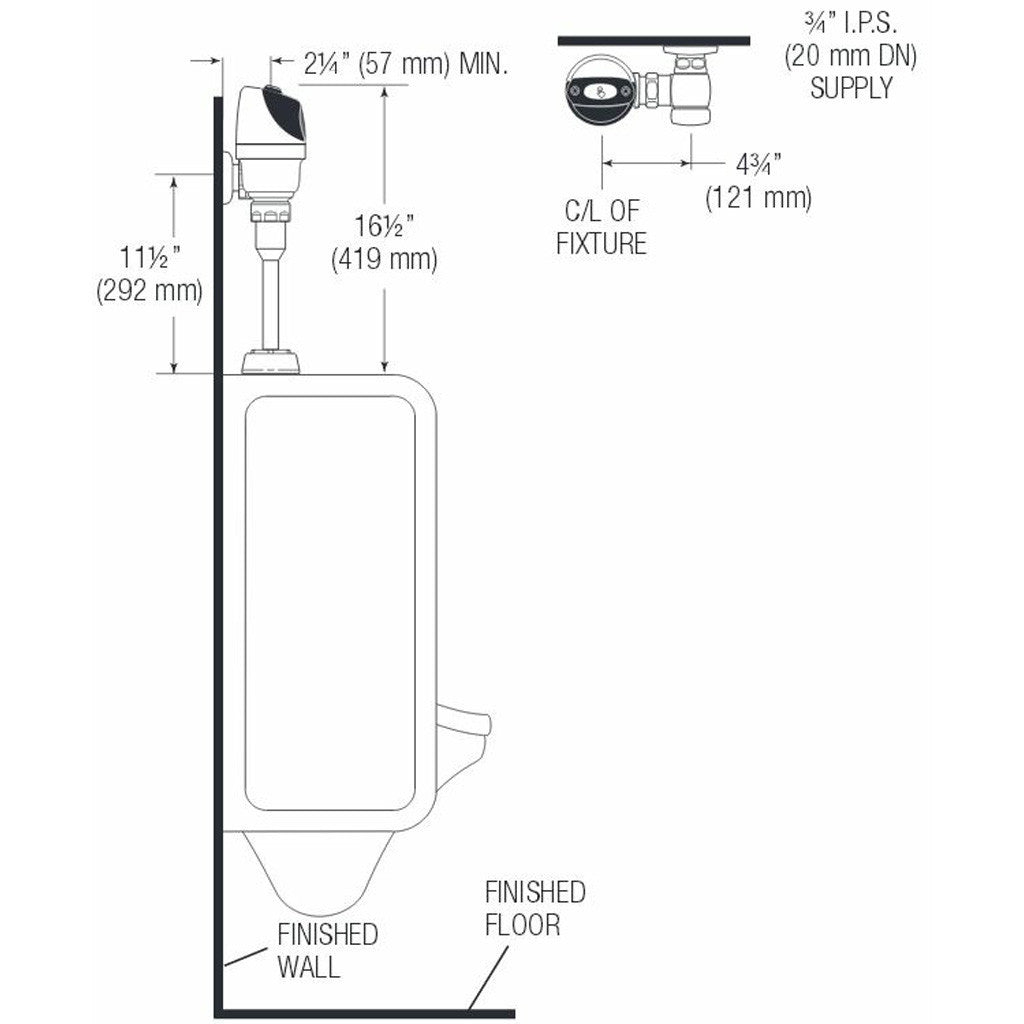

• Rough-In Dimension: 11 1⁄2"
• Spud Coupling: 3/4"
• Supply Pipe: 3/4"
• Sweat Solder Adapter with Cover Tube and Cast Set Screw Wall Flange
• Flex Tube Diaphragm designed for improved life and reduced maintenance
• Infrared Sensor with Multiple-focused, Lobular Sensing Fields for high and low target detection
• “Low Battery” Flashing LED
• Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
• Handle Packing, Main Seat, Stop Seat and Vacuum Breaker Molded from PERMEX® Rubber Compound for Chloramine resistance
• Engineered Metal Cover with replaceable Lens Window
• Four (4) Size AA alkaline Batteries included
• Courtesy Flush® Override Button (optional)
• 3/4” IPS screwdriver Bak-Chek® angle stop with vandal resistant stop cap
• PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
Compliances & Certifications:
ADA Compliant, cUPC Certified, BAA Compliant
Do you have the tools needed to install your new flush valve? View our Flushometer Tool Guide and discover which tools you need.
