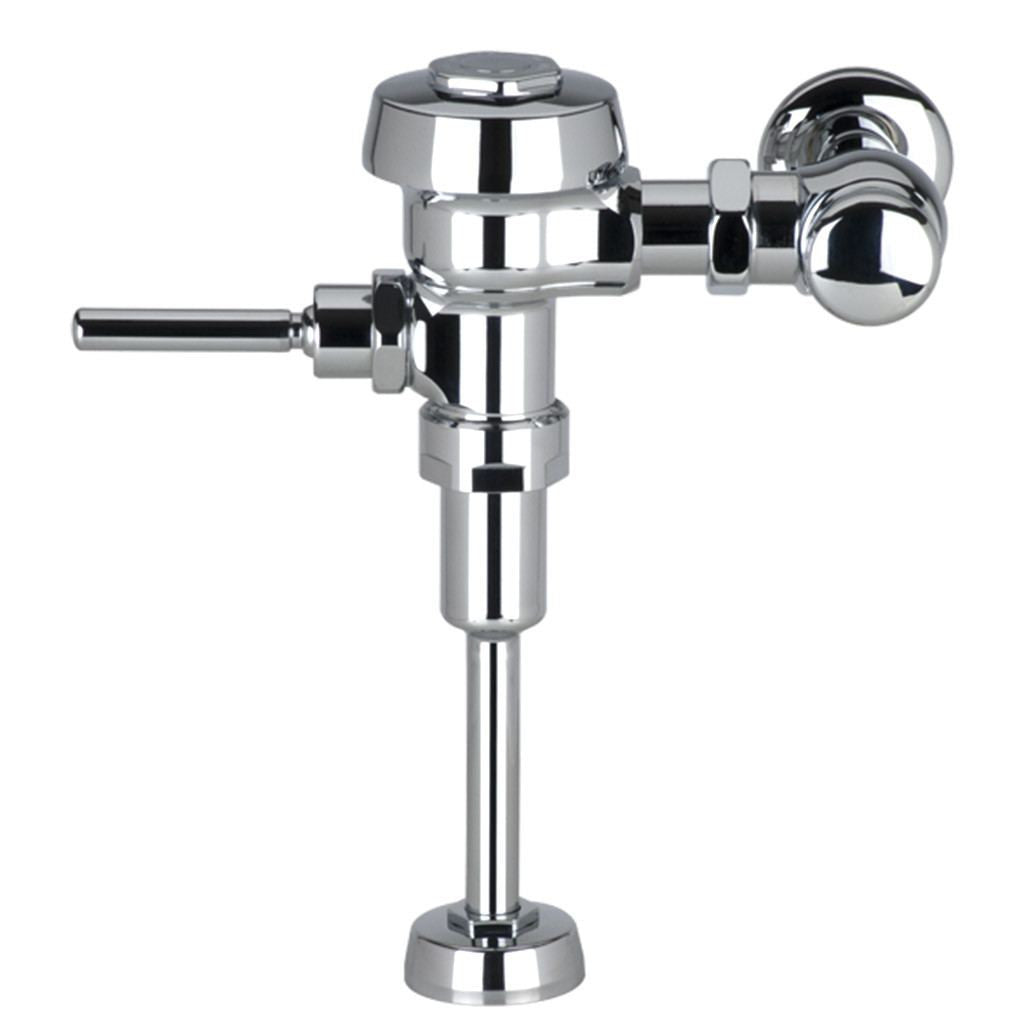

Royal Flushometer 0.125 GPF for Urinal

$160.03

85400

Part Number: #85400
Sloan Model Number: ROYAL 186-0.125-DBP
Sloan Code Number: 3912633
Manufacturer: Sloan


Exposed Urinal Flushometer for 3/4” top spud urinals. Features: 3/4" Vacuum Breaker 3/4" Stop. 0.125 GPF, Dual-Filtered Bypass, Polished Chrome Finish, Fixture Connection Top Spud, Single Flush, Royal® Exposed Manual Urinal Flushometer.



Specifications:
• Flush Volume: 0.125 GPF
Finish: Polished Chrome
Valve: Diaphragm
Bypass: Dual-Filtered Bypass
Valve Body Material: Semi-red Brass
Fixture Type: Urinal
Fixture Connection: Top Spud

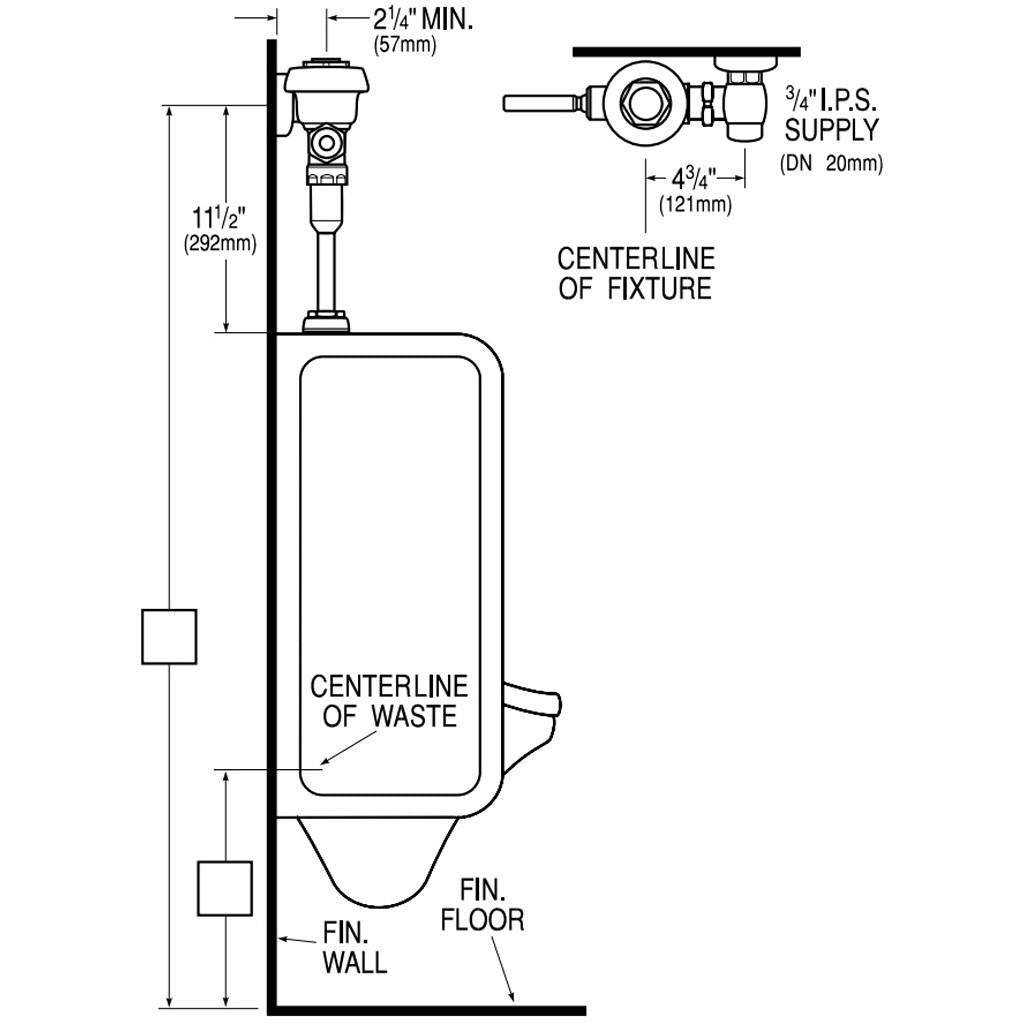

Rough-In Dimension: 11-1⁄2"
Spud Coupling: 3⁄4"
Supply Pipe: 3⁄4"



Features:
• PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
• Sweat Solder Adapter with Cover Tube & Cast Wall Flange with Set Screw
Non-Hold-Open Handle, Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
Diaphragm, Handle Packing and Vacuum Breaker to be molded from PERMEX®
• Rubber Compound for Chloramine Resistance ADA Compliant Metal Oscillating Non-Hold-Open Handle
• 3⁄4” I.P.S. Screwdriver Bak-Chek® Angle Stop w/ Free Spinning Vandal Resistant Stop Cap



Compliances & Certifications:
ADA Compliant, BAA Compliant, BREEAM Materials Credit, BREEAM Water Credit, Carbon Neutral, cUPC Certified, cUPC Green Certified, EPD, Green Globes Materials & Resources Credit, Green Globes Water Credit, HPD, LBC Credit, LEED Materials & Resources EPD Credit, LEED Materials & Resources HPD Credit, LEED V4 Water Efficiency Credit, Satisfies LEED Credits, WaterSense Listed, WELL Building Standard


Resources:
• Sloan 3912633 Spec Sheet
Royal Flushometer Parts Breakdown and Troubleshooting Guide
