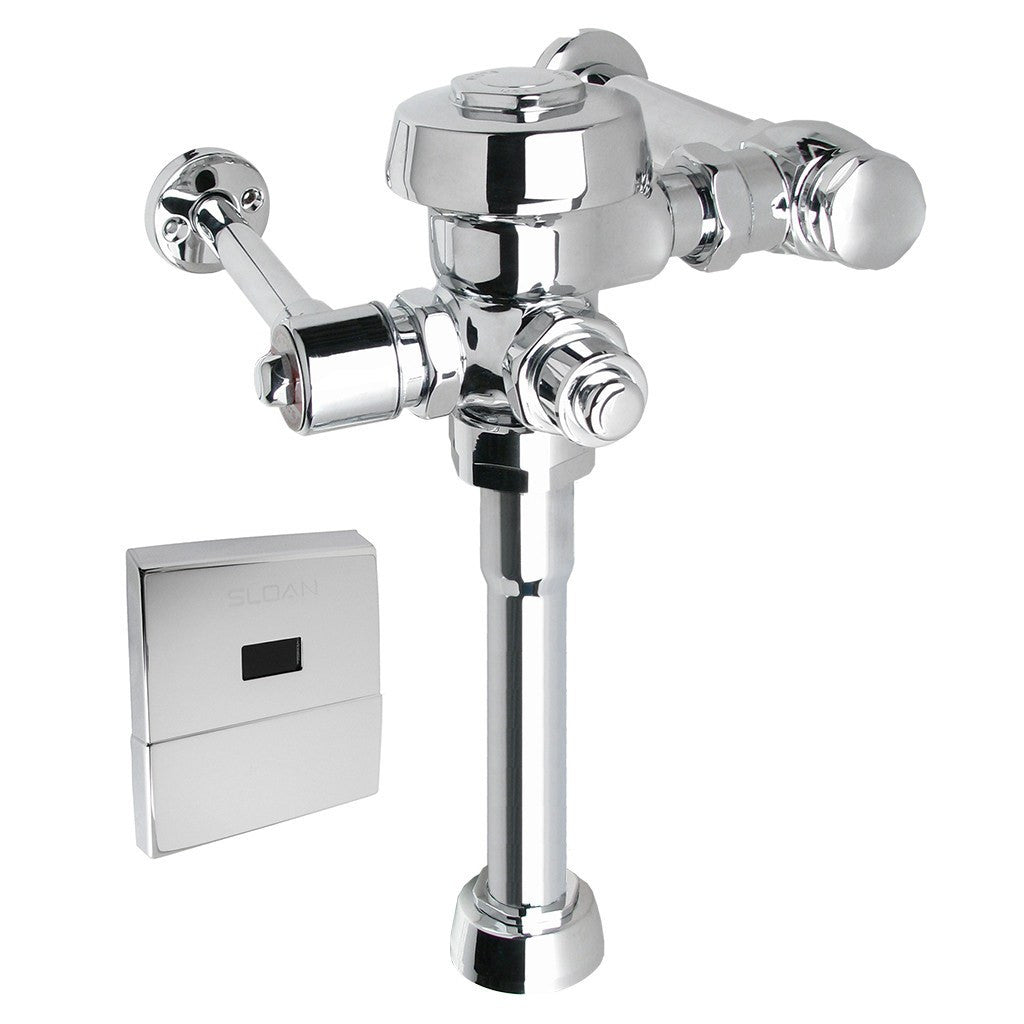

Royal ESS TMO Sensor Flushometer 1.0 GPF for Urinal

$611.33

83404

Part Number: #83404
Sloan Model Number: ROYAL 180 ESS-1.0-TMO-HW
Sloan Code Number: 3452430
Manufacturer: Sloan

1-1/4" Vacuum Breaker 1" Stop

Specifications:
1.0 GPF Exposed, Diaphragm Type, Chrome Plated Urinal Flushometer with the following features:
• PERMEX™ Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
• OPTIMA® EL-1500 Self-Adaptive Infrared Sensor with Indicator Light
• “Walk By” Delay of Eight (8) Seconds Prevents Unintentional Flushes
• User Friendly Three (3) Second Flush Delay
• Non-Hold-Open True Mechanical Override
• Non-Hold-Open Integral Solenoid Operator
• Die Cast Sensor Cover Plate with no visible Fasteners (for 2-gang Electrical Box)
• 1" I.P.S. Screwdriver Bak-Chek® Angle Stop
• Free Spinning Vandal Resistant Stop Cap
• Adjustable Tailpiece
• High Back Pressure Vacuum Breaker Flush Connection with One-Piece Bottom Hex Coupling Nut, Spud Coupling and Flange for 1-1/4" Top Spud
• Sweat Solder Adapter with Cover Tube and Cast Wall Flange with Set Screw
• High Copper, Low Zinc Brass Castings for Dezincification Resistance
• Non-Hold-Open Integral Solenoid Operator, Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
• Flush Accuracy Controlled by CID™ Technology
• Diaphragm, Stop Seat and Vacuum Breaker molded from PERMEX™ Rubber Compound for Chloramine Resistance
• 24 volt system

Resources:
• View Sloan 3452430 Spec Sheet



Do you have the tools needed to install your new flush valve? View our Flushometer Tool Guide and discover which tools you need.
