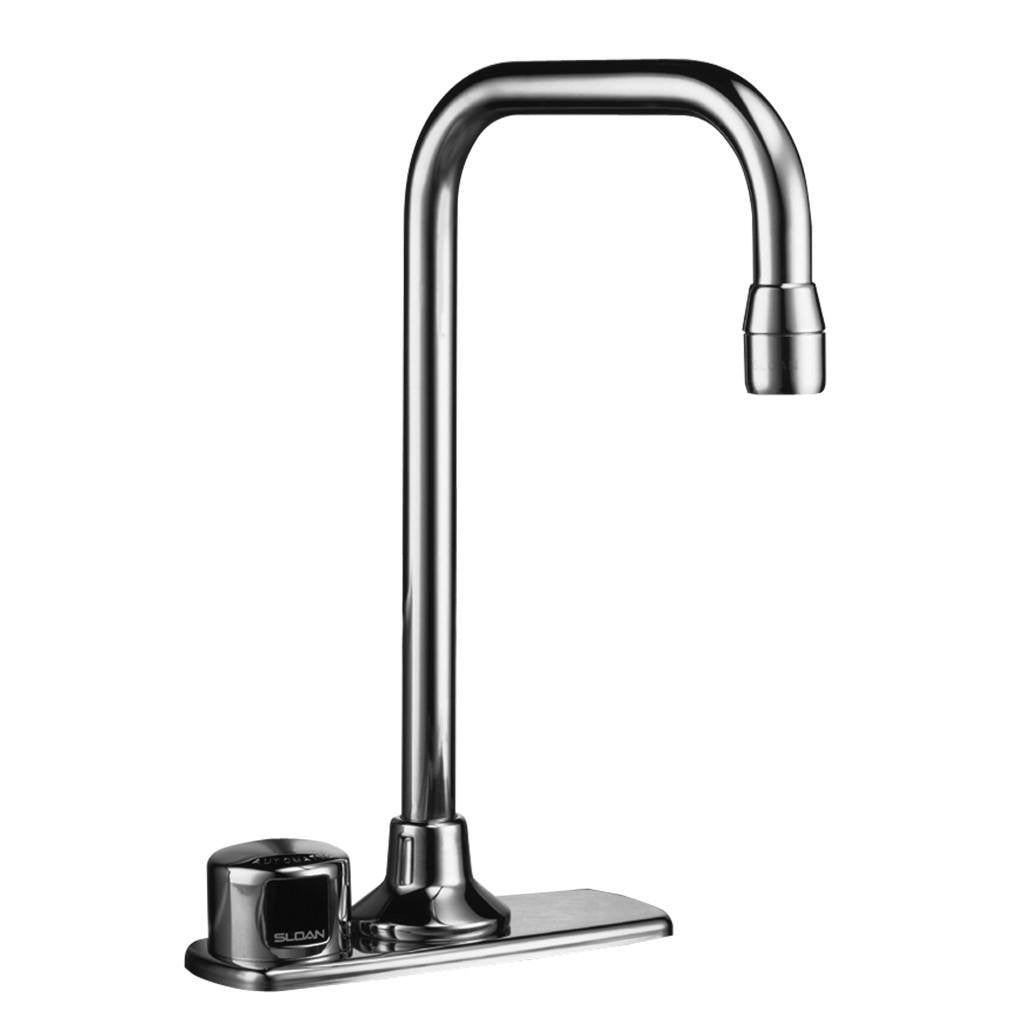

Optima On-Q Faucet w/ Plug-in Transformer 4" Center - 2.2 GPM

$459.78

80855

Part Number: #80855
Sloan Model Number: ETF-770-4-PLG-TEE-CP-2.2GPM-LAM-IR-BT-FCT
Sloan Code Number: 3365428BT
Manufacturer: Sloan





This hardwired-powered bluetooth faucet is by Sloan. Faucet has a flow rate of 2.2 GPM with a laminar spray. This faucet has a 4-inch centerset deck mounting type with a 4-inch trim plate. It utilizes an infrared sensor to activate. With the faucet having bluetooth technology all of the below deck installation is now housed in a singular control box that can be controlled remotely (via Bluetooth) through the Sloan Connect App on a smartphone. Unit has a polished chrome finish on the cast brass body. Includes a 6VDC plug adapter, quick-connect fittings, twist-off/shut-off solenoid assembly, removable battery cartridge, and flexible power supply. Sloan ETF-770 style faucet. Learn more about all of the improvements included in the Bluetooth update by Sloan in our Bluetooth Optima Faucets blog article.


Specifications:

  • Flow Rate: 2.2 GPM
  • Spray Type: Laminar
  • Sensor: Infrared (IR)
  • Mounting: Deck Mounted, 4-inch Centerset
  • Trim Plate: 4-inch
  • Power Supply: Plug Adapter
  • Temperature Mixer: Back-Check Tee
  • Finish: Polished Chrome
  • Self-Adjustment Range: 1–14 inches
  • Sensor Range: 8–10 inches
  • Factory Default Timeout: 30s
  • Factory Default GPC: 1.1


Features:

  • Cast Brass Spout
  • Quick Connect Fittings
  • Integrated Water Shut-off
  • Wireless Settings Adjustment
  • On-Demand or Metered Activation
  • Hygienic Line Flush
  • Water Usage and Battery Strength Reporting
  • Self-Adapting Sensor


Compliancies & Certifications:

ADA Compliant, ASME A112.18.1 Compliant, cUPC Certified, cUPC Low Lead Compliant, Proposition 65, TAS, UL Certified, UPC Certified, UPC Low Lead Compliant


Resources:
Sloan Optima 3365428BT Bluetooth Faucet Spec Sheet
